Part Details for OPA1622IDRCT by Texas Instruments
Results Overview of OPA1622IDRCT by Texas Instruments
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (2 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
OPA1622IDRCT Information
OPA1622IDRCT by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| OPA1622IDRCT | Texas Instruments | SoundPlus™ Audio Operational Amplifier with High Performance, Low THD+N and Bipolar Input 10-VSON -40 to 125 |
Price & Stock for OPA1622IDRCT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-43695-1-ND
|
DigiKey | IC AUDIO 2 CIRCUIT 10VSON Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
946 In Stock |
|
$5.1433 / $8.7600 | Buy Now |
|
DISTI #
595-OPA1622IDRCT
|
Mouser Electronics | Audio Amplifiers SoundPlus Audio Ope rational Amplifier w A 595-OPA1622IDRCR RoHS: Compliant | 371 |
|
$4.6800 / $8.0400 | Buy Now |
|
|
Bristol Electronics | Audio Amp Speaker 2-CH Stereo Class-AB 10-Pin VSON EP T/R | 3 |
|
RFQ | |
|
DISTI #
OPA1622IDRCT
|
TME | IC: audio amplifier, Pout: 100mW, Ch: 2, VSON10, ±2÷18VDC,4÷36VDC Min Qty: 1 | 0 |
|
$5.2300 / $7.6000 | RFQ |
|
|
Ameya Holding Limited | IC OPAMP AUDIO 10VSON | 28190 |
|
RFQ | |
|
|
Chip Stock | 2500 |
|
RFQ | ||
|
|
LCSC | 2.6mA 2-Channel 142mW232 VSON-10(3x3) Instrumentation Op Amps Buffer Amps RoHS | 16 |
|
$2.8728 / $3.0372 | Buy Now |
|
|
Vyrian | Operational Amplifier, 2 Func, 500uV Offset-Max, PDSO10 | 7067 |
|
RFQ |
US Tariff Estimator: OPA1622IDRCT by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for OPA1622IDRCT
OPA1622IDRCT CAD Models
-

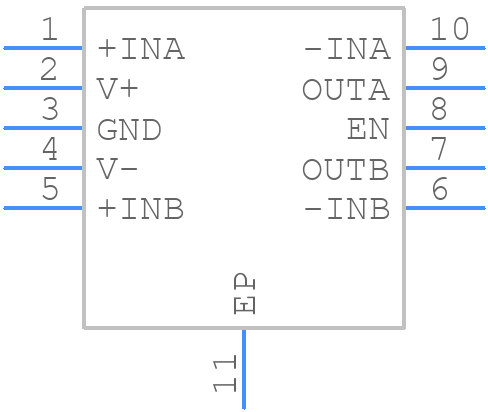

Part Symbol
-
Footprint
-

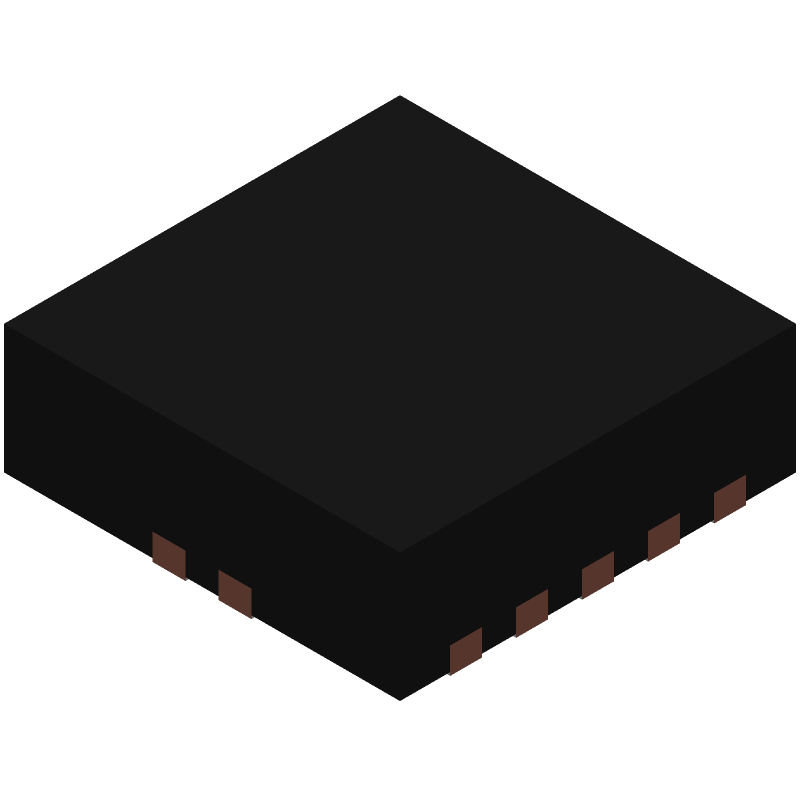

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
OPA1622IDRCT Part Data Attributes
|
|
OPA1622IDRCT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
OPA1622IDRCT
Texas Instruments
Operational Amplifier, 2 Func, 500uV Offset-Max, BICMOS, PDSO10
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 2.2 µA | |
| Bias Current-Max (IIB) @25C | 2 µA | |
| Common-mode Reject Ratio-Min | 110 Db | |
| Common-mode Reject Ratio-Nom | 127 Db | |
| Frequency Compensation | Yes | |
| Input Offset Current-Max (IIO) | 0.08 µA | |
| Input Offset Voltage-Max | 500 µV | |
| JESD-30 Code | S-PDSO-N10 | |
| JESD-609 Code | e4 | |
| Length | 3 Mm | |
| Low-Bias | No | |
| Low-Offset | Yes | |
| Micropower | No | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -20 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 2 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVSON | |
| Package Shape | Square | |
| Package Style | Small Outline, Heat Sink/Slug, Very Thin Profile | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Seated Height-Max | 1 Mm | |
| Slew Rate-Nom | 10 V/Us | |
| Supply Current-Max | 6 Ma | |
| Supply Voltage Limit-Max | 20 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Bicmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 32000 | |
| Voltage Gain-Min | 1000000 | |
| Wideband | No | |
| Width | 3 Mm |
Alternate Parts for OPA1622IDRCT
This table gives cross-reference parts and alternative options found for OPA1622IDRCT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of OPA1622IDRCT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| OPA1622IDRCR | Texas Instruments | $2.9884 | Operational Amplifier, 2 Func, 500uV Offset-Max, BICMOS, PDSO10 | OPA1622IDRCT vs OPA1622IDRCR |
| TP5592-SR | 3peak Incorporated | Check for Price | Operational Amplifier, 2 Func, 20uV Offset-Max, PDSO8 | OPA1622IDRCT vs TP5592-SR |
OPA1622IDRCT Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the OPA1622IDRCT is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
-
To ensure stability, it's recommended to use a gain resistor (RG) between 1kΩ to 10kΩ, and a feedback capacitor (CF) between 10pF to 100pF. Additionally, the layout should be designed to minimize parasitic capacitance and inductance.
-
The recommended input impedance for the OPA1622IDRCT is between 1kΩ to 100kΩ. This ensures that the input signal is not attenuated and the op-amp can operate within its specified bandwidth.
-
Yes, the OPA1622IDRCT can be used in a single-supply configuration. However, the input common-mode voltage range is limited to VCC-1.5V to VCC+0.5V. It's recommended to use a voltage divider or a level-shifting circuit to ensure the input signal is within the specified range.
-
The OPA1622IDRCT has a high immunity to electromagnetic interference (EMI) due to its internal shielding and guard rings. However, it's still recommended to follow good PCB design practices, such as using a ground plane, minimizing trace lengths, and using EMI filters if necessary.
