Part Details for OPA2652U by Texas Instruments
Results Overview of OPA2652U by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (4 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Environmental Monitoring
Industrial Automation
Audio and Video Systems
Agriculture Technology
Medical Imaging
Entertainment and Gaming
OPA2652U Information
OPA2652U by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for OPA2652U
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
OPA2652U-ND
|
DigiKey | IC VOLTAGE FEEDBACK 2 CIRC 8SOIC Min Qty: 1 Lead time: 6 Weeks Container: Tube |
153 In Stock |
|
$2.7657 / $4.9900 | Buy Now |
|
DISTI #
595-OPA2652U
|
Mouser Electronics | High Speed Operational Amplifiers Dual 700MHz Voltage Feedback A 595-OPA26 A 595-OPA2652U/2K5 RoHS: Compliant | 229 |
|
$2.7600 / $4.9900 | Buy Now |
|
DISTI #
86018736
|
Verical | Op Amp Dual High Speed Amplifier ±6V/12V 8-Pin SOIC Tube RoHS: Compliant Min Qty: 118 Package Multiple: 1 Date Code: 1401 | Americas - 2814 |
|
$2.6875 / $3.2000 | Buy Now |
|
|
Bristol Electronics | 95 |
|
RFQ | ||
|
|
Rochester Electronics | Operational Amplifier, 2 Func, 7000uV Offset-Max, BIPolar, PDSO8 RoHS: Compliant Status: Active Min Qty: 1 | 4147 |
|
$2.1500 / $2.6900 | Buy Now |
|
DISTI #
OPA2652U
|
TME | IC: operational amplifier, 700MHz, Ch: 2, ±6÷12VDC, SO8, 7mV, tube Min Qty: 1 | 0 |
|
$2.7300 / $4.3500 | RFQ |
US Tariff Estimator: OPA2652U by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for OPA2652U
OPA2652U CAD Models
-

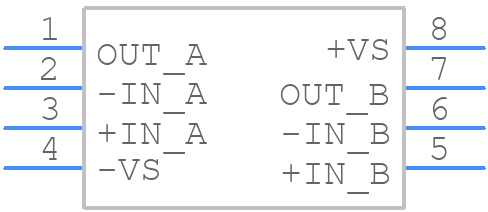

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
OPA2652U Part Data Attributes
|
|
OPA2652U
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
OPA2652U
Texas Instruments
Operational Amplifier, 2 Func, 7000uV Offset-Max, BIPolar, PDSO8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Pin Count | 8 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 25 µA | |
| Bias Current-Max (IIB) @25C | 15 µA | |
| Common-mode Reject Ratio-Min | 75 Db | |
| Common-mode Reject Ratio-Nom | 95 Db | |
| Frequency Compensation | Yes | |
| Input Offset Current-Max (IIO) | 1 µA | |
| Input Offset Voltage-Max | 7000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 Mm | |
| Low-Bias | No | |
| Low-Offset | No | |
| Micropower | No | |
| Moisture Sensitivity Level | 2 | |
| Neg Supply Voltage Limit-Max | -6.5 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Packing Method | Tube | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Slew Rate-Nom | 335 V/Us | |
| Supply Current-Max | 13.2 Ma | |
| Supply Voltage Limit-Max | 6.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 700000 | |
| Voltage Gain-Min | 500 | |
| Wideband | Yes | |
| Width | 3.9 Mm |
Alternate Parts for OPA2652U
This table gives cross-reference parts and alternative options found for OPA2652U. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of OPA2652U, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| OPA2652E/250 | Texas Instruments | $1.9819 | Operational Amplifier, 2 Func, 7000uV Offset-Max, BIPolar, PDSO8 | OPA2652U vs OPA2652E/250 |
| OPA2652U-1/2K5 | Texas Instruments | Check for Price | Operational Amplifier, 2 Func, 7000uV Offset-Max, BIPolar, PDSO8 | OPA2652U vs OPA2652U-1/2K5 |
| OPA2650U/2K5 | Burr-Brown Corp | Check for Price | Operational Amplifier, 2 Func, 5000uV Offset-Max, PDSO8 | OPA2652U vs OPA2650U/2K5 |
| OPA2650P | Rochester Electronics LLC | Check for Price | Operational Amplifier, 2 Func, 5000uV Offset-Max, PDIP8 | OPA2652U vs OPA2650P |
OPA2652U Frequently Asked Questions (FAQ)
-
For optimal performance, it is recommended to use a symmetrical layout, keep the input and output traces short and away from noise sources, and use a solid ground plane. Additionally, decoupling capacitors should be placed close to the power pins.
-
The input bias current can be minimized by using a high-impedance source and a low-impedance feedback network. The input offset voltage can be trimmed using an external potentiometer or by using a laser-trimmed offset voltage option.
-
The OPA2652U can drive a maximum capacitive load of 100 pF. Exceeding this limit may cause oscillations or instability.
-
To ensure stability in high-gain applications, it is recommended to use a compensation capacitor between the output and the inverting input, and to minimize the gain-bandwidth product.
-
A decoupling capacitor (e.g., 0.1 μF) should be placed close to the power pins, and a larger bypass capacitor (e.g., 10 μF) should be placed near the power supply source.
