OPA358AIDCKT Information
OPA358AIDCKT by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| OPA358AIDCKT | Texas Instruments | 3V Single Supply 80MHz High-Speed Op Amp in SC70 6-SC70 -40 to 85 |
Price & Stock for OPA358AIDCKT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-OPA358AIDCKT-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT SC70-6 Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
1500 In Stock |
|
$1.3400 | Buy Now |
|
DISTI #
296-17414-1-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT SC70-6 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
675 In Stock |
|
$0.8498 / $1.7400 | Buy Now |
|
DISTI #
595-OPA358AIDCKT
|
Mouser Electronics | High Speed Operational Amplifiers 3V Single Supply 80M Hz High-Speed A 595 A 595-OPA358AIDCKR RoHS: Compliant | 192 |
|
$0.8370 / $1.7400 | Buy Now |
|
DISTI #
86016971
|
Verical | Op Amp Single High Speed Amplifier R-R O/P 3.3V 6-Pin SC-70 T/R RoHS: Compliant Min Qty: 281 Package Multiple: 1 Date Code: 0601 | Americas - 750 |
|
$0.8293 / $1.3375 | Buy Now |
|
DISTI #
86004511
|
Verical | Op Amp Single High Speed Amplifier R-R O/P 3.3V 6-Pin SC-70 T/R RoHS: Compliant Min Qty: 281 Package Multiple: 1 Date Code: 1101 | Americas - 500 |
|
$0.8293 / $1.3375 | Buy Now |
|
|
Bristol Electronics | 177 |
|
RFQ | ||
|
|
Quest Components | IC,OP-AMP,SINGLE,CMOS,TSSOP,6PIN,PLASTIC | 141 |
|
$1.5900 / $3.1800 | Buy Now |
|
|
Rochester Electronics | Operational Amplifier, 1 Func, 6000uV Offset-Max, PDSO6 RoHS: Compliant Status: Active Min Qty: 1 | 1500 |
|
$0.6634 / $1.0700 | Buy Now |
|
DISTI #
OPA358AIDCKT
|
TME | IC: operational amplifier, 80MHz, Ch: 1, ±2.5÷3.6VDC, SC70-6, 15mV Min Qty: 1 | 0 |
|
$0.7900 / $1.6600 | RFQ |
|
|
ComSIT USA | AVAILABLE EU | 1252 |
|
RFQ |
US Tariff Estimator: OPA358AIDCKT by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for OPA358AIDCKT
OPA358AIDCKT CAD Models
-

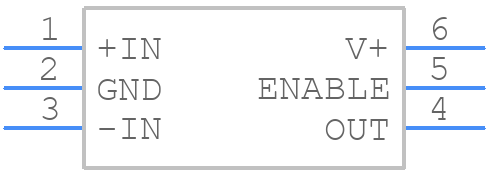

Part Symbol
-
Footprint
-

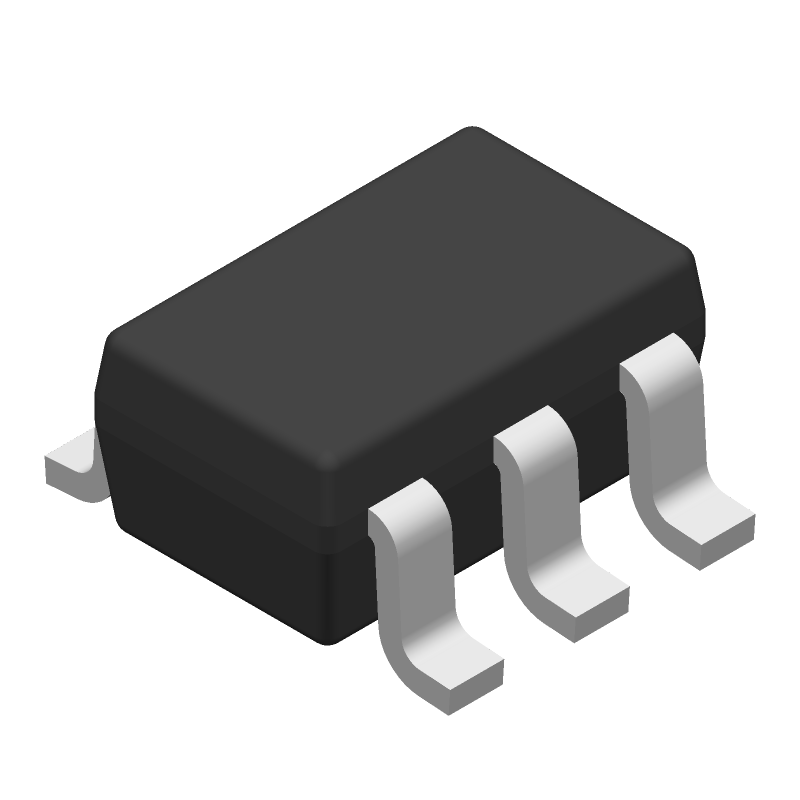

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
OPA358AIDCKT Part Data Attributes
|
|
OPA358AIDCKT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
OPA358AIDCKT
Texas Instruments
Operational Amplifier, 1 Func, 6000uV Offset-Max, CMOS, PDSO6
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Pin Count | 6 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.00005 µA | |
| Bias Current-Max (IIB) @25C | 0.00005 µA | |
| Common-mode Reject Ratio-Min | 60 Db | |
| Common-mode Reject Ratio-Nom | 80 Db | |
| Frequency Compensation | Yes | |
| Input Offset Current-Max (IIO) | 0.00005 µA | |
| Input Offset Voltage-Max | 6000 µV | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e4 | |
| Length | 2 Mm | |
| Low-Bias | Yes | |
| Low-Offset | No | |
| Micropower | No | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 Mm | |
| Slew Rate-Nom | 55 V/Us | |
| Supply Current-Max | 7.5 Ma | |
| Supply Voltage Limit-Max | 3.6 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 80000 | |
| Voltage Gain-Min | 15848.931 | |
| Wideband | Yes | |
| Width | 1.25 Mm |
