OPA388IDBVR Information
OPA388IDBVR by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for OPA388IDBVR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Chip Stock | Rail-to-RailInput/OutputOperationalAmplifierSingle2.5Vto5.5V5-PinSOT-23T/R | 14500 |
|
RFQ | |
|
|
LCSC | 250nV 30pA 5V/us 140dB 10MHz 1 Rail-to-Rail Input Rail-to-Rail Output SOT-23-5 Amplifiers RoHS | 61 |
|
$0.9100 / $1.5604 | Buy Now |
|
|
Win Source Electronics | IC OPAMP ZER-DRIFT 1CIRC SOT23-5 | 11000 |
|
$1.0349 / $1.3367 | Buy Now |
US Tariff Estimator: OPA388IDBVR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for OPA388IDBVR
OPA388IDBVR CAD Models
-

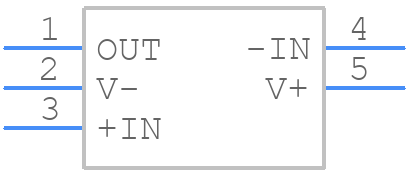

Part Symbol
-
