PCF8562TT/2,518 by: NXP Semiconductors

PCF8562 - Universal LCD driver for low multiplex rates TSSOP 48-Pin

Part Details for PCF8562TT/2,518 by NXP Semiconductors

Results Overview of PCF8562TT/2,518 by NXP Semiconductors

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PCF8562TT/2,518 Information

PCF8562TT/2,518 by NXP Semiconductors is a Display Driver.
Display Drivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Price & Stock for PCF8562TT/2,518

Part # Distributor Description Stock Price Buy
DISTI # 32AK8303
Newark Lcd Driver, Aec-Q100, -40 To 85Deg C Rohs Compliant: Yes |Nxp PCF8562TT/2,518 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 6000
  • 1 $2.3800
  • 10 $1.7700
  • 25 $1.6200
  • 50 $1.5300
  • 100 $1.4500
  • 250 $1.3700
  • 500 $1.3200
  • 1,000 $1.2800
$1.2800 / $2.3800 Buy Now
DISTI # PCF8562TT/2,518
Avnet Americas LCD DRVR 16DIGIT 2.5V/3.3V/5V 48-Pin TSSOP T/R - Tape and Reel (Alt: PCF8562TT/2,518) COO: Thailand RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 16 Weeks, 0 Days Container: Reel 0
  • 2,000 $1.1283
  • 4,000 $1.1101
  • 8,000 $1.0917
  • 16,000 $1.0734
  • 32,000 $1.0552
$1.0552 / $1.1283 Buy Now
NXP Semiconductors 4 x 32 I²C-bus LCD Segment Driver for Low Multiplex Rates, Frame frenquency 64 Hz in TSSOP48 Package, Reel 13" Q1/T1 in Drypack RoHS: Compliant pbFree: Yes Lead time: 16 Weeks, 0 Days Container: Reel 2000
  • 1 $1.2200
  • 25 $1.2200
  • 100 $1.2200
$1.2200 Buy Now
DISTI # PCF8562TT/2,518
Avnet Silica LCD DRVR 16DIGIT 25V33V5V 48Pin TSSOP TR (Alt: PCF8562TT/2,518) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 18 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PCF8562TT/2,518
Chip One Stop Semiconductors RoHS: Compliant pbFree: No Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape 1900
  • 1 $2.3800
  • 10 $1.7600
  • 50 $1.6100
  • 100 $1.4400
  • 500 $1.3100
  • 1,000 $1.1000
  • 2,000 $1.0700
  • 4,000 $1.0100
  • 16,000 $0.9770
$0.9770 / $2.3800 Buy Now
DISTI # PCF8562TT/2,518
EBV Elektronik LCD DRVR 16DIGIT 25V33V5V 48Pin TSSOP TR (Alt: PCF8562TT/2,518) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 18 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: PCF8562TT/2,518 by NXP Semiconductors

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PCF8562TT/2,518
NXP Semiconductors
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PCF8562TT/2,518

PCF8562TT/2,518 CAD Models

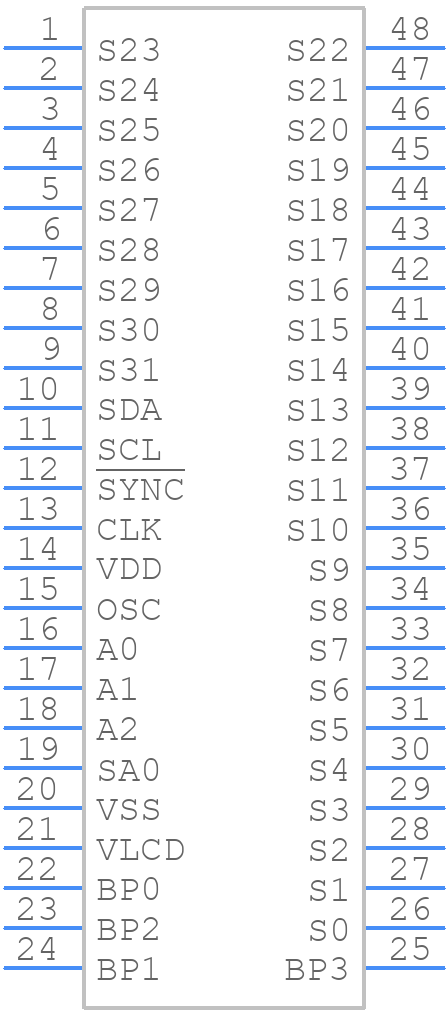

  • Part Symbol

    schematic symbol

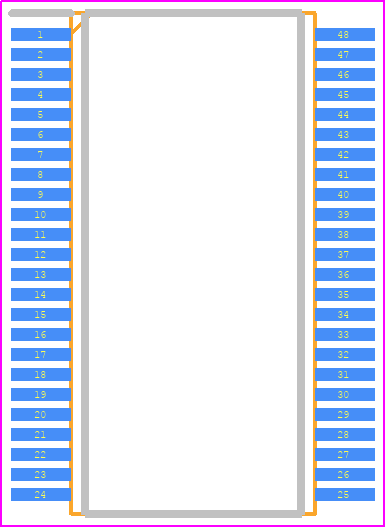

  • Footprint

    pcb footprint

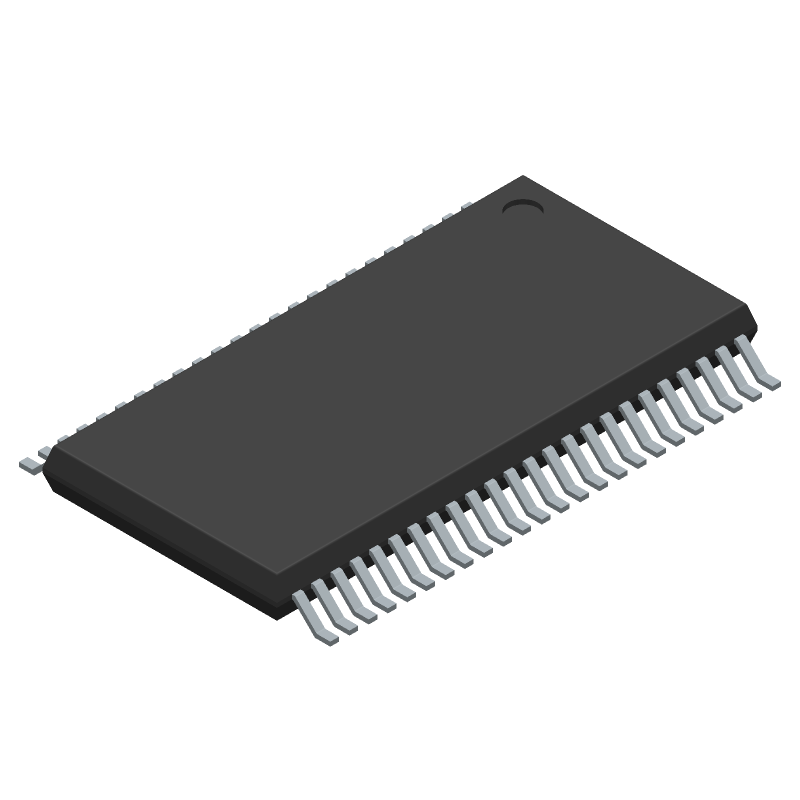

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PCF8562TT/2,518 Part Data Attributes

Parametric Data
PCF8562TT/2,518 NXP Semiconductors
Buy Now Datasheet
Compare Parts:
PCF8562TT/2,518 NXP Semiconductors PCF8562 - Universal LCD driver for low multiplex rates TSSOP 48-Pin
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NXP SEMICONDUCTORS
Part Package Code TSSOP
Package Description TSSOP, TSSOP48,.3,20
Pin Count 48
Manufacturer Package Code SOT362-1
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 16 Weeks
Samacsys Manufacturer NXP
Data Input Mode SERIAL
Display Mode DOT MATRIX
Interface IC Type LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 Code R-PDSO-G48
JESD-609 Code e4
Length 12.5 mm
Moisture Sensitivity Level 3
Multiplexed Display Capability YES
Number of Digits/Characters 16-DIGIT
Number of Functions 1
Number of Segments 36
Number of Terminals 48
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP48,.3,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Supply Current-Max 0.02 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 1.8 V
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position DUAL
Width 6.1 mm
fmax-Min 0.4 MHz

Alternate Parts for PCF8562TT/2,518

This table gives cross-reference parts and alternative options found for PCF8562TT/2,518. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PCF8562TT/2,518, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
935287129118 NXP Semiconductors Check for Price LIQUID CRYSTAL DISPLAY DRIVER, PDSO48, 6.10 MM, PLASTIC, MO-153, SOT-362-1, TSSOP-48 PCF8562TT/2,518 vs 935287129118
Part Number Manufacturer Composite Price Description Compare
PCF8562TT/S400/2,5 NXP Semiconductors $2.0100 PCF8562 - Universal LCD driver for low multiplex rates TSSOP 48-Pin PCF8562TT/2,518 vs PCF8562TT/S400/2,5
935276218118 NXP Semiconductors Check for Price LIQUID CRYSTAL DISPLAY DRIVER, PDSO48, 6.10 MM, PLASTIC, MO-153, SOT-362-1, TSSOP-48 PCF8562TT/2,518 vs 935276218118
PCF8562TT/S400/2,118 NXP Semiconductors Check for Price Liquid Crystal Driver, 36-Segment, CMOS, PDSO48 PCF8562TT/2,518 vs PCF8562TT/S400/2,118
PCF8562TT/2,118 NXP Semiconductors Check for Price PCF8562 - Universal LCD driver for low multiplex rates TSSOP 48-Pin PCF8562TT/2,518 vs PCF8562TT/2,118
PCF8562TT/S400/2,1 NXP Semiconductors Check for Price PCF8562 - Universal LCD driver for low multiplex rates TSSOP 48-Pin PCF8562TT/2,518 vs PCF8562TT/S400/2,1
PCF8562TT NXP Semiconductors Check for Price IC LIQUID CRYSTAL DISPLAY DRIVER, PDSO48, 6.10 MM, PLASTIC, MO-153, SOT-362-1, TSSOP-48, Display Driver PCF8562TT/2,518 vs PCF8562TT
935276218518 NXP Semiconductors Check for Price LIQUID CRYSTAL DISPLAY DRIVER, PDSO48, 6.10 MM, PLASTIC, MO-153, SOT-362-1, TSSOP-48 PCF8562TT/2,518 vs 935276218518
PCF8577CTD-T NXP Semiconductors Check for Price IC LIQUID CRYSTAL DISPLAY DRIVER, PDSO40, Display Driver PCF8562TT/2,518 vs PCF8577CTD-T
equivalents icon

PCF8562TT/2,518 Related Parts

PCF8562TT/2,518 Frequently Asked Questions (FAQ)

  • A simple RC circuit with a 1 kΩ resistor and a 10 μF capacitor is recommended for power-on reset (POR) circuit.

  • The clock calibration can be done by writing the calibration value to the calibration register (0x0B). The calibration value can be calculated using the formula: Calibration Value = (desired frequency - nominal frequency) / (nominal frequency * 2^(-7)).

  • The CLKOUT pin provides a 32.768 kHz clock signal that can be used as a clock source for other devices in the system.

  • The PCF8562 can be reset to its default state by writing 0x00 to the control register (0x00) and then writing 0x58 to the control register (0x00).

  • The maximum clock frequency that can be achieved with PCF8562 is 32.768 kHz.
