PCF8574DWRE4 Information
PCF8574DWRE4 by Texas Instruments is a Parallel IO Port.
Parallel IO Ports are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| PCF8574DWRE4 | Texas Instruments | Remote 8-Bit I/O Expander for I2C-Bus 16-SOIC -40 to 85 |
Price & Stock for PCF8574DWRE4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | I2C Interface 100kHz 6V 16-Pin SOIC T/R | 418 |
|
RFQ | |
|
|
Quest Components | PARALLEL I/O PORT, 8-BIT, 8 I/O, CMOS, PDSO16 | 14 |
|
$4.4000 / $6.0000 | Buy Now |
|
|
Vyrian | Parallel I/O Port, 8-Bit, 8 I/O, CMOS, PDSO16 | 8939 |
|
RFQ |
US Tariff Estimator: PCF8574DWRE4 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for PCF8574DWRE4
PCF8574DWRE4 CAD Models
-

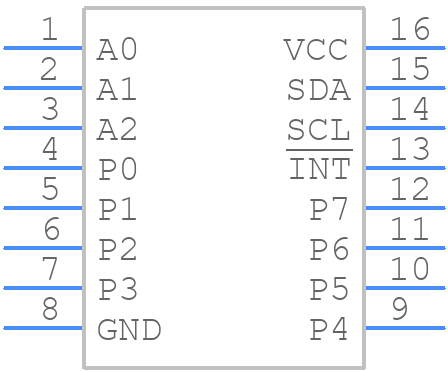

Part Symbol
-
