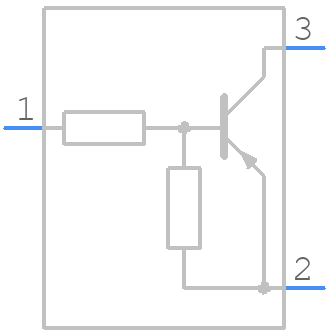

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PDTA124EU,135 by Nexperia
Results Overview of PDTA124EU,135 by Nexperia
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (7 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Industrial Automation
Audio and Video Systems
Electronic Manufacturing
PDTA124EU,135 Information
PDTA124EU,135 by Nexperia is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for PDTA124EU,135
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1727-PDTA124EU,135CT-ND
|
DigiKey | TRANS PREBIAS PNP 50V SOT323 Min Qty: 1 Lead time: 26 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
8489 In Stock |
|
$0.0223 / $0.1900 | Buy Now |
|
DISTI #
PDTA124EU,135
|
Avnet Americas | - Tape and Reel (Alt: PDTA124EU,135) COO: Malaysia RoHS: Compliant Min Qty: 60000 Package Multiple: 10000 Lead time: 26 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.0259 / $0.0265 | Buy Now |
|
DISTI #
771-PDTA124EU135
|
Mouser Electronics | Digital Transistors PDTA124EU/SOT323/SC-70 RoHS: Compliant | 22692 |
|
$0.0300 / $0.1800 | Buy Now |
|
DISTI #
89518224
|
Verical | Trans Digital BJT PNP 50V 0.1A 200mW 3-Pin SC-70 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 12500 Package Multiple: 1 Date Code: 2001 | Americas - 30000 |
|
$0.0251 / $0.0300 | Buy Now |
|
|
Rochester Electronics | Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon RoHS: Compliant Status: Active Min Qty: 1 | 37000 |
|
$0.0201 / $0.0324 | Buy Now |
|
|
Chip Stock | PDTA124EUSeries50V100mAPNPResistorEquipedTransistor-SOT-323 | 161000 |
|
RFQ | |
|
|
Vyrian | Other Function Semiconductors | 8021 |
|
RFQ |
Part Details for PDTA124EU,135
PDTA124EU,135 CAD Models
PDTA124EU,135 Part Data Attributes
|
|
PDTA124EU,135
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PDTA124EU,135
Nexperia
Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SC-70 | |
| Package Description | Sc-70, 3 Pin | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT323 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 8 Weeks | |
| Date Of Intro | 1995-11-01 | |
| Additional Feature | Built In Bias Resistance Ratio Is 1 | |
| Collector Current-Max (IC) | 0.1 A | |
| Collector-Emitter Voltage-Max | 50 V | |
| Configuration | Single With Built-In Resistor | |
| DC Current Gain-Min (hFE) | 60 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | Pnp | |
| Qualification Status | Not Qualified | |
| Reference Standard | Iec-60134 | |
| Surface Mount | Yes | |
| Terminal Finish | Tin | |
| Terminal Form | Gull Wing | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | Switching | |
| Transistor Element Material | Silicon | |
| Transition Frequency-Nom (fT) | 180 Mhz |
Alternate Parts for PDTA124EU,135
This table gives cross-reference parts and alternative options found for PDTA124EU,135. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PDTA124EU,135, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DTA124EU3T106 | ROHM Semiconductor | $0.0645 | Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon | PDTA124EU,135 vs DTA124EU3T106 |
| PDTA124EU,115 | Nexperia | $0.0845 | Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon | PDTA124EU,135 vs PDTA124EU,115 |
| DTA124EUAT107 | ROHM Semiconductor | Check for Price | Small Signal Bipolar Transistor, 0.03A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, | PDTA124EU,135 vs DTA124EUAT107 |
| PDTA124EU | Philips Semiconductors | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon | PDTA124EU,135 vs PDTA124EU |
| 934044110135 | Nexperia | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon | PDTA124EU,135 vs 934044110135 |
| DTA124EU | ROHM Semiconductor | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon, | PDTA124EU,135 vs DTA124EU |
| PDTA124EU/T3 | Nexperia | Check for Price | Small Signal Bipolar Transistor | PDTA124EU,135 vs PDTA124EU/T3 |
PDTA124EU,135 Frequently Asked Questions (FAQ)
-
Nexperia recommends a PCB layout with a thermal pad connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended.
-
To ensure reliable operation at high temperatures, Nexperia recommends derating the device's power dissipation according to the temperature derating curve provided in the datasheet. Additionally, ensure good thermal design and heat sinking.
-
Although the datasheet specifies a maximum input voltage of 5V, Nexperia recommends limiting the input voltage to 4.5V to ensure reliable operation and prevent damage to the device.
-
Yes, the PDTA124EU,135 is suitable for use in high-humidity environments. However, Nexperia recommends following proper moisture sensitivity level (MSL) handling and storage procedures to prevent damage.
-
Check the input voltage, ensure proper pin connections, and verify that the enable pin is properly biased. If issues persist, consult Nexperia's application notes and technical support resources.
