PIC18F26J50T-I/ML by:
Microchip Technology Inc

Full Speed USB, 64KB Flash, 4KB RAM, 12 MIPS, nanowatt XLP

Part Details for PIC18F26J50T-I/ML by Microchip Technology Inc

Results Overview of PIC18F26J50T-I/ML by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities

PIC18F26J50T-I/ML Information

PIC18F26J50T-I/ML by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC18F26J50T-I/ML

Part # Distributor Description Stock Price Buy
DISTI # 98M1807
Newark Full Speed Usb, 64Kb Flash, 4Kb Ram, 12 Mips, Nanowatt Xlp 28 Qfn 6X6X0.9Mm T/R Rohs Compliant: Yes |Microchip PIC18F26J50T-I/ML RoHS: Compliant Min Qty: 1600 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 100 $4.1100
$4.1100 Buy Now
DISTI # PIC18F26J50T-I/ML
Avnet Americas MCU 8-bit PIC18 PIC RISC 64KB Flash 2.5V/3.3V 28-Pin QFN EP T/R - Tape and Reel (Alt: PIC18F26J50T-I/ML) COO: China RoHS: Compliant Min Qty: 1600 Package Multiple: 1600 Lead time: 4 Weeks, 0 Days Container: Reel 0
  • 1,600 $4.8429
  • 3,200 $4.5811
  • 6,400 $4.4605
  • 12,800 $4.3461
  • 25,600 $4.2375
$4.2375 / $4.8429 Buy Now
DISTI # PIC18F26J50T-I/ML
Microchip Technology Inc Full Speed USB, 64KB Flash, 4KB RAM, 12 MIPS, nanowatt XLP, VQFN, Projected EOL: 2034-02-16 COO: Philippines, Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel In Stock: 28800 and Alternates Available
  • 1 $4.8000
  • 25 $4.4100
  • 100 $3.9900
  • 1,000 $3.6600
  • 5,000 $3.4800
$3.4800 / $4.8000 Buy Now
DISTI # 70572644
RS FULL SPEED USB, 64KB FLASH, 4KB RAM, 12 MIPS, NANOWATT XLP Min Qty: 1600 Package Multiple: 1 Lead time: 34 Weeks, 0 Days Container: Bulk 0
  • 1,600 $7.7800
$7.7800 RFQ
NAC Full Speed USB, 64KB Flash, 4KB RAM, 12 MIPS, nanowatt XLP. Package: 28 VQFN 6x6x1.0mm T/R - PIC18 3V Product Line RoHS: Compliant Min Qty: 1600 Package Multiple: 1600 0
  • 1 $4.9900
  • 100 $4.5200
  • 500 $4.2400
  • 1,000 $4.1300
$4.1300 / $4.9900 Buy Now
DISTI # PIC18F26J50T-I/ML
Avnet Silica MCU 8bit PIC18 PIC RISC 64KB Flash 25V33V 28Pin QFN EP TR (Alt: PIC18F26J50T-I/ML) RoHS: Compliant Min Qty: 1600 Package Multiple: 1600 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC18F26J50T-I/ML
EBV Elektronik MCU 8bit PIC18 PIC RISC 64KB Flash 25V33V 28Pin QFN EP TR (Alt: PIC18F26J50T-I/ML) RoHS: Compliant Min Qty: 1600 Package Multiple: 1600 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: PIC18F26J50T-I/ML by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC18F26J50T-I/ML
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC18F26J50T-I/ML

PIC18F26J50T-I/ML CAD Models

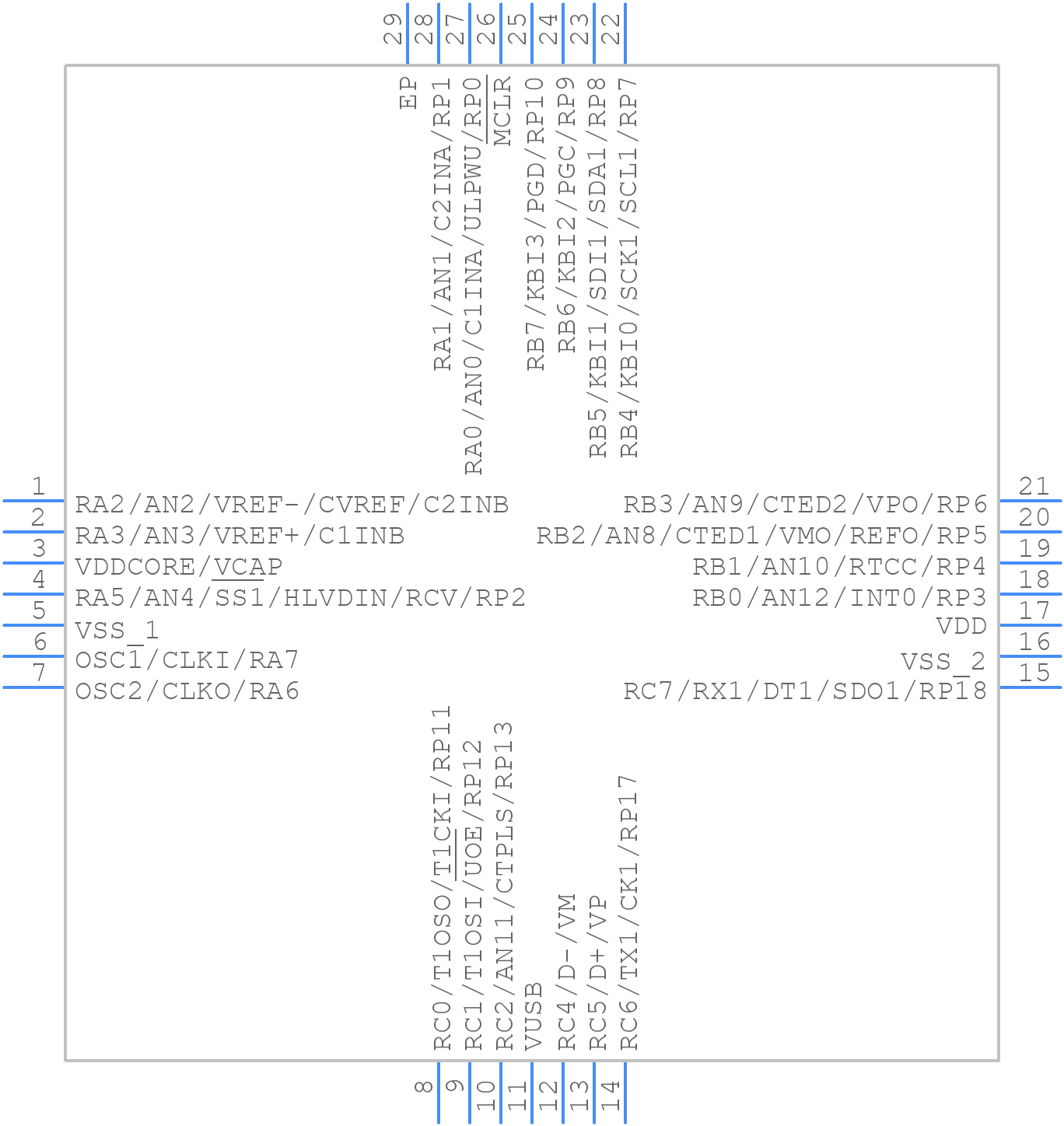

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC18F26J50T-I/ML Part Data Attributes

Parametric Data
PIC18F26J50T-I/ML Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC18F26J50T-I/ML Microchip Technology Inc Full Speed USB, 64KB Flash, 4KB RAM, 12 MIPS, nanowatt XLP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code QFN
Package Description HVQCCN, LCC28,.24SQ,25
Pin Count 28
Manufacturer Package Code VQFN-28
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 7 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature ALSO OPERATES AT 8 MHZ AT 2.15 V
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC18
Clock Frequency-Max 48 MHz
DAC Channels NO
DMA Channels YES
External Data Bus Width
JESD-30 Code S-PQCC-N28
JESD-609 Code e3
Length 6 mm
Moisture Sensitivity Level 1
Number of I/O Lines 23
Number of Terminals 28
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC28,.24SQ,25
Package Shape SQUARE
Package Style CHIP CARRIER, VERY THIN PROFILE, HEAT SINK/SLUG
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 3776
ROM (words) 65536
ROM Programmability FLASH
Seated Height-Max 1 mm
Speed 48 MHz
Supply Current-Max 22.7 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.65 mm
Terminal Position QUAD
Width 6 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC18F26J50T-I/ML

This table gives cross-reference parts and alternative options found for PIC18F26J50T-I/ML. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC18F26J50T-I/ML, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC18F26J50-I/ML Microchip Technology Inc $3.1944 Full Speed USB, 64KB Flash, 4KB RAM, 12 MIPS, nanowatt XLP PIC18F26J50T-I/ML vs PIC18F26J50-I/ML
PIC18F26J50-I/SS Microchip Technology Inc $3.2823 Full Speed USB, 64KB Flash, 4KB RAM, 12 MIPS, nanowatt XLP PIC18F26J50T-I/ML vs PIC18F26J50-I/SS
PIC18F26J50-I/SP Microchip Technology Inc $4.5361 Full Speed USB, 64KB Flash, 4KB RAM, 12 MIPS, nanowatt XLP PIC18F26J50T-I/ML vs PIC18F26J50-I/SP
PIC18F26J50T-I/SS Microchip Technology Inc Check for Price Full Speed USB, 64KB Flash, 4KB RAM, 12 MIPS, nanowatt XLP PIC18F26J50T-I/ML vs PIC18F26J50T-I/SS
equivalents icon

PIC18F26J50T-I/ML Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC18F26J50T-I/ML is 64 MHz.

  • The PIC18F26J50T-I/ML has 64 KB of flash memory.

  • Yes, the PIC18F26J50T-I/ML can operate at 5V, but it is recommended to operate it at 3.3V for optimal performance and power consumption.

  • No, the PIC18F26J50T-I/ML does not have built-in USB support. However, it can be implemented using bit-banging or using an external USB controller.

  • The PIC18F26J50T-I/ML can source up to 25 mA and sink up to 25 mA on its I/O pins.
