PIC18F4420-I/PT by:
Microchip Technology Inc

44 pin, 16 KB Enh Flash, 768 RAM, 36 I/O

Part Details for PIC18F4420-I/PT by Microchip Technology Inc

Results Overview of PIC18F4420-I/PT by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC18F4420-I/PT Information

PIC18F4420-I/PT by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC18F4420-I/PT

Part # Distributor Description Stock Price Buy
DISTI # 38K6803
Newark 8 Bit Microcontroller, Flash, Pic18F4Xxx, 40 Mhz, 16 Kb, 768 Byte, 44, Tqfp Rohs Compliant: Yes |Microchip PIC18F4420-I/PT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 332
  • 1 $5.5100
$5.5100 Buy Now
DISTI # 84AC2415
Newark Tqfp 16 Kb Flash,768 Ram, 36 I/O Rohs Compliant: Yes |Microchip PIC18F4420-I/PT RoHS: Compliant Min Qty: 160 Package Multiple: 1 Date Code: 0 Container: Bulk 110
  • 1 $5.5100
$5.5100 Buy Now
DISTI # PIC18F4420-I/PT
Avnet Americas 8 Bit MCU, Flash, PIC18 Family PIC18F44xx Series Microcontrollers, PIC18, 40 MHz, 16 KB, 44 Pins - Trays (Alt: PIC18F4420-I/PT) COO: Thailand RoHS: Compliant Min Qty: 160 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Tray 110
  • 160 $5.8800
  • 320 $5.7647
  • 640 $5.6830
  • 1,280 $5.6036
  • 2,560 $5.5125
$5.5125 / $5.8800 Buy Now
DISTI # PIC18F4420-I/PT
Microchip Technology Inc 44 pin, 16 KB Enh Flash, 768 RAM, 36 I/O, TQFP, Projected EOL: 2035-09-29 COO: Philippines, Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tray In Stock: 65 and Alternates Available
  • 1 $4.8800
  • 25 $4.7500
  • 100 $4.6400
  • 1,000 $4.2600
  • 5,000 $4.0600
$4.0600 / $4.8800 Buy Now
DISTI # 70046304
RS 44-PIN, 16 KB FLASH,768 RAM, 36 I/O Min Qty: 160 Package Multiple: 1 Lead time: 51 Weeks, 0 Days Container: Bulk 0
  • 160 $6.6200
  • 800 $6.2800
  • 1,600 $5.9500
$5.9500 / $6.6200 RFQ
DISTI # PIC18F4420-I/PT
TME IC: PIC microcontroller, 16kB, 40MHz, 4.2÷5.5VDC, SMD, TQFP44 Min Qty: 1 0
  • 1 $7.4200
  • 5 $6.8700
  • 25 $6.6800
$6.6800 / $7.4200 RFQ
DISTI # PIC18F4420-I/PT
IBS Electronics RISC MICROCONTROLLER 8-BIT FLASH PIC18 CPU 40MHZ CMOS PQFP44 Min Qty: 2 Package Multiple: 1 1552
  • 2 $7.6020
  • 10 $7.5180
  • 40 $7.4480
  • 125 $7.3920
  • 160 $7.0700
  • 320 $7.0140
  • 480 $6.9720
  • 640 $6.9440
  • 800 $6.8600
$6.8600 / $7.6020 Buy Now
NAC 16 KB Flash,768 RAM, 36 I/O. Package: 44 TQFP 10x10x1mm TRAY - PIC18 Flash Low Pin Count Product Line RoHS: Compliant Min Qty: 160 Package Multiple: 160 Container: Tray 0
  • 1 $6.4900
  • 100 $5.8800
  • 500 $5.5100
  • 1,000 $5.3800
$5.3800 / $6.4900 Buy Now
DISTI # PIC18F4420-I/PT
Avnet Silica 8 Bit MCU Flash PIC18 Family PIC18F44xx Series Microcontrollers PIC18 40 MHz 16 KB 44 Pins (Alt: PIC18F4420-I/PT) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
Chip Stock ICMCU8BIT16KBFLASH44TQFPPICPIC®18FMicrocontrollerIC8-Bit40MHz16KB(8Kx16)FLASH44-TQFP(10x10) 3900
RFQ
DISTI # PIC18F4420-I/PT
EBV Elektronik 8 Bit MCU Flash PIC18 Family PIC18F44xx Series Microcontrollers PIC18 40 MHz 16 KB 44 Pins (Alt: PIC18F4420-I/PT) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
DISTI # PIC18F4420-I/PT
Maritex 8-bit MCU Microcontrollers, MICROCHIP, PIC18F4420-I/PT, PIC, 40 MHz, FLASH, 4 Min Qty: 1 Package Multiple: 1 2000
  • 1 $10.2900
$10.2900 Buy Now

US Tariff Estimator: PIC18F4420-I/PT by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC18F4420-I/PT
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC18F4420-I/PT

PIC18F4420-I/PT CAD Models

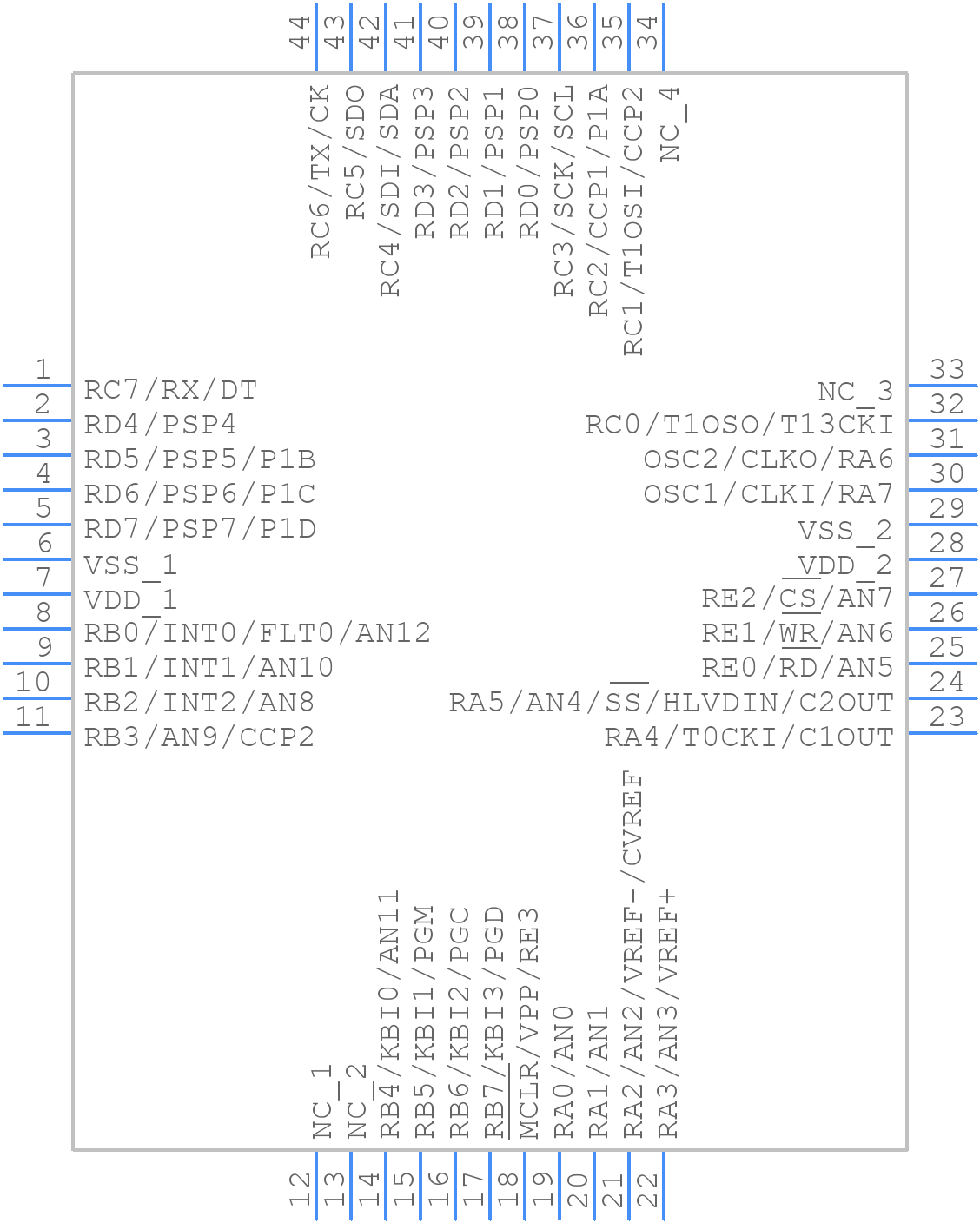

  • Part Symbol

    schematic symbol

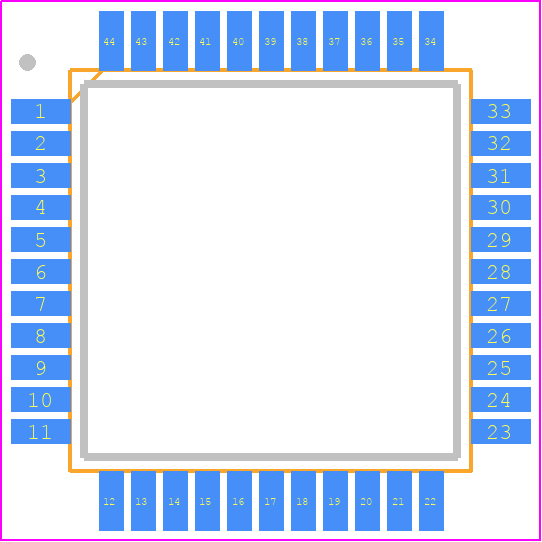

  • Footprint

    pcb footprint

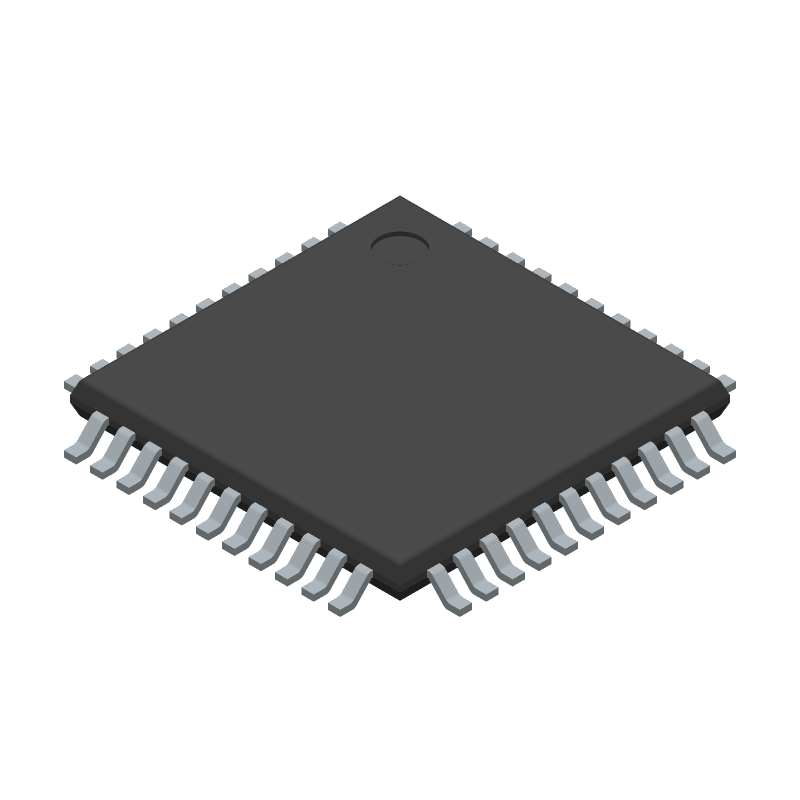

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC18F4420-I/PT Part Data Attributes

Parametric Data
PIC18F4420-I/PT Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC18F4420-I/PT Microchip Technology Inc 44 pin, 16 KB Enh Flash, 768 RAM, 36 I/O
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code QFP
Package Description Tqfp, Tqfp44,.39sq,31
Pin Count 44
Manufacturer Package Code TQFP-44
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Has ADC Yes
Address Bus Width
Bit Size 8
Boundary Scan No
CPU Family Pic18
Clock Frequency-Max 40 Mhz
DAC Channels No
DMA Channels No
External Data Bus Width
Format Fixed Point
Integrated Cache No
JESD-30 Code S-PQFP-G44
JESD-609 Code e3
Length 10 Mm
Low Power Mode Yes
Moisture Sensitivity Level 3
Number of External Interrupts 3
Number of I/O Lines 36
Number of Serial I/Os 1
Number of Terminals 44
Number of Timers 4
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code TQFP
Package Equivalence Code TQFP44,.39SQ,31
Package Shape Square
Package Style Flatpack, Thin Profile
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 768
ROM (words) 16384
ROM Programmability Flash
Seated Height-Max 1.2 Mm
Speed 40 Mhz
Supply Current-Max 3.5 Ma
Supply Voltage-Max 5.5 V
Supply Voltage-Min 5 V
Supply Voltage-Nom 5 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 0.8 Mm
Terminal Position Quad
Time@Peak Reflow Temperature-Max (s) 40
Width 10 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc
