Part Details for PTA6043-2015DPB103 by Bourns Inc
Results Overview of PTA6043-2015DPB103 by Bourns Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
PTA6043-2015DPB103 Information
PTA6043-2015DPB103 by Bourns Inc is a Variable Resistor.
Variable Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for PTA6043-2015DPB103
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
05R8050
|
Newark | Potentiometer, Slide, 10Kohm, 20%, 0.25W, Slide Potentiometer Type:Low Profile, Track Resistance:10Kohm, Resistance Tolerance:± 20%, Power Rating:250Mw, Track Taper:Linear, Potentiometer Mounting:Through Hole, Length Of Travel:60Mm Rohs Compliant: Yes |Bourns PTA6043-2015DPB103 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1 |
|
$1.0500 / $2.2800 | Buy Now |
|
DISTI #
05R8050
|
Avnet Americas | Slide Potentiometer, Low Profile Type, 10 kOhm, ? 20%, 250 mW, Linear, Through Hole - Bulk (Alt: 05R8050) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk | 1 Partner Stock |
|
$1.1600 | Buy Now |
|
DISTI #
PTA6043-2015DPB103
|
Avnet Americas | Slide Potentiometer, Low Profile Type, 10 kOhm, ? 20%, 250 mW, Linear, Through Hole - Boxed Product (Development Kits) (Alt: PTA6043-2015DPB103) COO: China RoHS: Compliant Min Qty: 1000 Package Multiple: 100 Lead time: 14 Weeks, 0 Days Container: Box | 0 |
|
$0.8500 / $0.9444 | Buy Now |
|
DISTI #
70407915
|
RS | PTA SERIES, LINEAR POTENTIOMETER, 10KOHMS, +/-20%, 0.25W, THROUGH HOLE Min Qty: 1 Package Multiple: 1 Container: Bulk | 0 |
|
$1.8300 / $2.1600 | RFQ |
|
DISTI #
PTA6043-2015DPB103
|
Avnet Abacus | Slide Potentiometer Low Profile Type 10 kOhm 20 250 mW Linear Through Hole (Alt: PTA6043-2015DPB103) RoHS: Compliant Min Qty: 1000 Package Multiple: 100 Lead time: 15 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
LCSC | 20% 250mW 10k Through Hole Slide Potentiometers RoHS | 20 |
|
$1.8719 / $1.9648 | Buy Now |
US Tariff Estimator: PTA6043-2015DPB103 by Bourns Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for PTA6043-2015DPB103
PTA6043-2015DPB103 CAD Models
-

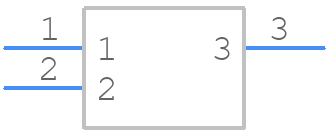

Part Symbol
-

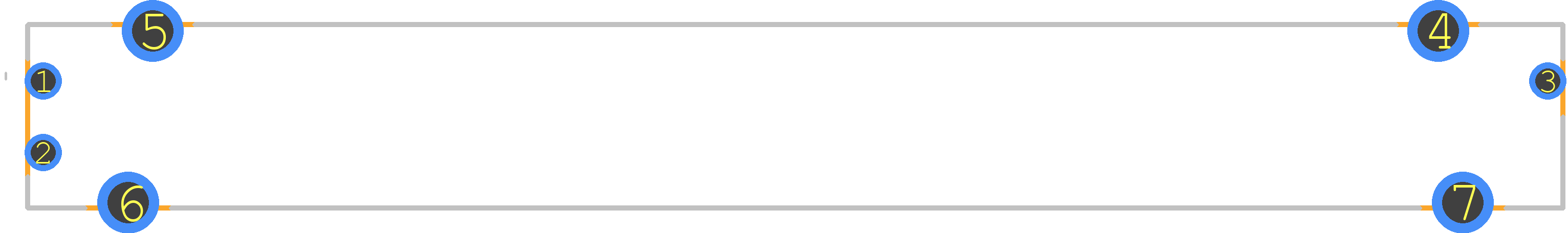

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
PTA6043-2015DPB103 Part Data Attributes
|
|
PTA6043-2015DPB103
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
PTA6043-2015DPB103
Bourns Inc
Potentiometer, Carbon Composition, 0.25W, 10000ohm, 200V, 20% +/-Tol, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Actuator Orientation | Vertical | |
| Actuator Type | Slide | |
| Construction | Rectangular | |
| Ganging Number | 1 | |
| JESD-609 Code | e3 | |
| Lead Length | 3.7 Mm | |
| Mounting Feature | Through Hole Mount | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 50 °C | |
| Operating Temperature-Min | -10 °C | |
| Package Height | 5.7 Mm | |
| Package Length | 75 Mm | |
| Package Shape | Rectangular Package | |
| Package Style | Pcb Mount | |
| Package Width | 9 Mm | |
| Rated Power Dissipation (P) | 0.25 W | |
| Resistance | 10000 Ω | |
| Resistance Law | Linear | |
| Resistor Type | Potentiometer | |
| Surface Mount | No | |
| Technology | Carbon | |
| Terminal Finish | Tin | |
| Terminal Shape | Flat | |
| Tolerance | 20% | |
| Working Voltage | 200 V |
Alternate Parts for PTA6043-2015DPB103
This table gives cross-reference parts and alternative options found for PTA6043-2015DPB103. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PTA6043-2015DPB103, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PTA6043-2015CIB103 | Bourns Inc | $1.2650 | Potentiometer, Carbon Composition, 0.25W, 10000ohm, 200V, 20% +/-Tol, ROHS COMPLIANT | PTA6043-2015DPB103 vs PTA6043-2015CIB103 |
| PTF45-151A-103B2 | Bourns Inc | Check for Price | Slide Potentiometers 10Kohms Travel=45mm | PTA6043-2015DPB103 vs PTF45-151A-103B2 |
| PTF45-201A-103B2 | Bourns Inc | Check for Price | Slide Potentiometers 10Kohms Travel=45mm | PTA6043-2015DPB103 vs PTF45-201A-103B2 |
| 1023-626-AB103 | Bourns Inc | Check for Price | RESISTOR, POTENTIOMETER, CARBON FILM, 0.25W, 10000ohm | PTA6043-2015DPB103 vs 1023-626-AB103 |
| PTA6043-2215CIB103 | Bourns Inc | Check for Price | Potentiometer, Carbon Composition, 0.25W, 10000ohm, 200V, 20% +/-Tol, ROHS COMPLIANT | PTA6043-2015DPB103 vs PTA6043-2215CIB103 |
| 1023-626-CB103 | Bourns Inc | Check for Price | RESISTOR, POTENTIOMETER, CARBON FILM, 0.25W, 10000ohm | PTA6043-2015DPB103 vs 1023-626-CB103 |
| PTA4543-2215CIB103 | Bourns Inc | Check for Price | Potentiometer, Carbon Composition, 0.25W, 10000ohm, 200V, 20% +/-Tol, ROHS COMPLIANT | PTA6043-2015DPB103 vs PTA4543-2215CIB103 |
| 1023-626-DB103 | Bourns Inc | Check for Price | RESISTOR, POTENTIOMETER, CARBON FILM, 0.25W, 10000ohm | PTA6043-2015DPB103 vs 1023-626-DB103 |
| 1023-626-BB103 | Bourns Inc | Check for Price | RESISTOR, POTENTIOMETER, CARBON FILM, 0.25W, 10000ohm | PTA6043-2015DPB103 vs 1023-626-BB103 |
| PTF45201B103B2 | Bourns Inc | Check for Price | Potentiometer, Carbon Film, 0.25W, 10000ohm, 20% +/-Tol, ROHS COMPLIANT | PTA6043-2015DPB103 vs PTF45201B103B2 |
PTA6043-2015DPB103 Frequently Asked Questions (FAQ)
-
Bourns recommends a symmetrical PCB layout with a solid ground plane to minimize electromagnetic interference (EMI) and ensure optimal performance. A minimum of 2 oz copper thickness is recommended for the PCB.
-
While the PTA6043-2015DPB103 is rated for operation up to 125°C, it's essential to consider the derating of the component's performance at high temperatures. Consult with Bourns' application engineers to determine the suitability of the component for your specific high-temperature application.
-
To ensure reliability in high-vibration environments, it's crucial to follow proper mounting and soldering techniques. Bourns recommends using a secure mounting method, such as screwing or adhesive, and ensuring that the component is properly soldered to the PCB.
-
To prevent damage, store the PTA6043-2015DPB103 in its original packaging or in a dry, ESD-protected environment. Avoid exposing the component to moisture, extreme temperatures, or physical stress. Handle the component by the body, not the leads, to prevent damage.
-
While the PTA6043-2015DPB103 is designed for high-current applications, it's essential to consider the component's surge current capability. Consult with Bourns' application engineers to determine the suitability of the component for your specific application and to discuss potential customization options.
