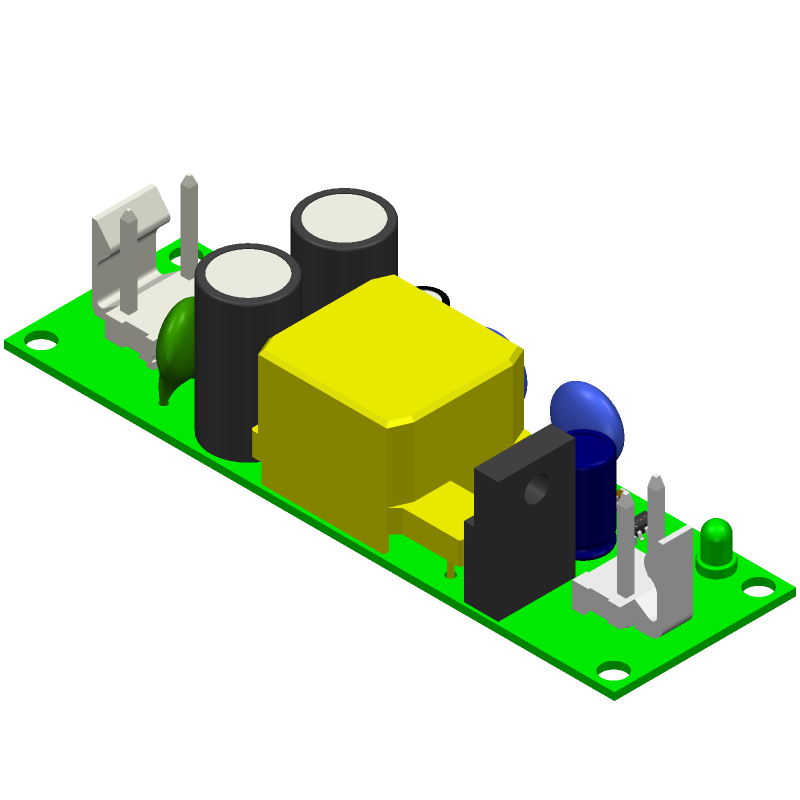

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RACM15E-12SK/OF by RECOM Power GmbH
Results Overview of RACM15E-12SK/OF by RECOM Power GmbH
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RACM15E-12SK/OF Information
RACM15E-12SK/OF by RECOM Power GmbH is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for RACM15E-12SK/OF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4355926
|
Farnell | POWER SUPPLY, AC-DC, FIXED, 12V, 1.25A RoHS: Compliant Min Qty: 1 Lead time: 27 Weeks, 1 Days Container: Each | 24 |
|
$8.3323 / $10.8386 | Buy Now |
|
DISTI #
945-RACM15E-12SK/OF-ND
|
DigiKey | AC/DC CONVERTER 12V 15W Min Qty: 1 Lead time: 26 Weeks Container: Tray |
150 In Stock |
|
$8.5854 / $10.3600 | Buy Now |
|
DISTI #
919-RACM15E-12SK/OF
|
Mouser Electronics | Power Supplies - Chassis Mount 15W 80-275Vin 12Vout 1.25A OF RoHS: Compliant | 80 |
|
$7.8600 / $10.2000 | Buy Now |
|
DISTI #
20001540
|
RECOM Power | 15W AC/DC-Converter 'POWERLINE' OF 4.2kV reg RoHS: Compliant | 150 |
|
$10.3600 | Buy Now |
|
DISTI #
75053856
|
RS | POWER SUPPLY, AC-DC, 15W, OPEN FRAME, 100-240VIN, 12VOUT, RACM15E-K SERIES Min Qty: 18 Package Multiple: 1 Lead time: 26 Weeks, 0 Days Container: Bulk | 0 |
|
$30.9700 / $33.3000 | RFQ |
|
|
Future Electronics | 1 Output 12V 80 to 275 VAC, 120 to 370 VDC Input Open Frame AC/DC Converter RoHS: Compliant pbFree: Yes Min Qty: 18 Package Multiple: 18 Lead time: 26 Weeks Container: Tray | 18Tray |
|
$8.4000 / $8.5900 | Buy Now |
|
|
Onlinecomponents.com | 15W AC/DC Power Supply - 12 VDC - Open Frame - Constant Voltage/Current - +85°C - Connectors COO: China RoHS: Compliant |
18 In Stock 1000 Factory Stock |
|
$7.6700 / $8.7300 | Buy Now |
|
DISTI #
RACM15E-12SK/OF
|
TME | Converter: AC/DC, 15W, Uin: 80÷275VAC, Uout: 12VDC, Iout: 1.25A Min Qty: 1 | 105 |
|
$9.0700 / $11.5200 | Buy Now |
|
DISTI #
RACM15E-12SK/OF
|
Richardson RFPD | DC TO DC CONVERTER MODULE RoHS: Compliant Min Qty: 18 | 0 |
|
$7.3500 | Buy Now |
|
DISTI #
ICACDC1022
|
Rutronik | 15W AC/DC-Converter OF 4.2kV reg RoHS: Compliant Min Qty: 18 Package Multiple: 18 Container: Tray |
Stock DE - 90 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$9.9200 / $11.4800 | Buy Now |
Part Details for RACM15E-12SK/OF
RACM15E-12SK/OF CAD Models
RACM15E-12SK/OF Part Data Attributes
|
|
RACM15E-12SK/OF
RECOM Power GmbH
Buy Now
Datasheet
|
Compare Parts:
RACM15E-12SK/OF
RECOM Power GmbH
AC-DC Regulated Power Supply Module
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Package | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Additional Feature | 120v-370v Additional Dc Input Available | |
| Analog IC - Other Type | Ac-Dc Regulated Power Supply Module | |
| Approvals | Can, Ce, Csa, En, Iec | |
| Efficiency (Main Output) | 84.5% | |
| Input Voltage-Max | 275 V | |
| Input Voltage-Min | 80 V | |
| Input Voltage-Nom | 100 V | |
| JESD-30 Code | R-PXMA-X | |
| Length | 80 Mm | |
| Line Regulation-Max | 0.2% | |
| Load Regulation-Max | 1% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 1.25 A | |
| Output Voltage-Max | 12.24 V | |
| Output Voltage-Min | 11.76 V | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | XMA | |
| Package Shape | Rectangular | |
| Package Style | Din Rail | |
| Protections | Over Load, Over Voltage, Short Circuit | |
| Ripple Voltage (Main Out) | 0.053025 Vrms | |
| Screening Level | En/Iec 62368-1; En 60601-1-2; Iec/En 61000-4-3 | |
| Seated Height-Max | 22 Mm | |
| Surface Mount | No | |
| Technology | Hybrid | |
| Terminal Form | Unspecified | |
| Terminal Position | Unspecified | |
| Total Power Output-Max | 15 W | |
| Trim/Adjustable Output | No | |
| Warm-up Time | 0.6 S | |
| Width | 23.8 Mm |
