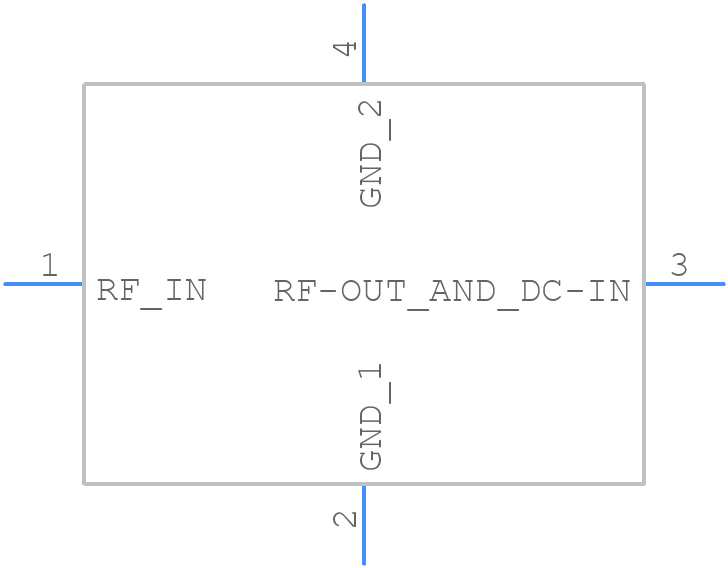

Part Symbol
-

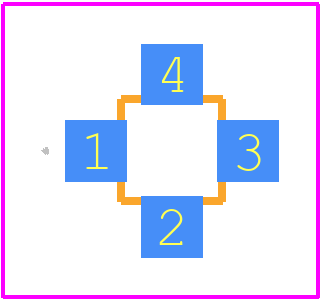

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RAM-8A+ by Mini-Circuits
Results Overview of RAM-8A+ by Mini-Circuits
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RAM-8A+ Information
RAM-8A+ by Mini-Circuits is an RF/Microwave Amplifier.
RF/Microwave Amplifiers are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 27LS03DM/B | Rochester Electronics LLC | 27LS03 - 64-Bit Low-Power Inverting-Output Bipolar RAM | |
| 27LS03/BEA | Rochester Electronics LLC | 27LS03 - 64-Bit Low-Power Inverting-Output Bipolar RAM - Dual marked (8605106EA) | |
| 6802/BQAJC | Rochester Electronics LLC | MC6802 - Microprocessor with Clock and Optional RAM |
Price & Stock for RAM-8A+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3157-RAM-8A+CT-ND
|
DigiKey | SMT LNA, DC - 1000 MHZ, 50 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
339 In Stock |
|
$6.5875 / $9.0100 | Buy Now |
|
DISTI #
139-RAM-8A+
|
Mouser Electronics | RF Amplifier SMT Low Noise Amplifier, DC - 1000 MHz, 50? RoHS: Compliant | 144 |
|
$8.5600 / $9.0100 | Buy Now |
|
|
LCSC | RF Amplifiers RoHS | 12 |
|
$8.2804 / $10.5138 | Buy Now |
Part Details for RAM-8A+
RAM-8A+ CAD Models
RAM-8A+ Part Data Attributes
|
|
RAM-8A+
Mini-Circuits
Buy Now
Datasheet
|
Compare Parts:
RAM-8A+
Mini-Circuits
Wide Band Low Power Amplifier, 0MHz Min, 1000MHz Max
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Additional Feature | Low Noise | |
| Characteristic Impedance | 50 Ω | |
| Construction | Component | |
| Gain | 19 Db | |
| Input Power-Max (CW) | 13 Dbm | |
| JESD-609 Code | e3 | |
| Operating Frequency-Max | 1000 Mhz | |
| Operating Frequency-Min | ||
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -54 °C | |
| RF/Microwave Device Type | Wide Band Low Power | |
| Terminal Finish | Tin (Sn) - With Nickel (Ni) Barrier |
RAM-8A+ Frequently Asked Questions (FAQ)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
The RAM-8A+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network with resistors and capacitors to match the amplifier's impedance to your system's impedance. You can use online impedance matching tools or consult with an RF engineer for assistance.
-
The RAM-8A+ is rated for operation from -40°C to +85°C. However, it's recommended to derate the amplifier's power dissipation at higher temperatures to ensure reliability and prevent thermal runaway. Consult the datasheet for thermal derating guidelines.
-
No, the RAM-8A+ is not designed for use in switching power supplies. It's a linear amplifier and requires a stable, low-noise power supply to operate correctly. Using it in a switching power supply may cause instability, oscillations, or damage to the amplifier.
-
Consult the Mini-Circuits application notes and troubleshooting guides, which provide detailed procedures for identifying and resolving common issues. Additionally, ensure that the amplifier is properly impedance matched, and the power supply is stable and noise-free.
