RPMB5.0-2.0 Information
RPMB5.0-2.0 by RECOM Power GmbH is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for RPMB5.0-2.0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AH5307
|
Newark | Dc-Dc Converter, 5V, 2A, Power Supply Applications:-, Dc/Dc Converter Type:Module, No. Of Outputs:1 Output, Output Power Max:10W, Output Current Max:2A, Dc/Dc Converter Output Type:Fixed, Adjustable, Input Voltage Dc Min:5.5V Rohs Compliant: Yes |Recom Power RPMB5.0-2.0 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$7.2800 / $7.7400 | Buy Now |
|
DISTI #
945-RPMB5.0-2.0CT-ND
|
DigiKey | DC DC CONVERTER 5V Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
713 In Stock |
|
$6.2741 / $7.4600 | Buy Now |
|
DISTI #
919-RPMB5.0-2.0
|
Mouser Electronics | DC/DC Converters - SMD 5.5-36Vi 5Vo 2A 1-9VTrim Reg RoHS: Compliant | 181 |
|
$6.1200 / $7.4600 | Buy Now |
|
DISTI #
80099372
|
RECOM Power | 2A DC/DC-Converter 'INNOLINE' SMD reg RoHS: Compliant | 713 |
|
$7.4600 | Buy Now |
|
DISTI #
71886657
|
RS | DC-DC CONVERTER, ENCAPSULATED, SMD, 5V@2A, 5.5-36V IN, RPMB-2.0 SERIES Min Qty: 500 Package Multiple: 1 Lead time: 10 Weeks, 0 Days Container: Bulk | 0 |
|
$7.4500 / $8.0100 | RFQ |
|
|
Future Electronics | RoHS: Compliant pbFree: Yes Min Qty: 500 Package Multiple: 500 Lead time: 10 Weeks Container: Reel | 0Reel |
|
$6.0500 | Buy Now |
|
|
Onlinecomponents.com | Non-Isolated DC/DC Converters 5.5-36Vi 5Vo 2A 1-9V Trim Reg COO: Thailand RoHS: Compliant |
231 In Stock 459 Factory Stock |
|
$5.7700 / $6.1100 | Buy Now |
|
DISTI #
RPMB5.0-2.0
|
Richardson RFPD | DC TO DC CONVERTER MODULE RoHS: Compliant Min Qty: 500 | 0 |
|
$5.2900 | Buy Now |
|
DISTI #
ICDCDC5384
|
Rutronik | SwitchReg 5,5-36V to 5.0V 2A SMD RoHS: Compliant Min Qty: 500 Package Multiple: 500 Container: Tape & Reel |
Stock DE - 500 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$7.4900 | Buy Now |
|
DISTI #
000000000006089047
|
Sager | Non-Isolated DC/DC Converters 5.5-36Vi 5Vo 2A 1-9VTrim Reg Min Qty: 1 | 1000 |
|
$6.0600 / $7.0700 | Buy Now |
Part Details for RPMB5.0-2.0

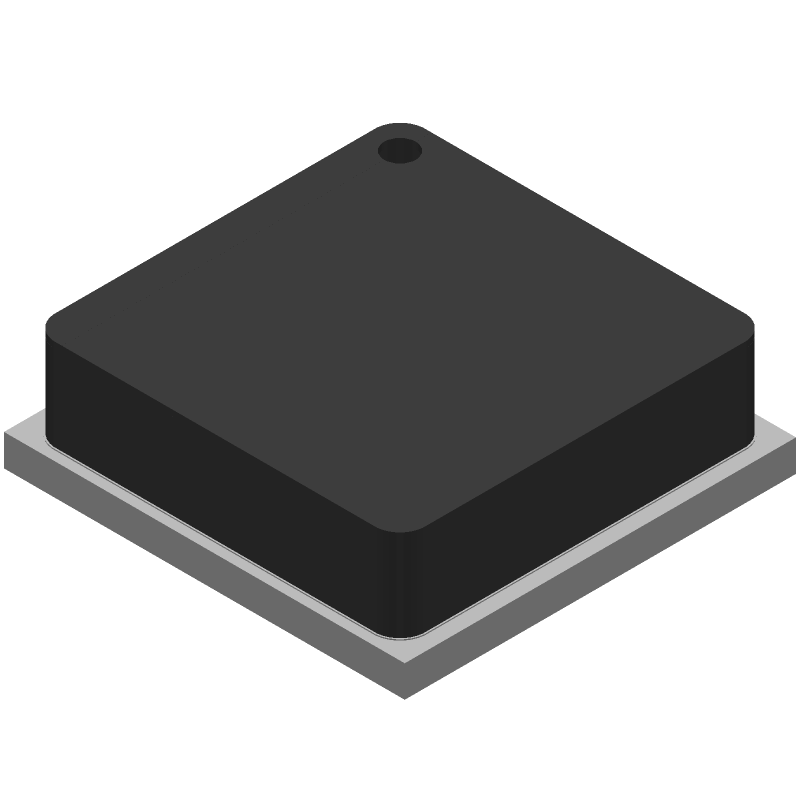

RPMB5.0-2.0 CAD Models
