S05B-PASK-2 Information
S05B-PASK-2 by JST Manufacturing is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for S05B-PASK-2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
455-S05B-PASK-2-ND
|
DigiKey | CONN HEADER R/A 5POS 2MM Min Qty: 1 Lead time: 16 Weeks Container: Bulk |
8226 In Stock |
|
$0.1935 / $0.3700 | Buy Now |
|
|
Bristol Electronics | 1000 |
|
RFQ | ||
|
|
Quest Components | 800 |
|
$0.6000 / $1.5000 | Buy Now |
US Tariff Estimator: S05B-PASK-2 by JST Manufacturing
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for S05B-PASK-2
S05B-PASK-2 CAD Models
-
Part Symbol
-
Footprint
-

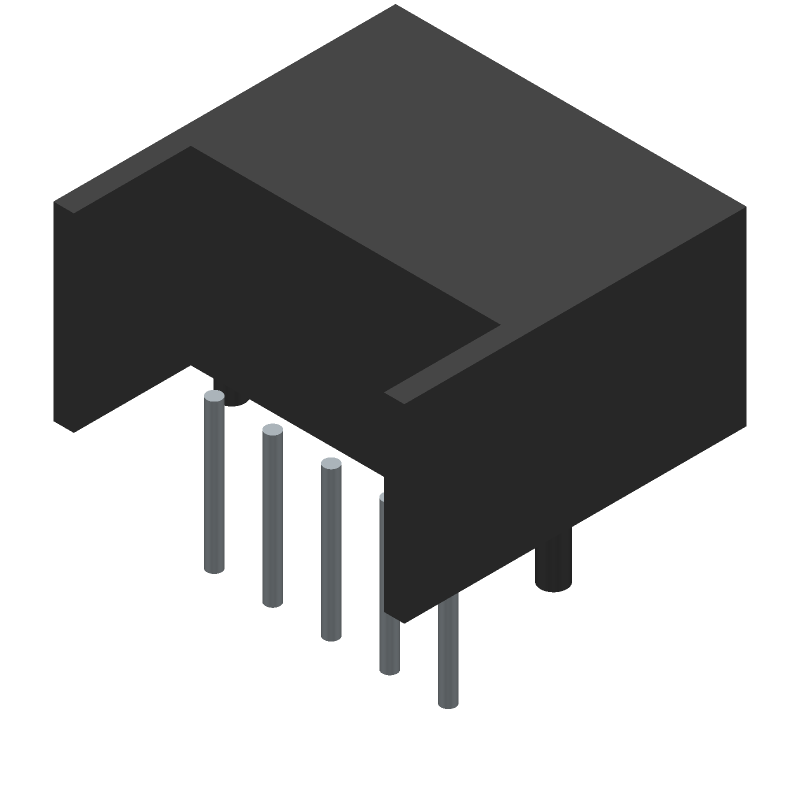

3D Model
