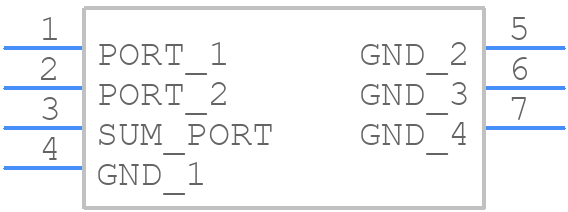

Part Symbol
-

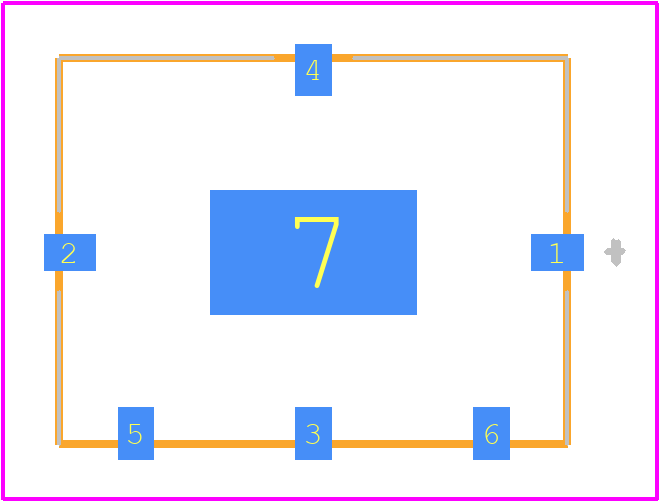

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SCRP-2-682W+ by Mini-Circuits
Results Overview of SCRP-2-682W+ by Mini-Circuits
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SCRP-2-682W+ Information
SCRP-2-682W+ by Mini-Circuits is an RF/Microwave Splitter/Combiner.
RF/Microwave Splitter/Combiners are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for SCRP-2-682W+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3157-SCRP-2-682W+CT-ND
|
DigiKey | RF PWR DVDR 0 HZ-6.8GHZ 6SMD Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
246 In Stock |
|
$25.3875 / $37.4400 | Buy Now |
|
DISTI #
139-SCRP-2-682W
|
Mouser Electronics | Signal Conditioning PWR SPLTR CMBD / SURF MT /RoHS RoHS: Compliant | 90 |
|
$24.7700 / $37.4400 | Buy Now |
|
|
LCSC | 0Hz6.8GHz 0.8dB SMD-6P12.7x9.7mm RF Power Dividers/Splitters RoHS | 4 |
|
$32.7502 / $34.5354 | Buy Now |
Part Details for SCRP-2-682W+
SCRP-2-682W+ CAD Models
SCRP-2-682W+ Part Data Attributes
|
|
SCRP-2-682W+
Mini-Circuits
Buy Now
Datasheet
|
Compare Parts:
SCRP-2-682W+
Mini-Circuits
Splitter, 0MHz Min, 6800MHz Max, 1.6dB Insertion Loss-Max
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Unknown | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2017-02-16 | |
| Characteristic Impedance | 50 Ω | |
| Construction | Component | |
| Input Power-Max (CW) | 26.99 Dbm | |
| Insertion Loss-Max | 1.6 Db | |
| Isolation-Min | 17 Db | |
| Mounting Feature | Surface Mount | |
| Number of Terminals | 6 | |
| Operating Frequency-Max | 6800 Mhz | |
| Operating Frequency-Min | ||
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| RF/Microwave Device Type | Splitter | |
| Surface Mount | Yes | |
| VSWR-Max | 2.2 |
SCRP-2-682W+ Frequently Asked Questions (FAQ)
-
Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground plane under the amplifier. A low-inductance path to the ground plane is crucial. Refer to the application note AN-60-014 for more details.
-
The SCRP-2-682W+ requires a bias voltage of +12V to +15V and a bias current of 350mA to 400mA. Ensure the bias voltage is well-regulated and the bias current is limited to prevent overheating. A bias tee or a dedicated bias circuit is recommended.
-
The maximum safe operating temperature for the SCRP-2-682W+ is 85°C. Operating the amplifier above this temperature can reduce its lifespan and affect its performance.
-
Yes, the SCRP-2-682W+ can be used in a push-pull configuration to achieve higher power output and improved linearity. However, this requires careful design and layout consideration to ensure proper phasing and impedance matching.
-
The recommended input and output matching network depends on the specific application and frequency range. Mini-Circuits provides a general guideline in the datasheet, but it's recommended to consult with their application engineers or use simulation tools to optimize the matching network for your specific use case.
