SDI18-12-U-P5 Information
SDI18-12-U-P5 by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for SDI18-12-U-P5
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
25AM1682
|
Newark | Ac-Dc, 12 Vdc, 1.6 A, Sw, C14 Desk-Top, P5 Center |Cui SDI18-12-U-P5 RoHS: Not Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Bulk | 1108 |
|
$14.2800 / $16.2600 | Buy Now |
|
DISTI #
490-SDI18-12-U-P5
|
Mouser Electronics | Desktop AC Adapters 19.2W 12V 1.6A C14 2.1 cent + Level VI RoHS: Compliant | 101 |
|
$13.2000 / $18.3300 | Buy Now |
|
|
Future Electronics | SDI18-U Series 19.2 W 12 V Single Output Desktop Level VI 3 Prong AC/DC Adapter RoHS: Compliant pbFree: Yes Min Qty: 540 Package Multiple: 60 Lead time: 17 Weeks Container: Box | 0Box |
|
$12.9500 / $13.6000 | Buy Now |
|
|
Onlinecomponents.com | AC/DC Adapter - Desktop - 19.2 Watts: 12V @ 1.6A - C14 Input - Lvl VI/T2 COO: China RoHS: Compliant |
910 In Stock |
|
$12.8800 / $16.4700 | Buy Now |
|
DISTI #
91010868
|
Verical | Plug-In Adapter Single-OUT 12V 1.6A 19.2W RoHS: Compliant Min Qty: 5 Package Multiple: 5 Date Code: 1831 | Americas - 70 |
|
$17.0473 / $19.9636 | Buy Now |
|
DISTI #
91010868
|
Verical | Plug-In Adapter Single-OUT 12V 1.6A 19.2W COO: China RoHS: Compliant Min Qty: 5 Package Multiple: 5 Date Code: 1831 | Americas - 70 |
|
$17.0473 / $19.9636 | Buy Now |
|
DISTI #
000000000006363069
|
Sager | Desktop AC Adapters 19.2W 12V 1.6A C14 2.1 cent + Level VI Min Qty: 1 | 0 |
|
$13.2900 / $15.3400 | Buy Now |
|
DISTI #
91010868
|
Verical | Plug-In Adapter Single-OUT 12V 1.6A 19.2W COO: China RoHS: Compliant Min Qty: 5 Package Multiple: 5 Date Code: 1831 | Americas - 70 |
|
$17.0473 / $19.9636 | Buy Now |
|
|
Master Electronics | AC/DC Adapter - Desktop - 19.2 Watts: 12V @ 1.6A - C14 Input - Lvl VI/T2 COO: China RoHS: Compliant |
910 In Stock |
|
$12.8800 / $16.4700 | Buy Now |
|
|
Neutron USA | Desktop AC Adapters 19.2W 12V 1.6A C14 2.1 cent + Level VI | 0 |
|
$61.3200 | Buy Now |
Part Details for SDI18-12-U-P5

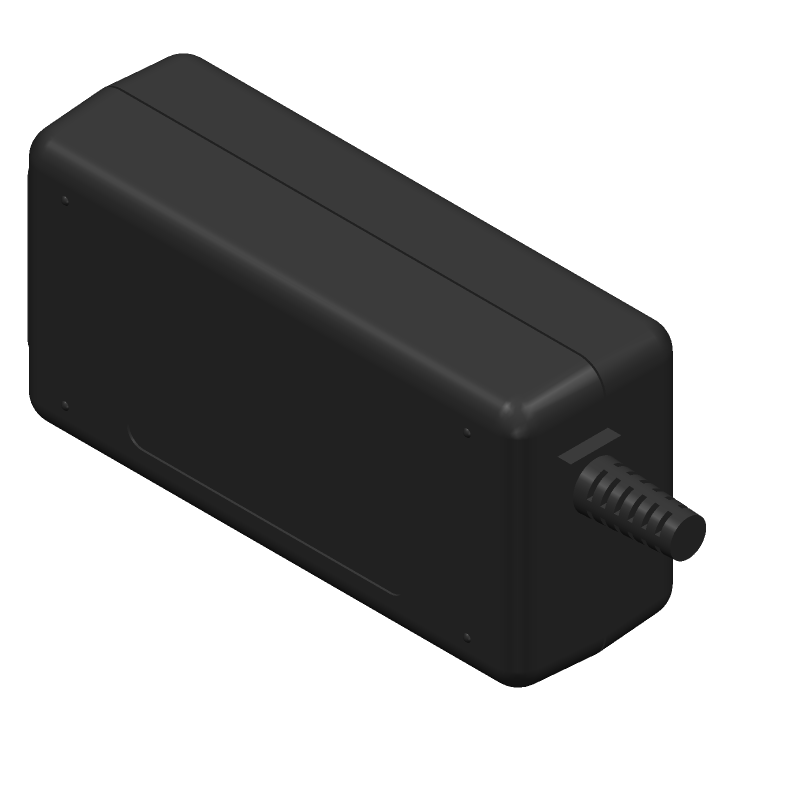

SDI18-12-U-P5 CAD Models
SDI18-12-U-P5 Part Data Attributes
|
|
SDI18-12-U-P5
CUI Inc
Buy Now
Datasheet
|
Compare Parts:
SDI18-12-U-P5
CUI Inc
AC-DC Regulated Power Supply Module, 1 Output, 19.2W, Hybrid
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Package Description | Xma, | |
| Reach Compliance Code | Unknown | |
| ECCN Code | EAR99 | |
| Analog IC - Other Type | Ac-Dc Regulated Power Supply Module | |
| Approvals | Ce, Fcc, Lps, Pse, Ukca, Ul | |
| Input Voltage-Max | 264 V | |
| Input Voltage-Min | 90 V | |
| Input Voltage-Nom | 100 V | |
| JESD-30 Code | R-XXMA-X | |
| Length | 100 Mm | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Operating Temperature-Max | 40 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 1.6 A | |
| Output Voltage-Max | 12.6 V | |
| Output Voltage-Min | 11.4 V | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | Unspecified | |
| Package Code | XMA | |
| Package Shape | Rectangular | |
| Package Style | Microelectronic Assembly | |
| Protections | Output Over Voltage; Output Over Current; Short Circuit | |
| Ripple Voltage (Main Out) | 0.04242 Vrms | |
| Screening Level | Ul 62368-1 | |
| Surface Mount | No | |
| Technology | Hybrid | |
| Terminal Form | Unspecified | |
| Terminal Position | Unspecified | |
| Total Power Output-Max | 19.2 W | |
| Trim/Adjustable Output | No | |
| Width | 50 Mm |
