SDM36-24-UDC-P5 by:
CUI Inc

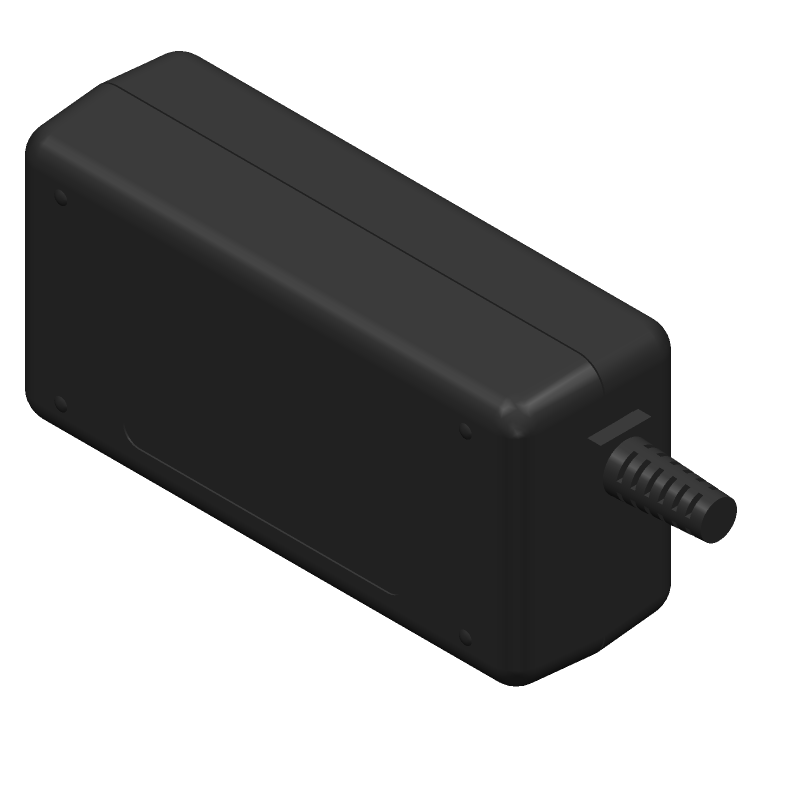

AC-DC Regulated Power Supply Module, 1 Output, 36W, Hybrid

Part Details for SDM36-24-UDC-P5 by CUI Inc

Results Overview of SDM36-24-UDC-P5 by CUI Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Environmental Monitoring Internet of Things (IoT) Smart Cities Agriculture Technology Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Medical Imaging Consumer Electronics Education and Research Security and Surveillance Aerospace and Defense Healthcare Robotics and Drones

SDM36-24-UDC-P5 Information

SDM36-24-UDC-P5 by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for SDM36-24-UDC-P5

Part # Distributor Description Stock Price Buy
DISTI # 25AM1789
Newark 5 Vdc 6 A 30 W |Cui SDM36-24-UDC-P5 RoHS: Not Compliant Min Qty: 6 Package Multiple: 1 Date Code: 0 Container: Bulk 480
  • 1 $26.9600
$26.9600 Buy Now
DISTI # 490-SDM36-24-UDC-P5
Mouser Electronics Desktop AC Adapters 36W 24V 1.5A Medical 2.1x5.5 C8 NA cable RoHS: Compliant 0
  • 540 $26.1700
$26.1700 Order Now
Future Electronics ac-dc, 24 Vdc, 1.5 A, SW, C8 desk-top, P5 NA input cord, level VI RoHS: Compliant pbFree: Yes Min Qty: 540 Package Multiple: 30 Lead time: 17 Weeks Container: Box 0
Box
  • 30 $22.9800
$22.9800 Buy Now
Onlinecomponents.com AC/DC Adapter - Desktop - 36 Watts: 24V @ 1.5A - Medical - C14 Input - Lvl VI COO: China RoHS: Compliant 480 Partner Stock
  • 6 $67.6500
  • 25 $66.6400
  • 50 $65.6400
  • 100 $64.6500
  • 135 $63.6800
  • 270 $33.6100
  • 405 $23.1100
  • 540 $22.6500
$22.6500 / $67.6500 Buy Now
DISTI # SDM36-24-UDC-P5
IBS Electronics AC-DC 24 VDC 1.5 A SW C8 DESK-TOP P5 NA INPUT CORD LEVEL VI Min Qty: 6 Package Multiple: 1 480
  • 6 $23.6250
  • 15 $23.1875
  • 29 $22.7500
  • 57 $22.3125
$22.3125 / $23.6250 Buy Now
DISTI # 000000000006364317
Sager Desktop AC Adapters 36W 24V 1.5A Medical 2.1x5.5 C8 NA cable Min Qty: 1 0
  • 1 $27.2200
  • 10 $25.6400
  • 20 $24.5700
  • 100 $23.5900
$23.5900 / $27.2200 Buy Now
Master Electronics AC/DC Adapter - Desktop - 36 Watts: 24V @ 1.5A - Medical - C14 Input - Lvl VI COO: China RoHS: Compliant 480 Partner Stock
  • 6 $67.6500
  • 25 $66.6400
  • 50 $65.6400
  • 100 $64.6500
  • 135 $63.6800
  • 270 $33.6100
  • 405 $23.1100
  • 540 $22.6500
$22.6500 / $67.6500 Buy Now
Neutron USA Plug-In Adapter Single-OUT 24V 1.5A 36W Box 0
  • 1 $108.6400
$108.6400 Buy Now

Part Details for SDM36-24-UDC-P5

SDM36-24-UDC-P5 Part Data Attributes

Parametric Data
SDM36-24-UDC-P5 CUI Inc
Buy Now Datasheet
Compare Parts:
SDM36-24-UDC-P5 CUI Inc AC-DC Regulated Power Supply Module, 1 Output, 36W, Hybrid
Rohs Code Yes
Part Life Cycle Code Transferred
Package Description Xma,
Reach Compliance Code Compliant
ECCN Code EAR99
Analog IC - Other Type Ac-Dc Regulated Power Supply Module
Approvals Ul, Cul, Tuv
Input Voltage-Max 264 V
Input Voltage-Min 90 V
Input Voltage-Nom 230 V
JESD-30 Code R-XXMA-X
Length 99 Mm
Number of Functions 1
Number of Outputs 1
Operating Temperature-Max 40 °C
Operating Temperature-Min
Output Current-Max 1.5 A
Output Voltage-Max 25.2 V
Output Voltage-Min 22.8 V
Output Voltage-Nom 24 V
Package Body Material Unspecified
Package Code XMA
Package Shape Rectangular
Package Style Microelectronic Assembly
Peak Reflow Temperature (Cel) Not Specified
Protections Over Current, Over Voltage, Short Circuit Protection
Ripple Voltage (Main Out) 0.08484 Vrms
Screening Level Iec 60601-1
Seated Height-Max 34 Mm
Surface Mount No
Technology Hybrid
Terminal Form Unspecified
Terminal Position Unspecified
Time@Peak Reflow Temperature-Max (s) Not Specified
Total Power Output-Max 36 W
Trim/Adjustable Output No
Width 50 Mm

Alternate Parts for SDM36-24-UDC-P5

This table gives cross-reference parts and alternative options found for SDM36-24-UDC-P5. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SDM36-24-UDC-P5, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SDI36-24-U-P5 CUI Inc $15.5172 AC-DC Regulated Power Supply Module, 1 Output, 36W, Hybrid SDM36-24-UDC-P5 vs SDI36-24-U-P5
SDM36-24-UD-P5 CUI Inc $20.0100 AC-DC Regulated Power Supply Module, 1 Output, 36W, Hybrid SDM36-24-UDC-P5 vs SDM36-24-UD-P5
SDM36-24-UD-ST CUI Inc Check for Price AC-DC Regulated Power Supply Module, 1 Output, 36W, Hybrid SDM36-24-UDC-P5 vs SDM36-24-UD-ST
SDI36-24-UC-P5 CUI Inc Check for Price AC-DC Regulated Power Supply Module, 1 Output, 36W, Hybrid SDM36-24-UDC-P5 vs SDI36-24-UC-P5
SDI36-24-UC-P6R CUI Inc Check for Price AC-DC Regulated Power Supply Module, 1 Output, 36W, Hybrid SDM36-24-UDC-P5 vs SDI36-24-UC-P6R
SDI36-24-U2-P5 CUI Inc Check for Price AC-DC Regulated Power Supply Module, 1 Output, 36W, Hybrid SDM36-24-UDC-P5 vs SDI36-24-U2-P5
SDI36-24-U-ST CUI Inc Check for Price AC-DC Regulated Power Supply Module, 1 Output, 36W, Hybrid SDM36-24-UDC-P5 vs SDI36-24-U-ST
SDM36-24-UD2-P6 CUI Inc Check for Price AC-DC Regulated Power Supply Module, 1 Output, 36W, Hybrid SDM36-24-UDC-P5 vs SDM36-24-UD2-P6
SDI36-24-U-P6R CUI Inc Check for Price AC-DC Regulated Power Supply Module, 1 Output, 36W, Hybrid SDM36-24-UDC-P5 vs SDI36-24-U-P6R
SDI36-24-U2-P5R CUI Inc Check for Price AC-DC Regulated Power Supply Module, 1 Output, 36W, Hybrid SDM36-24-UDC-P5 vs SDI36-24-U2-P5R
