SER2013-202MLD Information
SER2013-202MLD by Coilcraft Inc is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for SER2013-202MLD
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2457-SER2013-202MLD-ND
|
DigiKey | FIXED IND 2UH 30A 1.82MOHM SM Min Qty: 1 Container: Strip MARKETPLACE PRODUCT |
134 In Stock |
|
$3.1500 / $4.6200 | Buy Now |
|
DISTI #
994-SER2013-202MLD
|
Mouser Electronics | Power Inductors - SMD 2uH Shld 20% 30A 1.82mOhms AECQ2 RoHS: Compliant | 97 |
|
$2.8300 / $5.1100 | Buy Now |
|
|
Coilcraft Direct | Power inductor, high current, 20% tol, SMT, RoHS RoHS: Compliant pbFree: No Min Qty: 1 | 168 |
|
$1.4300 / $3.0800 | Buy Now |
US Tariff Estimator: SER2013-202MLD by Coilcraft Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SER2013-202MLD
SER2013-202MLD CAD Models
-

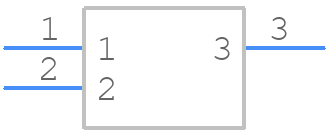

Part Symbol
-

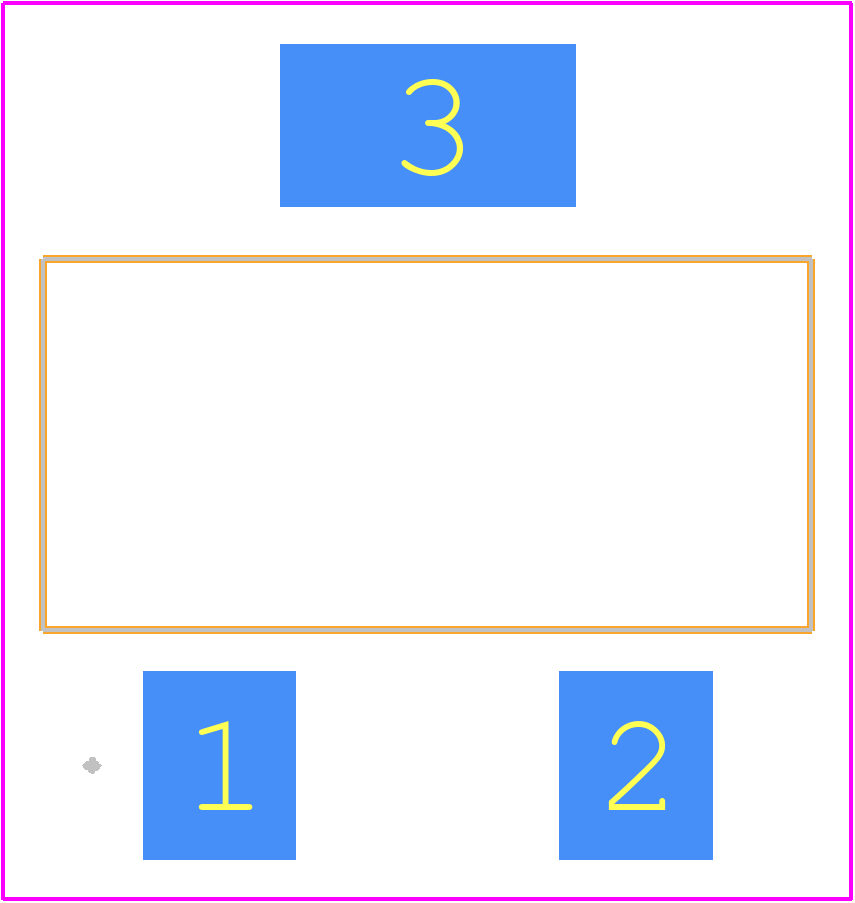

Footprint
