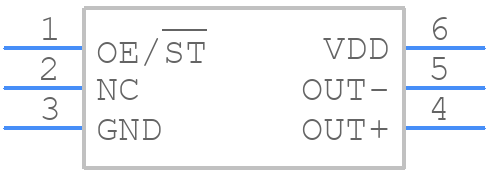

Part Symbol
-

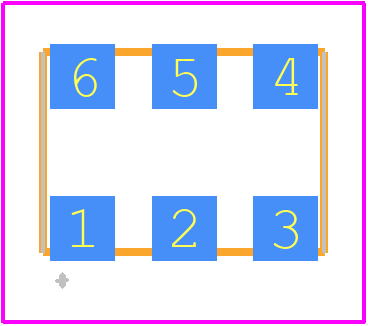

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SIT9120AI-2D3-25E200.000000X by SiTime Corporation
Results Overview of SIT9120AI-2D3-25E200.000000X by SiTime Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (10 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
SIT9120AI-2D3-25E200.000000X Information
SIT9120AI-2D3-25E200.000000X by SiTime Corporation is an XO.
XO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for SIT9120AI-2D3-25E200.000000X
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
52AC6601
|
Newark | Mems Oscillator, 200Mhz, 7X5Mm, Lvds, Frequency Nom:200Mhz, Oscillator Case:Smd, 7Mm X 5Mm, Frequency Stability +/-:50Ppm, Supply Voltage Nom:2.5V, Product Range:Sit9120 Series, Oscillator Output Compatibility:Lvds, Operating Rohs Compliant: Yes |Sitime SIT9120AI-2D3-25E200.000000X RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 190 |
|
$4.3800 / $6.1400 | Buy Now |
|
DISTI #
SIT9120AI-2D3-25E200.000000X
|
Avnet Americas | MEMS Oscillator, 200 MHz, SMD, 7mm x 5mm, 50 ppm, 2.5 V, SiT9120, LVDS - Tape and Reel (Alt: SIT9120AI-2D3-25E200.000000X) COO: Thailand RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$3.0229 | Buy Now |
|
|
Rochester Electronics | LVDS Output Clock Oscillator, 200MHz Nom RoHS: Compliant Status: Active Min Qty: 1 | 180 |
|
$2.2200 / $2.7800 | Buy Now |
|
DISTI #
SIT9120AI-2D3-25E200.000000X
|
Avnet Silica | MEMS Oscillator 200 MHz SMD 7mm x 5mm 50 ppm 25 V SiT9120 LVDS (Alt: SIT9120AI-2D3-25E200.000000X) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 8 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for SIT9120AI-2D3-25E200.000000X
SIT9120AI-2D3-25E200.000000X CAD Models
SIT9120AI-2D3-25E200.000000X Part Data Attributes
|
|
SIT9120AI-2D3-25E200.000000X
SiTime Corporation
Buy Now
Datasheet
|
Compare Parts:
SIT9120AI-2D3-25E200.000000X
SiTime Corporation
LVDS Output Clock Oscillator, 200MHz Nom,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Compliant | |
| Factory Lead Time | 12 Weeks | |
| Additional Feature | Enable/Disable Function; Complimentary Output | |
| Fall Time-Max | 0.6 Ns | |
| Frequency Adjustment-Mechanical | No | |
| Frequency Stability | 50% | |
| JESD-609 Code | e4 | |
| Mounting Feature | Surface Mount | |
| Number of Terminals | 6 | |
| Operating Frequency-Nom | 200 Mhz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | Lvds | |
| Output Load | 100 Ohm | |
| Package Body Material | Plastic | |
| Package Equivalence Code | DILCC6,.2 | |
| Physical Dimension | 7mm X 5mm X 0.9mm | |
| Rise Time-Max | 0.6 Ns | |
| Supply Current-Max | 55 Ma | |
| Supply Voltage-Max | 2.75 V | |
| Supply Voltage-Min | 2.25 V | |
| Supply Voltage-Nom | 2.5 V | |
| Surface Mount | Yes | |
| Symmetry-Max | 55/45 % | |
| Terminal Finish | Nickel Palladium Gold |
Alternate Parts for SIT9120AI-2D3-25E200.000000X
This table gives cross-reference parts and alternative options found for SIT9120AI-2D3-25E200.000000X. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SIT9120AI-2D3-25E200.000000X, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
SIT9120AI-2D3-25E200.000000X Frequently Asked Questions (FAQ)
-
SiTime recommends a 4-layer PCB with a solid ground plane, and to keep the oscillator away from high-frequency signals and noise sources. A good layout should also minimize the distance between the oscillator and the crystal, and use a low-impedance path for the crystal connections.
-
The SIT9120AI-2D3-25E200.000000X has a CMOS output stage and requires a 15pF to 30pF load capacitance for proper termination. A 15pF capacitor to VCC and a 15pF capacitor to GND are recommended for optimal signal integrity.
-
SiTime recommends powering up the VCC pin first, followed by the enable pin (EN). This ensures that the oscillator is properly initialized and stabilized before enabling the output.
-
The SIT9120AI-2D3-25E200.000000X has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and handle the device by the package body, not the pins.
-
The SIT9120AI-2D3-25E200.000000X is specified to operate from -40°C to +85°C, but it's recommended to derate the frequency stability and jitter performance at extreme temperatures.
