Part Details for SLF7045T-680MR60-PF by TDK Corporation
Results Overview of SLF7045T-680MR60-PF by TDK Corporation
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Smart Cities
Energy and Power Systems
Healthcare
Agriculture Technology
Telecommunications
Automotive
SLF7045T-680MR60-PF Information
SLF7045T-680MR60-PF by TDK Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for SLF7045T-680MR60-PF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
99Y2445
|
Newark | Inductor, 68Uh, 20%, 0.6A, Smd, Inductance:68Μh, Rms Current (Irms):770Ma, Inductor Construction:Wirewound, Saturation Current (Isat):600Ma, Product Range:Slf Series, Power Inductor Case:7Mm X 7Mm X 4.5Mm, Dc Resistance Max:0.175Ohm, rohs Compliant: Yes |Tdk SLF7045T-680MR60-PF RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
Buy Now | |
|
DISTI #
53W1857
|
Newark | Surface Mount Power Inductor, Slf Series, 68 H, 20%, Wirewound, 0.175 Ohm, 770 Ma Rohs Compliant: Yes |Tdk SLF7045T-680MR60-PF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.3480 / $0.9070 | Buy Now |
|
DISTI #
445-2027-1-ND
|
DigiKey | FIXED IND 68UH 770MA 210MOHM SMD Min Qty: 1 Lead time: 52 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
34692 In Stock |
|
$0.3500 / $0.7700 | Buy Now |
|
DISTI #
SLF7045T-680MR60-PF
|
Avnet Americas | - Tape and Reel (Alt: SLF7045T-680MR60-PF) COO: China RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 52 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.3395 / $0.4004 | Buy Now |
|
DISTI #
810-SLF7045T-680M
|
Mouser Electronics | Power Inductors - SMD RECOMMENDED ALT 810-VLS6045EX-101M-H RoHS: Compliant | 0 |
|
Order Now | |
|
|
Onlinecomponents.com | Inductor Power Shielded Wirewound 68uH 20% 100KHz Ferrite 770mA 210mOhm DCR T/R COO: Philippines RoHS: Compliant |
73819 Partner Stock |
|
$0.1490 / $0.1760 | Buy Now |
|
DISTI #
30594144
|
Verical | Inductor Power Shielded Wirewound 68uH 20% 100KHz Ferrite 0.77A 0.21Ohm DCR T/R RoHS: Compliant Min Qty: 145 Package Multiple: 1 | Americas - 785 |
|
$0.4670 / $0.6930 | Buy Now |
|
|
Bristol Electronics | Min Qty: 11 | 2000 |
|
$0.1287 / $0.4597 | Buy Now |
|
|
Bristol Electronics | Min Qty: 4 | 270 |
|
$0.4800 / $1.5000 | Buy Now |
|
|
Quest Components | GENERAL PURPOSE INDUCTOR, 68UH, 20%, 1 ELEMENT, FERRITE-CORE, SMD, 2828 | 1816 |
|
$0.5000 / $2.0000 | Buy Now |
US Tariff Estimator: SLF7045T-680MR60-PF by TDK Corporation
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SLF7045T-680MR60-PF
SLF7045T-680MR60-PF CAD Models
-
Part Symbol
-

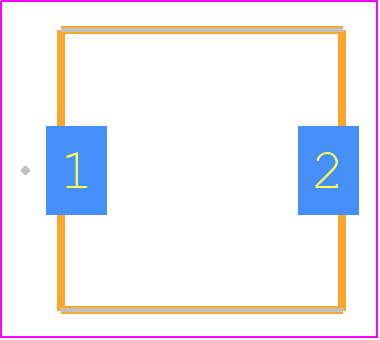

Footprint
-

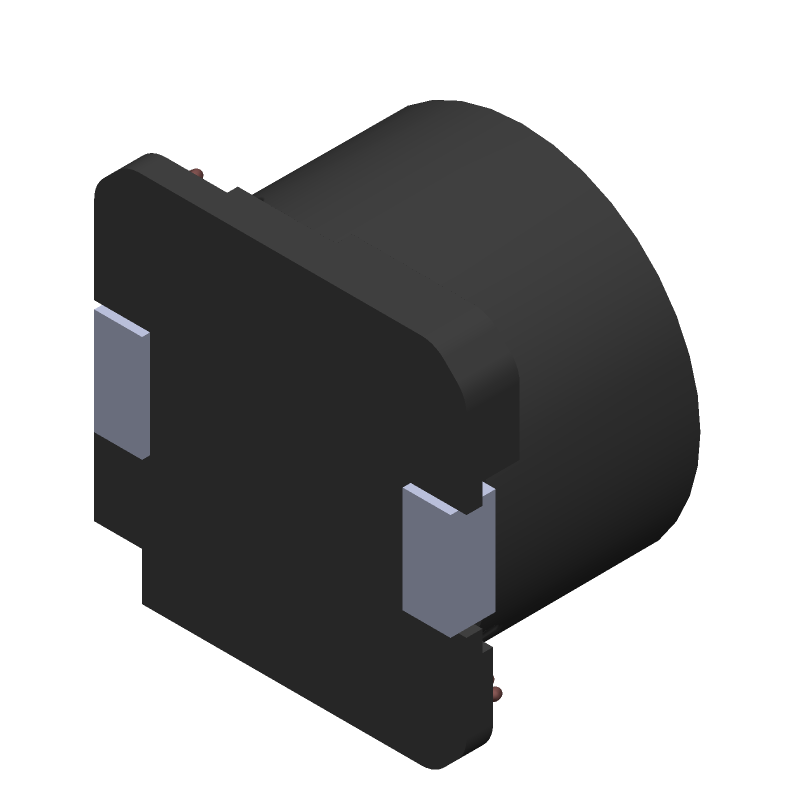

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SLF7045T-680MR60-PF Part Data Attributes
|
|
SLF7045T-680MR60-PF
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
SLF7045T-680MR60-PF
TDK Corporation
General Purpose Inductor, 68uH, 20%, 1 Element, Ferrite-Core, SMD, 2828, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Package Description | Chip | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 52 Weeks | |
| Case/Size Code | 2828 | |
| Construction | Rectangular | |
| Core Material | Ferrite | |
| DC Resistance | 0.175 Ω | |
| Inductance-Nom (L) | 68 µH | |
| Inductor Application | Power Inductor | |
| Inductor Type | General Purpose Inductor | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 4.5 Mm | |
| Package Length | 7 Mm | |
| Package Style | Smt | |
| Package Width | 7 Mm | |
| Packing Method | Tr, Embossed Plastic, 13 Inch | |
| Rated Current-Max | 0.77 A | |
| Shape/Size Description | Rectangular Package | |
| Shielded | Yes | |
| Special Feature | Dcr Is Measured At 20 % Tolerance | |
| Surface Mount | Yes | |
| Terminal Finish | Tin Over Nickel | |
| Terminal Placement | Dual Ended | |
| Terminal Shape | Wraparound | |
| Test Frequency | 0.1 Mhz | |
| Tolerance | 20% |
SLF7045T-680MR60-PF Frequently Asked Questions (FAQ)
-
The recommended land pattern for SLF7045T-680MR60-PF can be found in the TDK Corporation's application note or in the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
-
Handle the component by the body, avoiding touching the leads or the component's electrical contacts. Use anti-static wrist straps, mats, or other ESD protection devices to prevent electrostatic discharge damage. Avoid bending or flexing the leads, and use a vacuum pickup or tweezers to handle the component during assembly.
-
The maximum allowable voltage derating for SLF7045T-680MR60-PF is typically 80% of the rated voltage. However, it's recommended to consult with TDK Corporation's application engineers or refer to the device's datasheet for specific derating guidelines.
-
SLF7045T-680MR60-PF is rated for operation up to 125°C. However, it's essential to consider the component's power dissipation, thermal resistance, and the PCB's thermal design to ensure reliable operation in high-temperature environments.
-
The ESR of SLF7045T-680MR60-PF can be determined by measuring the impedance of the component at high frequencies (e.g., 100 kHz) using an impedance analyzer or a network analyzer. The ESR value can also be obtained from TDK Corporation's application notes or by consulting with their application engineers.
