SMBJ85CA Information
SMBJ85CA by Bourns Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMBJ85CA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64AH8641
|
Newark | Tvs Diode, 600W, 85V, Bidir, Do-214Aa, Product Range:Smbj Series, Tvs Polarity:Bidirectional, Reverse Stand-Off Voltage Vrwm:85V, Clamping Voltage Vc Max:137V, Diode Case Style:Do-214Aa, No. Of Pins:2Pins, Breakdown Voltage Rohs Compliant: Yes |Bourns SMBJ85CA RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3354 |
|
$0.1910 / $0.4100 | Buy Now |
|
DISTI #
67R0217
|
Newark | Diode, Full Reel, Product Range:Smbj Series, Tvs Polarity:Bidirectional, Reverse Standoff Voltage:85V, Clamping Voltage Max:137V, Diode Case Style:Do-214Aa (Smb), No. Of Pins:2Pins, Minimum Breakdown Voltage:94.4V, Qualification:- Rohs Compliant: Yes |Bourns SMBJ85CA RoHS: Compliant Min Qty: 12000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1280 / $0.1590 | Buy Now |
|
DISTI #
SMBJ85CA
|
Avnet Americas | Diode TVS Single Bi-Dir 85V 600W 2-Pin SMB - Tape and Reel (Alt: SMBJ85CA) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.0616 / $0.0937 | Buy Now |
|
DISTI #
71279606
|
RS | DIO TVS VWM 85V 600W BIDIR SMB Min Qty: 12000 Package Multiple: 1 Lead time: 18 Weeks, 0 Days Container: Bulk | 0 |
|
$0.1290 / $0.1430 | RFQ |
|
|
Bristol Electronics | Min Qty: 15 | 15000 |
|
$0.0456 / $0.3375 | Buy Now |
|
DISTI #
SMBJ85CA-BOU
|
TME | Diode: TVS, 0.6kW, 94.4÷104V, 4.4A, bidirectional, ±5%, SMB, SMBJ Min Qty: 1 | 0 |
|
$0.0900 / $0.3800 | RFQ |
|
DISTI #
SMC-SMBJ85CA
|
Sensible Micro Corporation | XDIO TVS 85V 600W Bi-directi RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1737 Container: Tape & Reel | 902 |
|
RFQ | |
|
DISTI #
SMBJ85CA
|
Avnet Abacus | Diode TVS Single BiDir 85V 600W 2Pin SMB - Tape and Reel (Alt: SMBJ85CA) RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 17 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
|
Chip Stock | TransVoltageSuppressorDiode,600W,85VV(RWM),Bidirectional,1Element,Silicon,DO-214AA | 555 |
|
RFQ | |
|
|
Win Source Electronics | TVS DIODE 85VWM 137VC DO214AA | 430 |
|
$0.0297 / $0.0445 | Buy Now |
US Tariff Estimator: SMBJ85CA by Bourns Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SMBJ85CA

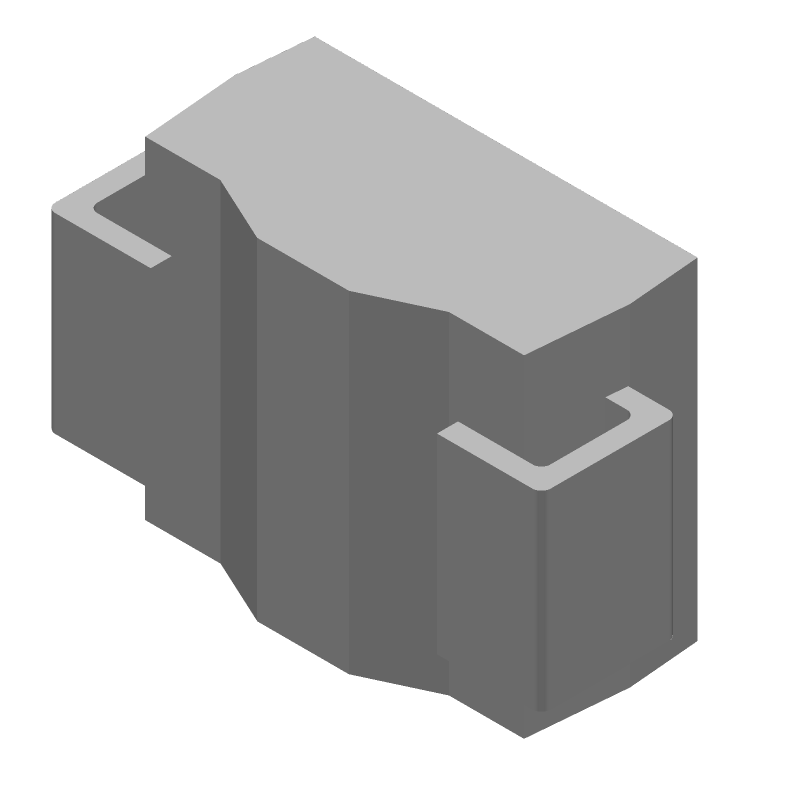

SMBJ85CA CAD Models
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SMBJ85CA Part Data Attributes
|
|
SMBJ85CA
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
SMBJ85CA
Bourns Inc
Trans Voltage Suppressor Diode, 600W, 85V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Part Package Code | DO-214AA | |
| Package Description | SMB, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Additional Feature | PRSM-MIN | |
| Breakdown Voltage-Max | 104 V | |
| Breakdown Voltage-Min | 94.4 V | |
| Breakdown Voltage-Nom | 99.2 V | |
| Clamping Voltage-Max | 137 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 5 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-61000-4-2, 4-4, 4-5 | |
| Rep Pk Reverse Voltage-Max | 85 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
