SN74AC245DWR by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74AC245DWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-1058-1-ND
|
DigiKey | IC TXRX NON-INVERT 6V 20-SOIC Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
1750 In Stock |
|
$0.4073 / $0.9200 | Buy Now |
|
DISTI #
2156-SN74AC245DWR-ND
|
DigiKey | IC TXRX NON-INVERT 6V 20-SOIC Min Qty: 1 Lead time: 12 Weeks Container: Bulk MARKETPLACE PRODUCT |
340 In Stock |
|
$0.8800 | Buy Now |
|
DISTI #
595-SN74AC245DWR
|
Mouser Electronics | Bus Transceivers Tri-State Octal Bus A 595-SN74AC245DW RoHS: Compliant | 3546 |
|
$0.4110 / $0.9100 | Buy Now |
|
DISTI #
V72:2272_07325620
|
Arrow Electronics | Bus XCVR Single 8-CH 3-ST 20-Pin SOIC T/R COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2315 Container: Cut Strips | Americas - 1682 |
|
$0.3670 / $0.6524 | Buy Now |
|
DISTI #
68403163
|
Verical | Bus XCVR Single 8-CH 3-ST 20-Pin SOIC T/R RoHS: Compliant Min Qty: 17 Package Multiple: 1 Date Code: 2315 | Americas - 1682 |
|
$0.3670 / $0.5328 | Buy Now |
|
|
Bristol Electronics | 9689 |
|
RFQ | ||
|
|
Quest Components | BUS TRANSCEIVER, AC SERIES, 1-FUNC, 8-BIT, TRUE OUTPUT, CMOS, PDSO20 | 2444 |
|
$0.6300 / $2.1000 | Buy Now |
|
|
Quest Components | BUS TRANSCEIVER, AC SERIES, 1-FUNC, 8-BIT, TRUE OUTPUT, CMOS, PDSO20 | 24 |
|
$1.5000 / $2.5000 | Buy Now |
|
|
Rochester Electronics | Bus Transceiver, AC Series, 8-Func, 8-Bit, True Output, CMOS, PDSO20 RoHS: Compliant Status: Active Min Qty: 1 | 340 |
|
$0.3221 / $0.5195 | Buy Now |
|
DISTI #
V72:2272_07325620
|
Arrow Electronics | Bus XCVR Single 8-CH 3-ST 20-Pin SOIC T/R COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2315 Container: Cut Strips | Americas - 1682 |
|
$0.3670 / $0.6524 | Buy Now |
US Tariff Estimator: SN74AC245DWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN74AC245DWR
SN74AC245DWR CAD Models
-

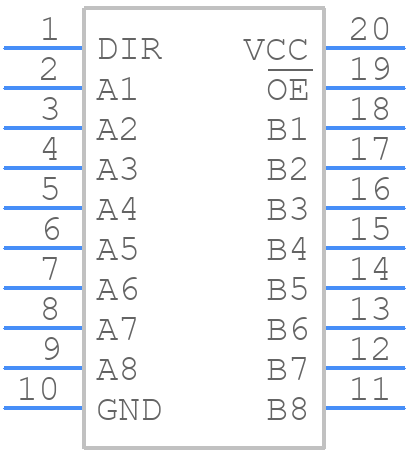

Part Symbol
-
