SN74AHC1G04DCKR Information
SN74AHC1G04DCKR by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| SN74AHC1G04DCKRE4 | Texas Instruments | Single Inverter Gate 5-SC70 -40 to 125 | |
| SN74AHC1G04DCKRG4 | Texas Instruments | Single Inverter Gate 5-SC70 -40 to 125 | |
| SN74AHC1G04DCKR | Texas Instruments | Single Inverter Gate 5-SC70 -40 to 125 |
Price & Stock for SN74AHC1G04DCKR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AH7446
|
Newark | Ic, Inverter Gate, Single, Smd, Logic Family/Base Number:74Ahc1G04, Logic Type:Inverter, Output Current:8Ma, No. Of Inputs:1, Supply Voltage Min:2V, Supply Voltage Max:5.5V, Logic Case Style:Sc-70, No. Of Pins:5Pins, Logic Ic Rohs Compliant: Yes |Texas Instruments SN74AHC1G04DCKR RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.1050 / $0.1390 | Buy Now |
|
|
Bristol Electronics | Min Qty: 32 | 28708 |
|
$0.0213 / $0.1575 | Buy Now |
|
|
Bristol Electronics | 5390 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 34 | 2857 |
|
$0.0450 / $0.1500 | Buy Now |
|
|
Bristol Electronics | 477 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 34 | 115 |
|
$0.0750 / $0.1500 | Buy Now |
|
DISTI #
SN74AHC1G04DCKR
|
TME | IC: digital, NOT, Ch: 1, CMOS, SMD, SC70-5, 2÷5.5VDC, -40÷125°C, 10uA Min Qty: 1 | 2035 |
|
$0.0458 / $0.1600 | Buy Now |
|
|
Ameya Holding Limited | Single Inverter | 869 |
|
RFQ | |
|
|
ComSIT USA | Inverter, AHC/VHC/H/U/V Series, 1-Func, 1-Input, CMOS, PDSO5 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
SMC-SN74AHC1G04DCKR
|
Sensible Micro Corporation | XIC R=SN74AHC1G04DCK SC-70-5 RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1236 Container: Tape & Reel | 1124 |
|
RFQ |
US Tariff Estimator: SN74AHC1G04DCKR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN74AHC1G04DCKR
SN74AHC1G04DCKR CAD Models
-

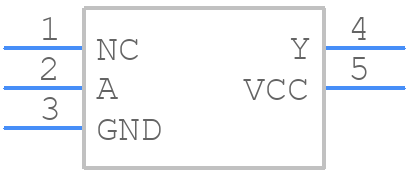

Part Symbol
-
Footprint
-

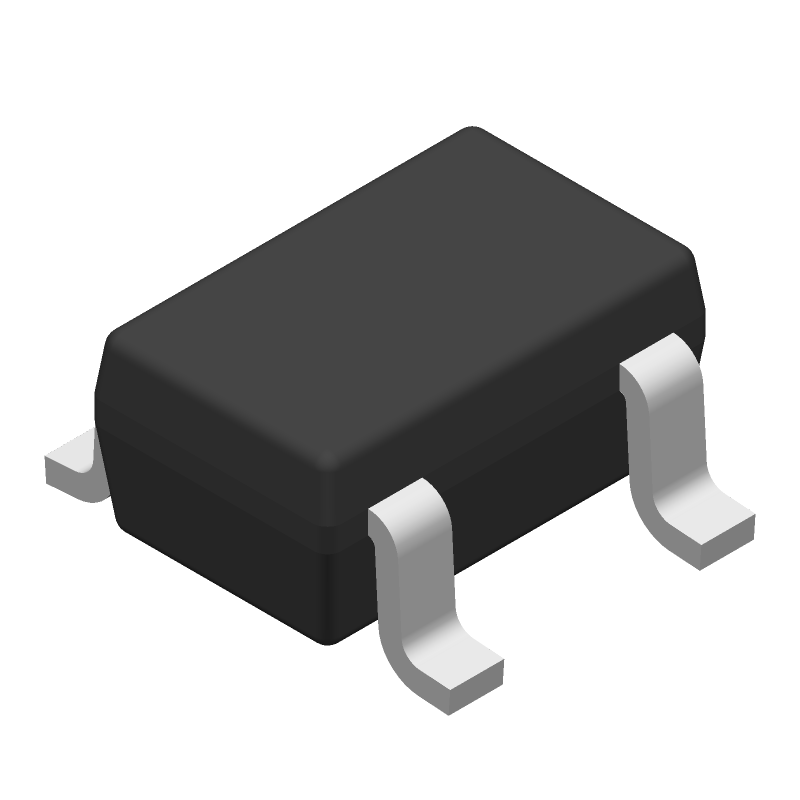

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SN74AHC1G04DCKR Part Data Attributes
|
|
SN74AHC1G04DCKR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74AHC1G04DCKR
Texas Instruments
Single 2-V to 5.5-V inverter 5-SC70 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | TSSOP, TSSOP5/6,.08 | |
| Pin Count | 5 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Date Of Intro | 1996-05-01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | AHC/VHC/H/U/V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | INVERTER | |
| Max I(ol) | 0.008 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Inputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP5/6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.01 mA | |
| Prop. Delay@Nom-Sup | 8.5 ns | |
| Propagation Delay (tpd) | 12 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 mm |
Alternate Parts for SN74AHC1G04DCKR
This table gives cross-reference parts and alternative options found for SN74AHC1G04DCKR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74AHC1G04DCKR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74AHC1G04DCKRG4 | Texas Instruments | $0.0520 | Single 2-V to 5.5-V inverter 5-SC70 -40 to 125 | SN74AHC1G04DCKR vs SN74AHC1G04DCKRG4 |
| CAHC1G04QDCKRG4Q1 | Texas Instruments | $0.0968 | Automotive single 2-V to 5.5-V inverter 5-SC70 -40 to 125 | SN74AHC1G04DCKR vs CAHC1G04QDCKRG4Q1 |
| SN74AHC1G04DCK3 | Texas Instruments | $0.1217 | Single 2-V to 5.5-V inverter 5-SC70 -40 to 85 | SN74AHC1G04DCKR vs SN74AHC1G04DCK3 |
| SN74AHC1G04DCKT | Texas Instruments | $0.2543 | Single 2-V to 5.5-V inverter 5-SC70 -40 to 125 | SN74AHC1G04DCKR vs SN74AHC1G04DCKT |
| MC74VHC1G05DFT1 | LRC Leshan Radio Co Ltd | Check for Price | Inverter, CMOS, PDSO6 | SN74AHC1G04DCKR vs MC74VHC1G05DFT1 |
| MC74VHC1G05DFT1 | onsemi | Check for Price | AHC/VHC SERIES, 1-INPUT INVERT GATE, PDSO5, SC-70, SC-88A, SOT-353, 5 PIN | SN74AHC1G04DCKR vs MC74VHC1G05DFT1 |
| SN74AHC1GU04DCK | Texas Instruments | Check for Price | AHC SERIES, 1-INPUT INVERT GATE, PDSO5, PLASTIC, SOT-5 | SN74AHC1G04DCKR vs SN74AHC1GU04DCK |
| SN74AHC1G04DCKJ | Texas Instruments | Check for Price | IC AHC/VHC/H/U/V SERIES, 1-INPUT INVERT GATE, PDSO5, GREEN, PLASTIC, SC-70, 5 PIN, Gate | SN74AHC1G04DCKR vs SN74AHC1G04DCKJ |
| SN74AHC1G04DCKRE4 | Texas Instruments | Check for Price | Single 2-V to 5.5-V inverter 5-SC70 -40 to 125 | SN74AHC1G04DCKR vs SN74AHC1G04DCKRE4 |
| SN74AHC1G04DCK | Texas Instruments | Check for Price | AHC SERIES, 1-INPUT INVERT GATE, PDSO5, PLASTIC, SOT-5 | SN74AHC1G04DCKR vs SN74AHC1G04DCK |
SN74AHC1G04DCKR Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the SN74AHC1G04DCKR is 100 MHz.
-
Yes, the SN74AHC1G04DCKR is 5V tolerant, meaning it can accept input voltages up to 5.5V even though its recommended operating voltage is 3.3V.
-
The propagation delay of the SN74AHC1G04DCKR is typically around 3.5 ns, but can vary depending on the operating conditions and load capacitance.
-
Yes, the SN74AHC1G04DCKR can operate at 1.8V, but its performance may be degraded, and the output voltage may not reach the full rail-to-rail voltage swing.
-
Yes, the SN74AHC1G04DCKR is suitable for high-reliability applications, as it is built with a high-reliability process and has undergone rigorous testing and qualification.
