SN74ALVCH162244DGG Information
SN74ALVCH162244DGG by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| SN74ALVCH162244DGG | Texas Instruments | 16-Bit Buffer/Driver With 3-State Outputs 48-TSSOP |
Price & Stock for SN74ALVCH162244DGG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-SN74ALVCH162244DGG-ND
|
DigiKey | IC BUFF NON-INVERT 3.6V 48-TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
11939 In Stock |
|
$6.9900 | Buy Now |
|
DISTI #
296-53304-ND
|
DigiKey | IC BUFF NON-INVERT 3.6V 48-TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Tube | Temporarily Out of Stock |
|
$5.8319 / $9.6700 | Buy Now |
|
DISTI #
595-74ALVCH162244DGG
|
Mouser Electronics | Buffers & Line Drivers 16-ch 1.65-V to 3.6 -V buffers with bus- RoHS: Compliant | 254 |
|
$5.3100 / $9.8700 | Buy Now |
|
DISTI #
86285014
|
Verical | Buffer/Line Driver 16-CH Non-Inverting 3-ST 48-Pin TSSOP Tube RoHS: Compliant Min Qty: 54 Package Multiple: 1 Date Code: 1001 | Americas - 6459 |
|
$5.5875 / $6.9875 | Buy Now |
|
DISTI #
86284868
|
Verical | Buffer/Line Driver 16-CH Non-Inverting 3-ST 48-Pin TSSOP Tube RoHS: Compliant Min Qty: 54 Package Multiple: 1 Date Code: 1501 | Americas - 5480 |
|
$5.5875 / $6.9875 | Buy Now |
|
|
Rochester Electronics | SN74ALVCH162244 16-Bit Buffer/Driver With 3-State Outputs RoHS: Compliant Status: Active Min Qty: 1 | 11939 |
|
$4.4700 / $5.5900 | Buy Now |
US Tariff Estimator: SN74ALVCH162244DGG by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN74ALVCH162244DGG
SN74ALVCH162244DGG CAD Models
-

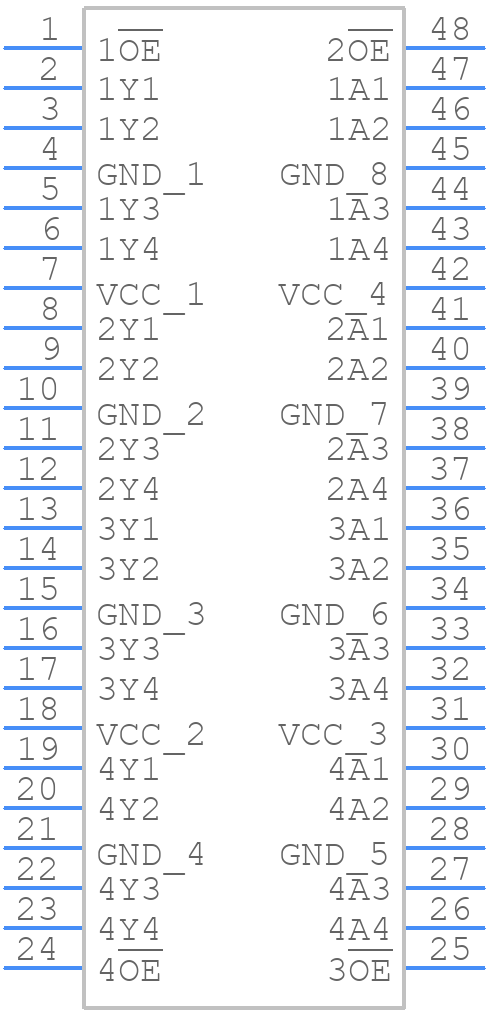

Part Symbol
-

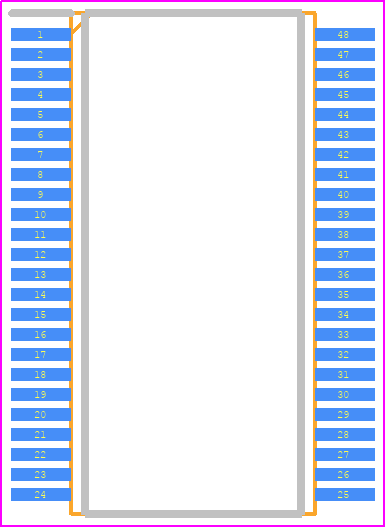

Footprint
-

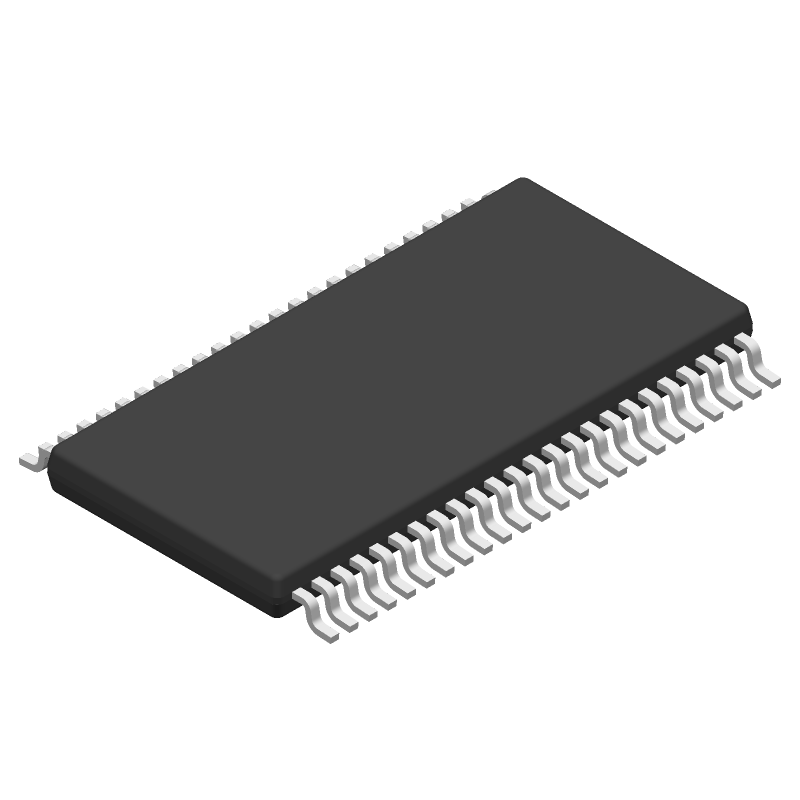

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SN74ALVCH162244DGG Part Data Attributes
|
|
SN74ALVCH162244DGG
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74ALVCH162244DGG
Texas Instruments
16-ch, 1.65-V to 3.6-V buffers with bus-hold and 3-state outputs 48-TSSOP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TSSOP | |
| Package Description | Tssop, Tssop48,.3,20 | |
| Pin Count | 48 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Control Type | Enable Low | |
| Count Direction | Unidirectional | |
| Family | Alvc/Vcx/A | |
| JESD-30 Code | R-PDSO-G48 | |
| JESD-609 Code | e4 | |
| Length | 12.5 Mm | |
| Load Capacitance (CL) | 50 Pf | |
| Logic IC Type | Bus Driver | |
| Max I(ol) | 0.012 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 4 | |
| Number of Functions | 16 | |
| Number of Ports | 2 | |
| Number of Terminals | 48 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-State | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP48,.3,20 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Packing Method | Tube | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.04 Ma | |
| Prop. Delay@Nom-Sup | 4.2 Ns | |
| Propagation Delay (tpd) | 4.9 Ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 Mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 6.1 Mm |
Alternate Parts for SN74ALVCH162244DGG
This table gives cross-reference parts and alternative options found for SN74ALVCH162244DGG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74ALVCH162244DGG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74ALVCH162244GRG4 | Texas Instruments | Check for Price | 16-ch, 1.65-V to 3.6-V buffers with bus-hold and 3-state outputs 48-TSSOP -40 to 85 | SN74ALVCH162244DGG vs 74ALVCH162244GRG4 |
| IDT74ALVCH162244PAG8 | Integrated Device Technology Inc | Check for Price | Bus Driver, ALVC/VCX/A Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48, GREEN, TSSOP-48 | SN74ALVCH162244DGG vs IDT74ALVCH162244PAG8 |
| MC74VCX162244DT | Motorola Semiconductor Products | Check for Price | Bus Driver, ALVC/VCX/A Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48, PLASTIC, TSSOP-48 | SN74ALVCH162244DGG vs MC74VCX162244DT |
| 74ALVCH162244PA | Integrated Device Technology Inc | Check for Price | Bus Driver, ALVC/VCX/A Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48, TSSOP-48 | SN74ALVCH162244DGG vs 74ALVCH162244PA |
| 74VCXH162244MTD | Fairchild Semiconductor Corporation | Check for Price | Bus Driver, ALVC/VCX/A Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48, 6.10 MM, MO-153ED, TSSOP-48 | SN74ALVCH162244DGG vs 74VCXH162244MTD |
| 74VCX162244MTD | Fairchild Semiconductor Corporation | Check for Price | Bus Driver, ALVC/VCX/A Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48, 6.10 MM, MO-153ED, TSSOP-48 | SN74ALVCH162244DGG vs 74VCX162244MTD |
| IDT74ALVCH162244PAG8 | Renesas Electronics Corporation | Check for Price | Bus Driver, ALVC/VCX/A Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48 | SN74ALVCH162244DGG vs IDT74ALVCH162244PAG8 |
SN74ALVCH162244DGG Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the SN74ALVCH162244DGG is 250 MHz, but it can vary depending on the output load and the system design.
-
To ensure signal integrity, use proper PCB layout techniques, such as using short signal traces, minimizing impedance mismatch, and adding termination resistors if necessary. Also, follow the recommended operating conditions and output loading specified in the datasheet.
-
Yes, the SN74ALVCH162244DGG is compatible with 3.3V systems. It has a wide operating voltage range of 1.65V to 3.6V, making it suitable for use in 3.3V systems.
-
To avoid latch-up or other issues, ensure that the power supply voltage (VCC) is applied before the input signals. Also, ensure that the input signals are not applied until the power supply voltage has reached its minimum specified value.
-
The maximum output current of the SN74ALVCH162244DGG is 24 mA per output pin. However, the total output current should not exceed 100 mA to avoid overheating and ensure reliable operation.
