SN74ALVCH162601DLR by: Texas Instruments

18-Bit Universal Bus Transceiver With 3-State Outputs 56-SSOP -40 to 85

Part Details for SN74ALVCH162601DLR by Texas Instruments

Results Overview of SN74ALVCH162601DLR by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SN74ALVCH162601DLR Information

SN74ALVCH162601DLR by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for SN74ALVCH162601DLR

Part # Distributor Description Stock Price Buy
DISTI # 2156-SN74ALVCH162601DLR-ND
DigiKey IC UNIV BUS TXRX 56-SSOP Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT 20920
In Stock
  • 150 $2.0000
$2.0000 Buy Now
DISTI # 296-14782-1-ND
DigiKey IC UNIV BUS TXRX 56-SSOP Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 1000
In Stock
  • 1 $2.5000
  • 10 $1.8570
  • 25 $1.6968
  • 100 $1.5205
  • 250 $1.4428
  • 1,000 $1.3442
  • 2,000 $1.3099
  • 3,000 $1.2927
  • 5,000 $1.2737
  • 7,000 $1.2625
$1.2625 / $2.5000 Buy Now
DISTI # 595-SN74ALVCH16260LR
Mouser Electronics Universal Bus Functions 16-Bit Edge-Trgrd D- Typ F-F W/3-St Out A 595-SNALVCH162601DL RoHS: Compliant 0
  • 1 $2.5000
  • 10 $1.8600
  • 25 $1.7000
  • 100 $1.5200
  • 250 $1.4300
  • 500 $1.3800
  • 1,000 $1.3400
  • 2,000 $1.3000
  • 5,000 $1.2700
$1.2700 / $2.5000 Order Now
DISTI # 86283497
Verical Bus XCVR Single 18-CH 3-ST 56-Pin SSOP T/R RoHS: Compliant Min Qty: 188 Package Multiple: 1 Date Code: 0601 Americas - 9000
  • 188 $2.0000
  • 500 $1.8000
  • 1,000 $1.6625
  • 10,000 $1.4750
  • 100,000 $1.2400
$1.2400 / $2.0000 Buy Now
DISTI # 86283683
Verical Bus XCVR Single 18-CH 3-ST 56-Pin SSOP T/R RoHS: Compliant Min Qty: 188 Package Multiple: 1 Date Code: 1001 Americas - 7000
  • 188 $2.0000
  • 500 $1.8000
  • 1,000 $1.6625
  • 10,000 $1.4750
  • 100,000 $1.2400
$1.2400 / $2.0000 Buy Now
DISTI # 86289831
Verical Bus XCVR Single 18-CH 3-ST 56-Pin SSOP T/R RoHS: Compliant Min Qty: 188 Package Multiple: 1 Date Code: 0401 Americas - 3000
  • 188 $2.0000
  • 500 $1.8000
  • 1,000 $1.6625
  • 10,000 $1.4750
  • 100,000 $1.2400
$1.2400 / $2.0000 Buy Now
DISTI # 86284586
Verical Bus XCVR Single 18-CH 3-ST 56-Pin SSOP T/R RoHS: Compliant Min Qty: 188 Package Multiple: 1 Americas - 1000
  • 188 $2.0000
  • 500 $1.8000
  • 1,000 $1.6625
  • 10,000 $1.4750
  • 100,000 $1.2400
$1.2400 / $2.0000 Buy Now
DISTI # 86289489
Verical Bus XCVR Single 18-CH 3-ST 56-Pin SSOP T/R RoHS: Compliant Min Qty: 188 Package Multiple: 1 Date Code: 0701 Americas - 920
  • 188 $2.0000
  • 500 $1.8000
  • 1,000 $1.6625
  • 10,000 $1.4750
  • 100,000 $1.2400
$1.2400 / $2.0000 Buy Now
Rochester Electronics SN74ALVCH162601 18-Bit Universal Bus Transceiver With 3-State Outputs RoHS: Compliant Status: Active Min Qty: 1 20920
  • 100 $1.6000
  • 500 $1.4400
  • 1,000 $1.3300
  • 10,000 $1.1800
  • 100,000 $0.9920
$0.9920 / $1.6000 Buy Now

US Tariff Estimator: SN74ALVCH162601DLR by Texas Instruments

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

SN74ALVCH162601DLR
Texas Instruments
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for SN74ALVCH162601DLR

SN74ALVCH162601DLR CAD Models

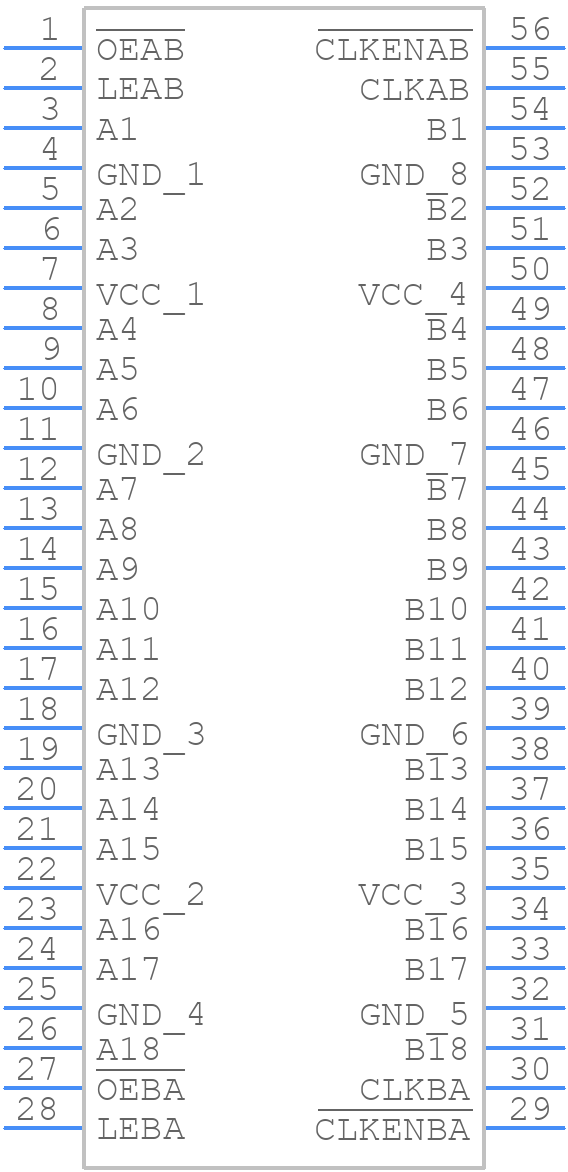

  • Part Symbol

    schematic symbol

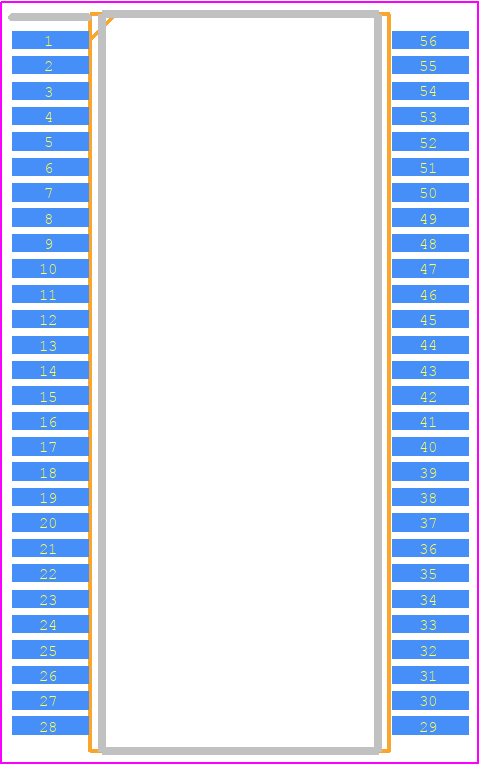

  • Footprint

    pcb footprint

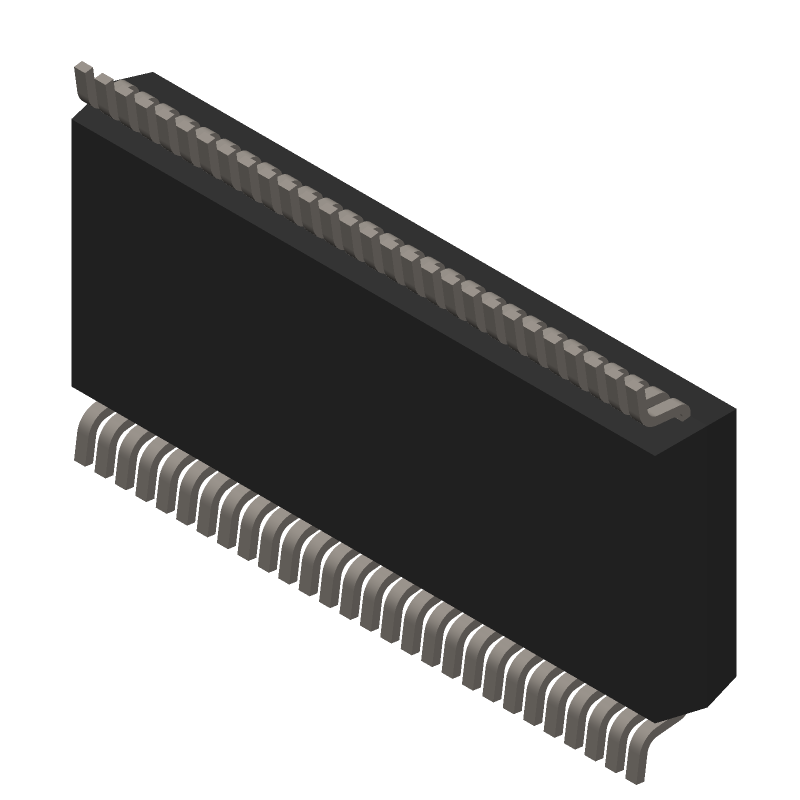

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SN74ALVCH162601DLR Part Data Attributes

Parametric Data
SN74ALVCH162601DLR Texas Instruments
Buy Now Datasheet
Compare Parts:
SN74ALVCH162601DLR Texas Instruments 18-Bit Universal Bus Transceiver With 3-State Outputs 56-SSOP -40 to 85
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code SSOP
Package Description Ssop, Ssop56,.4
Pin Count 56
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.39.00.60
Additional Feature With Independent Output Enable For Each Direction; With Clock Enable
Control Type Independent Control
Count Direction Bidirectional
Family Alvc/Vcx/A
JESD-30 Code R-PDSO-G56
JESD-609 Code e4
Length 18.415 Mm
Load Capacitance (CL) 50 Pf
Logic IC Type Registered Bus Transceiver
Max I(ol) 0.012 A
Moisture Sensitivity Level 1
Number of Bits 18
Number of Functions 18
Number of Ports 2
Number of Terminals 56
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Characteristics 3-State With Series Resistor
Output Polarity True
Package Body Material Plastic/Epoxy
Package Code SSOP
Package Equivalence Code SSOP56,.4
Package Shape Rectangular
Package Style Small Outline, Shrink Pitch
Packing Method Tr
Peak Reflow Temperature (Cel) 260
Power Supply Current-Max (ICC) 0.04 Ma
Prop. Delay@Nom-Sup 4.5 Ns
Propagation Delay (tpd) 6.3 Ns
Qualification Status Not Qualified
Screening Level Mil-Std-883
Seated Height-Max 2.79 Mm
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 1.65 V
Supply Voltage-Nom (Vsup) 1.8 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form Gull Wing
Terminal Pitch 0.635 Mm
Terminal Position Dual
Time@Peak Reflow Temperature-Max (s) 30
Trigger Type Positive Edge
Width 7.49 Mm

Alternate Parts for SN74ALVCH162601DLR

This table gives cross-reference parts and alternative options found for SN74ALVCH162601DLR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74ALVCH162601DLR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
IDT74ALVCH162601PV8 Integrated Device Technology Inc Check for Price Registered Bus Transceiver, ALVC/VCX/A Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56, 0.635 MM PITCH, SSOP-56 SN74ALVCH162601DLR vs IDT74ALVCH162601PV8
Part Number Manufacturer Composite Price Description Compare
SN74ALVCH162601DL Texas Instruments Check for Price 18-Bit Universal Bus Transceiver With 3-State Outputs 56-SSOP -40 to 85 SN74ALVCH162601DLR vs SN74ALVCH162601DL
74ALVCH162601DLRG4 Texas Instruments Check for Price ALVC/VCX/A SERIES, 18-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, PDSO56, 0.300 INCH, GREEN, PLASTIC, SSOP-56 SN74ALVCH162601DLR vs 74ALVCH162601DLRG4
SN74ALVC162601DLR Texas Instruments Check for Price 18-Bit Universal Bus Transceiver With 3-State Outputs 56-SSOP -40 to 85 SN74ALVCH162601DLR vs SN74ALVC162601DLR
74ALVCH162601DLG4 Texas Instruments Check for Price ALVC/VCX/A SERIES, 18-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, PDSO56, 0.300 INCH, GREEN, PLASTIC, SSOP-56 SN74ALVCH162601DLR vs 74ALVCH162601DLG4
SN74ALVC162601DL Texas Instruments Check for Price 18-Bit Universal Bus Transceiver With 3-State Outputs 56-SSOP -40 to 85 SN74ALVCH162601DLR vs SN74ALVC162601DL
PI74ALVCH162601VE Pericom Semiconductor Corporation Check for Price Registered Bus Transceiver, ALVC/VCX/A Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-56 SN74ALVCH162601DLR vs PI74ALVCH162601VE
PI74ALVCH162601VEX Pericom Semiconductor Corporation Check for Price Registered Bus Transceiver, ALVC/VCX/A Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-56 SN74ALVCH162601DLR vs PI74ALVCH162601VEX
