SN74AS253AN Information
SN74AS253AN by Texas Instruments is a Multiplexer/Demultiplexer.
Multiplexer/Demultiplexers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74AS253AN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
86021885
|
Verical | Multiplexer 1-Element Bipolar 3-ST 8-IN 16-Pin PDIP Tube Min Qty: 82 Package Multiple: 1 Date Code: 0001 | Americas - 11025 |
|
$3.6625 / $4.5750 | Buy Now |
|
DISTI #
86032807
|
Verical | Multiplexer 1-Element Bipolar 3-ST 8-IN 16-Pin PDIP Tube Min Qty: 82 Package Multiple: 1 Date Code: 1001 | Americas - 9575 |
|
$3.6625 / $4.5750 | Buy Now |
|
DISTI #
86020573
|
Verical | Multiplexer 1-Element Bipolar 3-ST 8-IN 16-Pin PDIP Tube Min Qty: 82 Package Multiple: 1 Date Code: 0601 | Americas - 9475 |
|
$3.6625 / $4.5750 | Buy Now |
|
DISTI #
86021388
|
Verical | Multiplexer 1-Element Bipolar 3-ST 8-IN 16-Pin PDIP Tube Min Qty: 82 Package Multiple: 1 Date Code: 0301 | Americas - 6105 |
|
$3.6625 / $4.5750 | Buy Now |
|
|
Rochester Electronics | Multiplexer, AS Series, 2-Func, 4 Line Input, 1 Line Output, True Output, TTL, PDIP16 RoHS: Compliant Status: Obsolete Min Qty: 1 | 36235 |
|
$2.9300 / $3.6600 | Buy Now |
US Tariff Estimator: SN74AS253AN by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN74AS253AN
SN74AS253AN CAD Models
-

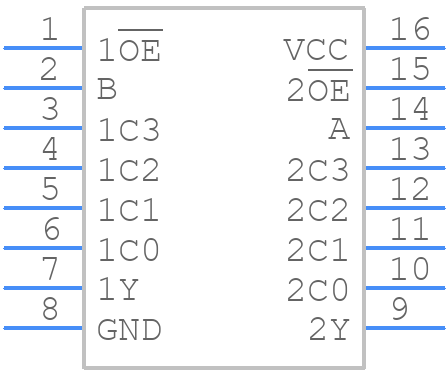

Part Symbol
-
