SN74AVC1T45DCKTG4 Information
SN74AVC1T45DCKTG4 by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74AVC1T45DCKTG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-74AVC1T45DCKTG4
|
Mouser Electronics | Translation - Voltage Levels SNGLB Dual Supply Bu s Trancvr A 595-SN7 A 595-SN74AVC1T45DCKT RoHS: Compliant | 759 |
|
$0.5000 / $1.8900 | Buy Now |
|
|
Chip Stock | Single-BitDual-SupplyBusTransceiverwithConfigurableVoltage-LevelShiftingand3-StateOutputs6-SC70-40to85 | 68060 |
|
RFQ | |
|
|
Vyrian | Logic ICs | 4314 |
|
RFQ | |
|
|
Win Source Electronics | IC BUS TRANSCVR TRI-ST SC70-6 | 46120 |
|
$0.0600 / $0.0775 | Buy Now |
US Tariff Estimator: SN74AVC1T45DCKTG4 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN74AVC1T45DCKTG4
SN74AVC1T45DCKTG4 CAD Models
-

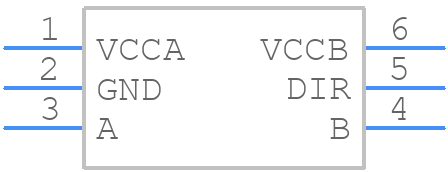

Part Symbol
-
