Part Details for SN74BCT2827CDW by Texas Instruments
Results Overview of SN74BCT2827CDW by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (6 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
SN74BCT2827CDW Information
SN74BCT2827CDW by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74BCT2827CDW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Rochester Electronics | Bus Driver, BCT/FBT Series, 10-Func, 10-Bit, True Output, BICMOS, PDSO24 RoHS: Compliant Status: Active Min Qty: 1 | 4488 |
|
$3.3300 / $4.1600 | Buy Now |
|
|
Chip Stock | Buffer/LineDriver10-CHNon-Inverting3-STBiCMOS24-PinSOICTube | 3500 |
|
RFQ | |
|
|
Component Electronics, Inc | SMT TUBE | 25 |
|
$3.0000 / $4.6200 | Buy Now |
US Tariff Estimator: SN74BCT2827CDW by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN74BCT2827CDW
SN74BCT2827CDW CAD Models
-

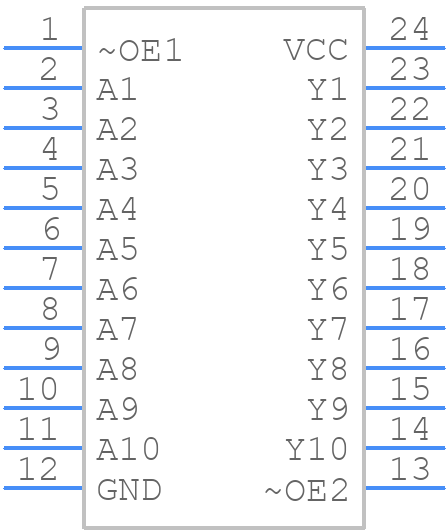

Part Symbol
-

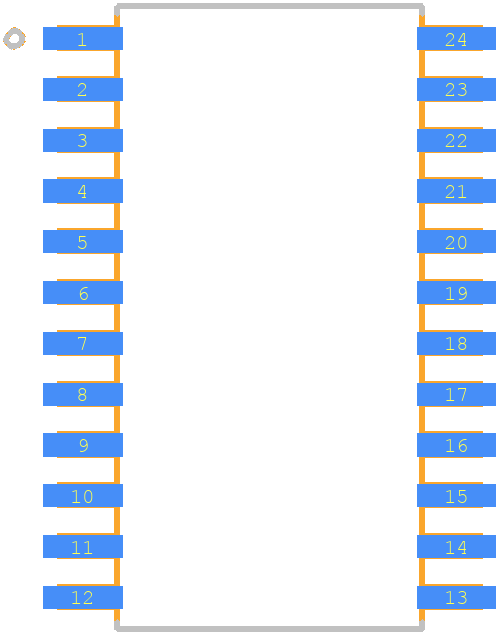

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SN74BCT2827CDW Part Data Attributes
|
|
SN74BCT2827CDW
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74BCT2827CDW
Texas Instruments
10-ch, 4.5-V to 5.5-V buffers with 3-state outputs 24-SOIC 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Sop, Sop24,.4 | |
| Pin Count | 24 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Additional Feature | Dual Output Enable; 25 Ohm Output Series Resistor | |
| Control Type | Enable Low | |
| Count Direction | Unidirectional | |
| Family | Bct/Fbt | |
| JESD-30 Code | R-PDSO-G24 | |
| JESD-609 Code | e4 | |
| Length | 15.4 Mm | |
| Load Capacitance (CL) | 50 Pf | |
| Logic IC Type | Bus Driver | |
| Max I(ol) | 0.012 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 10 | |
| Number of Functions | 10 | |
| Number of Ports | 2 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Characteristics | 3-State With Series Resistor | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP24,.4 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Packing Method | Tube | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 40 Ma | |
| Prop. Delay@Nom-Sup | 7.8 Ns | |
| Propagation Delay (tpd) | 7.8 Ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 Mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Bicmos | |
| Temperature Grade | Commercial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 Mm |
Alternate Parts for SN74BCT2827CDW
This table gives cross-reference parts and alternative options found for SN74BCT2827CDW. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74BCT2827CDW, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74BCT2827CDWG4 | Texas Instruments | Check for Price | BCT/FBT SERIES, 10-BIT DRIVER, TRUE OUTPUT, PDSO24, SOIC-24 | SN74BCT2827CDW vs SN74BCT2827CDWG4 |
| IDT74FBT2827BSO | Integrated Device Technology Inc | Check for Price | Bus Driver, BCT/FBT Series, 1-Func, 10-Bit, True Output, BICMOS, PDSO24, 0.300 INCH, SOIC-24 | SN74BCT2827CDW vs IDT74FBT2827BSO |
| SN64BCT2827CDW | Texas Instruments | Check for Price | 10-Bit Bus/MOS Memory Driver with 3-State Outputs 24-SOIC -40 to 85 | SN74BCT2827CDW vs SN64BCT2827CDW |
| IDT74FBT2827ASO | Integrated Device Technology Inc | Check for Price | Bus Driver, BCT/FBT Series, 1-Func, 10-Bit, True Output, BICMOS, PDSO24, 0.300 INCH, SOIC-24 | SN74BCT2827CDW vs IDT74FBT2827ASO |
| SN74BCT2827DW | Rochester Electronics LLC | Check for Price | Bus Driver, | SN74BCT2827CDW vs SN74BCT2827DW |
| SN74BCT2827ADW-00 | Texas Instruments | Check for Price | BCT/FBT SERIES, 10-BIT DRIVER, TRUE OUTPUT, PDSO24 | SN74BCT2827CDW vs SN74BCT2827ADW-00 |
SN74BCT2827CDW Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the SN74BCT2827CDW is 100 MHz, but it can vary depending on the specific application and operating conditions.
-
To ensure signal integrity, it's essential to follow proper PCB design and layout practices, such as using controlled impedance traces, minimizing signal routing distances, and providing adequate decoupling and termination.
-
Yes, the SN74BCT2827CDW is compatible with 3.3V systems, but it's essential to ensure that the input and output voltage levels are within the recommended operating range to prevent damage or malfunction.
-
The power consumption of the SN74BCT2827CDW depends on the operating frequency, input voltage, and output load. Typically, the quiescent current is around 10-20 mA, but it can increase to several hundred milliamps at high frequencies.
-
Thermal management is crucial to prevent overheating and ensure reliable operation. Ensure good airflow, use a heat sink if necessary, and follow proper thermal design practices to keep the junction temperature within the recommended range (typically below 150°C).
