Part Details for SN74HCS595PWR by Texas Instruments
Results Overview of SN74HCS595PWR by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (4 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN74HCS595PWR Information
SN74HCS595PWR by Texas Instruments is a Shift Register.
Shift Registers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| SN74HCS595PWR | Texas Instruments | 8-bit shift register with Schmitt-trigger inputs and 3-state output registers 16-TSSOP -40 to 125 |
Price & Stock for SN74HCS595PWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-SN74HCS595PWRCT-ND
|
DigiKey | IC SR TRI-STATE 8BIT 16-TSSOP Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
11914 In Stock |
|
$0.2273 / $0.5500 | Buy Now |
|
DISTI #
595-SN74HCS595PWR
|
Mouser Electronics | Counter Shift Registers 8-bit shift register with Schmitt-trigge RoHS: Compliant | 6744 |
|
$0.2360 / $0.5500 | Buy Now |
|
|
LCSC | 2V6V 1 7.8mA 7ns6V50pF Serial-to-Parallel TSSOP-16 Shift Registers RoHS | 843 |
|
$0.2725 / $0.4622 | Buy Now |
US Tariff Estimator: SN74HCS595PWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN74HCS595PWR
SN74HCS595PWR CAD Models
-

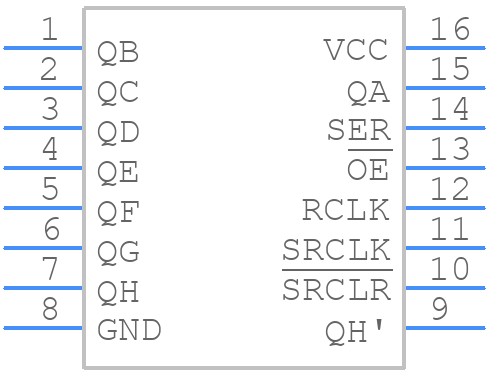

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SN74HCS595PWR Part Data Attributes
|
|
SN74HCS595PWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74HCS595PWR
Texas Instruments
Serial In Parallel Out, HC/UH Series, 8-Bit, Right Direction, True Output, CMOS, PDSO16
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Date Of Intro | 2020-08-20 | |
| Count Direction | Right | |
| Family | Hc/Uh | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 5 Mm | |
| Load Capacitance (CL) | 50 Pf | |
| Logic IC Type | Serial In Parallel Out | |
| Max Frequency@Nom-Sup | 60000000 Hz | |
| Max I(ol) | 0.0078 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-State | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.002 Ma | |
| Propagation Delay (tpd) | 28 Ns | |
| Schmitt Trigger | Yes | |
| Seated Height-Max | 1.2 Mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | Positive Edge | |
| Width | 4.4 Mm | |
| fmax-Min | 75 Mhz |
Alternate Parts for SN74HCS595PWR
This table gives cross-reference parts and alternative options found for SN74HCS595PWR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74HCS595PWR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74HCS595QDRQ1 | Texas Instruments | $0.1011 | Serial In Parallel Out, HC/UH Series, 8-Bit, Right Direction, True Output, CMOS, PDSO16 | SN74HCS595PWR vs SN74HCS595QDRQ1 |
| PSN74HCS595DR | Texas Instruments | Check for Price | Serial In Parallel Out | SN74HCS595PWR vs PSN74HCS595DR |
| PSN74HCS595BQBR | Texas Instruments | Check for Price | Serial In Parallel Out | SN74HCS595PWR vs PSN74HCS595BQBR |
| SN74HCS595DR | Texas Instruments | Check for Price | Serial In Parallel Out, HC/UH Series, 8-Bit, Right Direction, True Output, CMOS, PDSO16 | SN74HCS595PWR vs SN74HCS595DR |
SN74HCS595PWR Frequently Asked Questions (FAQ)
-
The maximum clock frequency for the SN74HCS595PWR is 25 MHz.
-
Yes, the SN74HCS595PWR is compatible with 4.5V to 5.5V power supplies, making it suitable for 5V systems.
-
To ensure that the output pins are in a high-impedance state during power-up, tie the OE (output enable) pin to VCC through a pull-up resistor.
-
The output pins of the SN74HCS595PWR can sink or source up to 25 mA of current.
-
Yes, the SN74HCS595PWR is compatible with 3.3V systems, but the output voltage will be limited to 3.3V.
