SN74HCS74DR by: Texas Instruments

D Flip-Flop, HC/UH Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDSO14

Part Details for SN74HCS74DR by Texas Instruments

Results Overview of SN74HCS74DR by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Space Technology Computing and Data Storage Aerospace and Defense Energy and Power Systems Automotive

SN74HCS74DR Information

SN74HCS74DR by Texas Instruments is an FF/Latch.
FF/Latches are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
SN74HCS74DR Texas Instruments Schmitt-trigger input dual D-type positive-edge-triggered flip-flops w/ clear and preset 14-SOIC -40 to 125

Price & Stock for SN74HCS74DR

Part # Distributor Description Stock Price Buy
DISTI # 296-SN74HCS74DRCT-ND
DigiKey IC FF D-TYPE DOUBLE 1BIT 14SOIC Min Qty: 1 Container: Cut Tape 17017
Cut Tape
  • 1 $0.4000
  • 10 $0.2780
  • 25 $0.2480
  • 100 $0.2144
  • 250 $0.1984
  • 500 $0.1888
  • 1,000 $0.1808
$0.1808 / $0.4000 Buy Now
DISTI # 296-SN74HCS74DRDKR-ND
DigiKey IC FF D-TYPE DOUBLE 1BIT 14SOIC Min Qty: 1 Container: Digi-Reel 17017
Digi-Reel®
  • 1 $0.4000
  • 10 $0.2780
  • 25 $0.2480
  • 100 $0.2144
  • 250 $0.1984
  • 500 $0.1888
  • 1,000 $0.1808
$0.1808 / $0.4000 Buy Now
DISTI # 296-SN74HCS74DRTR-ND
DigiKey IC FF D-TYPE DOUBLE 1BIT 14SOIC Min Qty: 2500 Container: Tape & Reel 17017
Tape & Reel
  • 2,500 $0.1725
  • 5,000 $0.1674
  • 7,500 $0.1649
  • 12,500 $0.1621
  • 17,500 $0.1605
  • 25,000 $0.1589
$0.1589 / $0.1725 Buy Now
DISTI # 595-SN74HCS74DR
Mouser Electronics Flip Flops Schmitt-trigger inpu t dual D-type posit RoHS: Compliant 3727
  • 1 $0.4000
  • 10 $0.2780
  • 25 $0.2480
  • 100 $0.2150
  • 250 $0.1990
  • 500 $0.1890
  • 1,000 $0.1810
  • 2,500 $0.1720
  • 5,000 $0.1670
$0.1670 / $0.4000 Buy Now
DISTI # SN74HCS74DR
TME IC: digital, non-inverting,inverting,D flip-flop, Ch: 2, IN: 1, SMD Min Qty: 2500 0
  • 2,500 $0.1650
$0.1650 RFQ

US Tariff Estimator: SN74HCS74DR by Texas Instruments

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

SN74HCS74DR
Texas Instruments
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for SN74HCS74DR

SN74HCS74DR CAD Models

  • Part Symbol

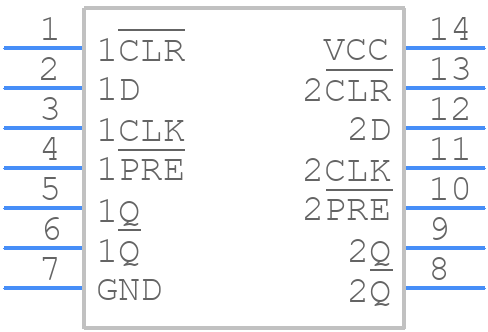

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SN74HCS74DR Part Data Attributes

Parametric Data
SN74HCS74DR Texas Instruments
Buy Now Datasheet
Compare Parts:
SN74HCS74DR Texas Instruments D Flip-Flop, HC/UH Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDSO14
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
ECCN Code EAR99
HTS Code 8542.39.00.90
Date Of Intro 2020-05-16
Family Hc/Uh
JESD-30 Code R-PDSO-G14
JESD-609 Code e3
Length 8.65 Mm
Load Capacitance (CL) 50 Pf
Logic IC Type D Flip-Flop
Max Frequency@Nom-Sup 65000000 Hz
Max I(ol) 0.0078 A
Moisture Sensitivity Level 1
Number of Bits 1
Number of Functions 2
Number of Terminals 14
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Polarity Complementary
Package Body Material Plastic/Epoxy
Package Code SOP
Package Equivalence Code SOP14,.25
Package Shape Rectangular
Package Style Small Outline
Packing Method Tr
Peak Reflow Temperature (Cel) 260
Power Supply Current-Max (ICC) 0.002 Ma
Prop. Delay@Nom-Sup 19 Ns
Propagation Delay (tpd) 42 Ns
Schmitt Trigger Yes
Seated Height-Max 1.75 Mm
Supply Voltage-Max (Vsup) 6 V
Supply Voltage-Min (Vsup) 2 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount Yes
Technology Cmos
Temperature Grade Automotive
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 1.27 Mm
Terminal Position Dual
Time@Peak Reflow Temperature-Max (s) 30
Trigger Type Positive Edge
Width 3.9 Mm
fmax-Min 65 Mhz

Alternate Parts for SN74HCS74DR

This table gives cross-reference parts and alternative options found for SN74HCS74DR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74HCS74DR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MM74HCT74M Fairchild Semiconductor Corporation Check for Price D Flip-Flop, HCT Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDSO14 SN74HCS74DR vs MM74HCT74M
933713390653 NXP Semiconductors Check for Price D Flip-Flop, HCT Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDSO14 SN74HCS74DR vs 933713390653
MC74HCT74ADR2 onsemi Check for Price D Flip-Flop, HCT Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDSO14 SN74HCS74DR vs MC74HCT74ADR2
74HCT74D,653 Nexperia Check for Price D Flip-Flop, HCT Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDSO14 SN74HCS74DR vs 74HCT74D,653
DV74HCT74AD avg Semiconductors Check for Price D Flip-Flop, HCT Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDSO14 SN74HCS74DR vs DV74HCT74AD
MM74HCT74M_NL Fairchild Semiconductor Corporation Check for Price D Flip-Flop, HCT Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDSO14 SN74HCS74DR vs MM74HCT74M_NL
MM74HCT74MX_NL Fairchild Semiconductor Corporation Check for Price D Flip-Flop, HCT Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDSO14 SN74HCS74DR vs MM74HCT74MX_NL
MM74HCT74M onsemi Check for Price D Flip-Flop, HCT Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDSO14 SN74HCS74DR vs MM74HCT74M
CD74HCT74MTE4 Texas Instruments Check for Price D Flip-Flop, HCT Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDSO14 SN74HCS74DR vs CD74HCT74MTE4
Part Number Manufacturer Composite Price Description Compare
CD74HCT74M96 Texas Instruments Check for Price D Flip-Flop, HCT Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDSO14 SN74HCS74DR vs CD74HCT74M96
CD74HCT74M General Electric Solid State Check for Price D Flip-Flop, 2-Func, Positive Edge Triggered, CMOS, PDSO14 SN74HCS74DR vs CD74HCT74M
MC74HCT74ADR2G Rochester Electronics LLC Check for Price D Flip-Flop, HCT Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDSO14 SN74HCS74DR vs MC74HCT74ADR2G
SN54HCT74J Texas Instruments Check for Price D Flip-Flop, HCT Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, CDIP14 SN74HCS74DR vs SN54HCT74J
MM74HCT74MX Fairchild Semiconductor Corporation Check for Price D Flip-Flop, HCT Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDSO14 SN74HCS74DR vs MM74HCT74MX
74HCT74D/T3 NXP Semiconductors Check for Price D Flip-Flop, HCT Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDSO14 SN74HCS74DR vs 74HCT74D/T3
CD74HCT74EE4 Texas Instruments Check for Price D Flip-Flop, HCT Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDIP14 SN74HCS74DR vs CD74HCT74EE4
5962-8685301CA Defense Logistics Agency Check for Price D Flip-Flop, HCT Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, CDIP14 SN74HCS74DR vs 5962-8685301CA
MM74HCT74MX onsemi Check for Price D Flip-Flop, HCT Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDSO14 SN74HCS74DR vs MM74HCT74MX
CD54HCT74F3 Harris Semiconductor Check for Price D Flip-Flop, HCT Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, CDIP14 SN74HCS74DR vs CD54HCT74F3
equivalents icon

SN74HCS74DR Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the SN74HCS74DR is 25 MHz.

  • To ensure proper initialization, connect the preset (PRE) and clear (CLR) inputs to VCC through a 1-kΩ resistor and a 0.01-μF capacitor to ground, respectively.

  • The recommended operating voltage range for the SN74HCS74DR is 4.5 V to 5.5 V.

  • To reduce power consumption, use the lowest possible clock frequency, minimize input transitions, and use a lower supply voltage (e.g., 4.5 V) if possible.

  • Yes, the SN74HCS74DR can operate at 3.3 V, but the maximum clock frequency may be limited to 12.5 MHz.
