SN74LV273APWRG4 by Texas Instruments is an FF/Latch.
FF/Latches are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74LV273APWRG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-SN74LV273APWRG4
|
Mouser Electronics | Flip Flops Octal D-Type Flip-Fl op w/Clear ALT 595-SN74LV273APWR RoHS: Compliant | 0 |
|
$0.4630 | Order Now |
|
|
Ameya Holding Limited | IC D-TYPE POS TRG SNGL 20TSSOP | 6064 |
|
RFQ | |
|
|
Chip Stock | FlipFlopD-TypeBusInterfacePos-Edge1-Element20-PinTSSOPT/R | 63840 |
|
RFQ | |
|
|
Win Source Electronics | IC D-TYPE POS TRG SNGL 20TSSOP | 27960 |
|
$0.2058 / $0.2657 | Buy Now |
US Tariff Estimator: SN74LV273APWRG4 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN74LV273APWRG4
SN74LV273APWRG4 CAD Models
-

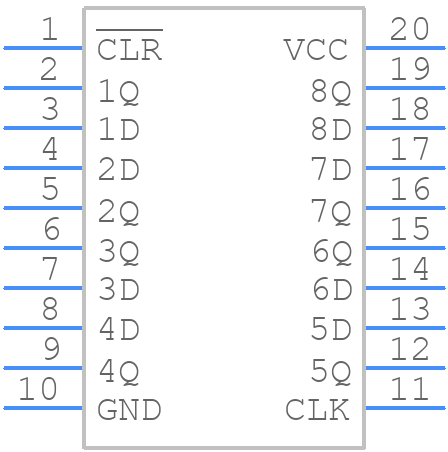

Part Symbol
-
