SN74LVC07APWRG4 Information
SN74LVC07APWRG4 by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74LVC07APWRG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-SN74LVC07APWRG4
|
Mouser Electronics | Buffers & Line Drivers Hex Buffer/Driver w/ Open-Drain Output ALT 595-SN74LVC07APWR RoHS: Compliant | 2678 |
|
$0.3980 / $1.2000 | Buy Now |
|
|
Bristol Electronics | 3380 |
|
RFQ | ||
|
|
Quest Components | LVC/LCX/Z SERIES, HEX 1-INPUT NON-INVERT GATE, PDSO14 | 9785 |
|
$0.2265 / $0.7550 | Buy Now |
|
|
Quest Components | LVC/LCX/Z SERIES, HEX 1-INPUT NON-INVERT GATE, PDSO14 | 2172 |
|
$0.1500 / $0.5000 | Buy Now |
|
|
Quest Components | LVC/LCX/Z SERIES, HEX 1-INPUT NON-INVERT GATE, PDSO14 | 750 |
|
$0.2226 / $0.4770 | Buy Now |
|
|
Chip Stock | 124mA1.65V~5.5V6TSSOP-14Buffer/Driver/TransceiverROHS | 48680 |
|
RFQ | |
|
|
Win Source Electronics | IC BUFF/DVR HEX NON-INV 14TSSOP | 41430 |
|
$0.0686 / $0.0885 | Buy Now |
US Tariff Estimator: SN74LVC07APWRG4 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN74LVC07APWRG4
SN74LVC07APWRG4 CAD Models
-

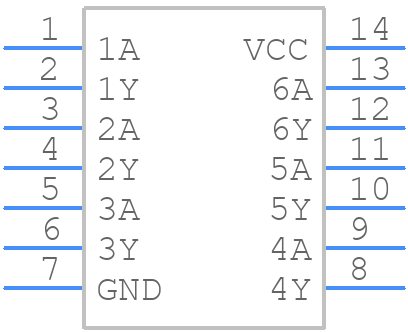

Part Symbol
-
