| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74LVC1G04DCKR | Texas Instruments | $0.0537 | Inverter, LVC/LCX/Z Series, 1-Func, 1-Input, CMOS, PDSO5 | SN74LVC1G06DSFR vs SN74LVC1G04DCKR |
| SN74LVC1GU04DPWR | Texas Instruments | $0.1311 | Inverter, LVC/LCX/Z Series, 1-Func, 1-Input, CMOS, PBCC5 | SN74LVC1G06DSFR vs SN74LVC1GU04DPWR |
| SN74LVC1G04DCKRG4 | Texas Instruments | $0.1944 | Inverter, LVC/LCX/Z Series, 1-Func, 1-Input, CMOS, PDSO5 | SN74LVC1G06DSFR vs SN74LVC1G04DCKRG4 |
| SN74LVC1G04DCKT | Texas Instruments | $0.3965 | Inverter, LVC/LCX/Z Series, 1-Func, 1-Input, CMOS, PDSO5 | SN74LVC1G06DSFR vs SN74LVC1G04DCKT |
| SN74LVC1G04DCKTG4 | Texas Instruments | Check for Price | Inverter, LVC/LCX/Z Series, 1-Func, 1-Input, CMOS, PDSO5 | SN74LVC1G06DSFR vs SN74LVC1G04DCKTG4 |
| 74LVC1G04GW-Q100,125 | NXP Semiconductors | Check for Price | Inverter, LVC/LCX/Z Series, 1-Func, 1-Input, CMOS, PDSO5 | SN74LVC1G06DSFR vs 74LVC1G04GW-Q100,125 |
| 74LVC1G04GW | NXP Semiconductors | Check for Price | Inverter, LVC/LCX/Z Series, 1-Func, 1-Input, CMOS, PDSO5 | SN74LVC1G06DSFR vs 74LVC1G04GW |
| 74LVC1G04GW | Philips Semiconductors | Check for Price | Inverter, CMOS, PDSO5 | SN74LVC1G06DSFR vs 74LVC1G04GW |
| SN74LVC1G06DRY2 | Texas Instruments | Check for Price | Inverter, LVC/LCX/Z Series, 1-Func, 1-Input, CMOS, PDSO6 | SN74LVC1G06DSFR vs SN74LVC1G06DRY2 |
| TC7SZ04FU(T5L,JF,T | Toshiba America Electronic Components | Check for Price | Inverter, LVC/LCX/Z Series, 1-Func, 1-Input, CMOS, PDSO5 | SN74LVC1G06DSFR vs TC7SZ04FU(T5L,JF,T |
Part Details for SN74LVC1G06DSFR by Texas Instruments
Results Overview of SN74LVC1G06DSFR by Texas Instruments
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
SN74LVC1G06DSFR Information
SN74LVC1G06DSFR by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74LVC1G06DSFR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-29048-2-ND
|
DigiKey | IC INV 1-CIR 1-IN 6-SON Min Qty: 5000 Container: Tape & Reel |
3568 Tape & Reel |
|
$0.1328 / $0.1426 | Buy Now |
|
DISTI #
296-29048-6-ND
|
DigiKey | IC INV 1-CIR 1-IN 6-SON Min Qty: 1 Container: Digi-Reel |
3568 Digi-Reel® |
|
$0.1530 / $0.3500 | Buy Now |
|
DISTI #
296-29048-1-ND
|
DigiKey | IC INV 1-CIR 1-IN 6-SON Min Qty: 1 Container: Cut Tape |
3568 Cut Tape |
|
$0.1530 / $0.3500 | Buy Now |
|
DISTI #
86039636
|
Verical | Inverter Buffer/Driver 1-Element 6-Pin X2SON T/R RoHS: Compliant Min Qty: 2130 Package Multiple: 1 Date Code: 1201 | Americas - 177915 |
|
$0.1316 / $0.1761 | Buy Now |
|
DISTI #
86024999
|
Verical | Inverter Buffer/Driver 1-Element 6-Pin X2SON T/R RoHS: Compliant Min Qty: 2130 Package Multiple: 1 Date Code: 1101 | Americas - 138898 |
|
$0.1316 / $0.1761 | Buy Now |
|
DISTI #
595-SN74LVC1G06DSFR
|
Mouser Electronics | Buffers & Line Drivers Sgl Inverter Buffer/ Driver RoHS: Compliant | 7215 |
|
$0.1440 / $0.3500 | Buy Now |
|
|
Bristol Electronics | Inverter Buffer/Driver 1-Element 6-Pin X2SON T/R Min Qty: 1 | 5000 |
|
$0.0621 / $0.4140 | Buy Now |
|
|
Quest Components | 4000 |
|
$0.0828 / $0.5520 | Buy Now | |
|
|
Quest Components | 4000 |
|
$0.1170 / $0.5850 | Buy Now | |
|
|
Rochester Electronics | Inverter, LVC/LCX/Z Series, 1-Func, 1-Input, CMOS, PDSO6 RoHS: Compliant Status: Active Min Qty: 1 | 316813 |
|
$0.1053 / $0.1698 | Buy Now |
US Tariff Estimator: SN74LVC1G06DSFR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
SN74LVC1G06DSFR CAD Models
-
Part Symbol
-
Footprint
-

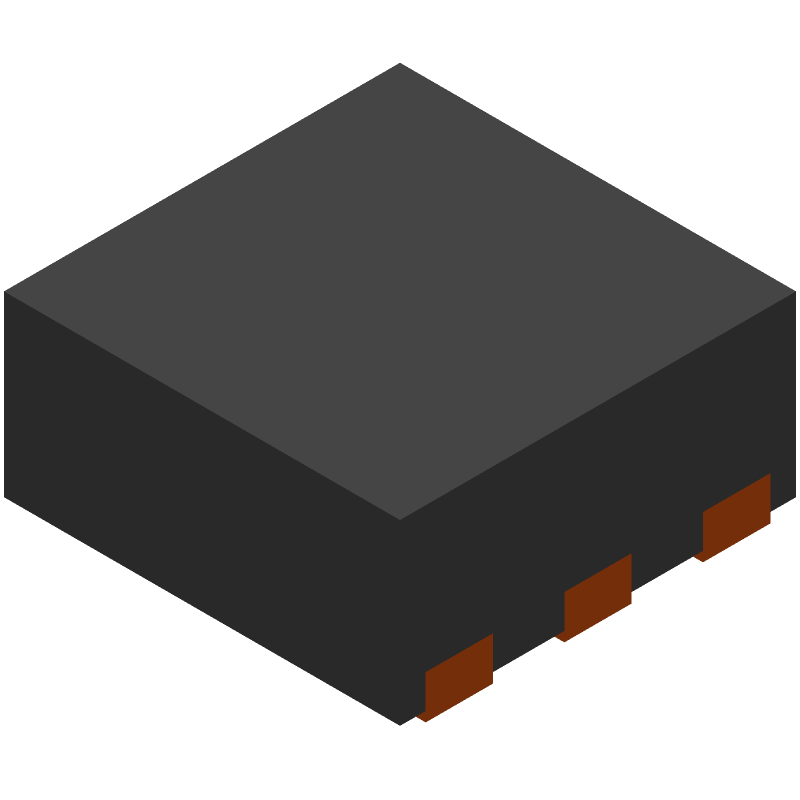

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SN74LVC1G06DSFR Part Data Attributes
|
|
SN74LVC1G06DSFR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74LVC1G06DSFR
Texas Instruments
Inverter, LVC/LCX/Z Series, 1-Func, 1-Input, CMOS, PDSO6
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SON | |
| Pin Count | 6 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Family | Lvc/Lcx/Z | |
| JESD-30 Code | S-PDSO-N6 | |
| JESD-609 Code | e4 | |
| Length | 1 Mm | |
| Load Capacitance (CL) | 50 Pf | |
| Logic IC Type | Inverter | |
| Max I(ol) | 0.032 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Inputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | Open-Drain | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | VSON | |
| Package Equivalence Code | SOLCC6,.04,14 | |
| Package Shape | Square | |
| Package Style | Small Outline, Very Thin Profile | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.01 Ma | |
| Prop. Delay@Nom-Sup | 4.5 Ns | |
| Propagation Delay (tpd) | 6.5 Ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | No | |
| Seated Height-Max | 0.4 Mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.35 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1 Mm |
Alternate Parts for SN74LVC1G06DSFR
This table gives cross-reference parts and alternative options found for SN74LVC1G06DSFR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74LVC1G06DSFR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
SN74LVC1G06DSFR Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the SN74LVC1G06DSFR is 100 MHz.
-
Yes, the SN74LVC1G06DSFR is 5V tolerant, meaning it can accept input voltages up to 5.5V even though its recommended operating voltage is 1.65V to 3.6V.
-
The propagation delay of the SN74LVC1G06DSFR is approximately 3.5 ns at 3.3V and 25°C.
-
Yes, the SN74LVC1G06DSFR is suitable for use in 3.3V systems, and its output voltage is compatible with 3.3V logic levels.
-
Yes, the SN74LVC1G06DSFR is available in a lead-free package, making it suitable for use in RoHS-compliant designs.
