Logic Bus Driver/Transceivers SN74LVC1G125DPWR

Logic
SN74LVC1G125DPWR
Texas Instruments
Description: Single 1.65-V to 5.5-V buffer with 3-state outputs 5-X2SON -40 to 125

Overview of SN74LVC1G125DPWR by Texas Instruments

Note: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
  • Distributor Offerings: ( 9 listings )
  • Number of FFF Equivalents: ( 0 replacements )
  • CAD Models: ( Available )
  • Number of Functional Equivalents: ( 7 options )
  • Part Data Attributes ( Available )
  • Reference Designs: ( Not Available )
Where used in Applications: Industrial Automation Aerospace and Defense

Price & Stock for SN74LVC1G125DPWR by Texas Instruments

Part # Manufacturer Description Stock Price Buy
DISTI # 296-38461-1-ND
DigiKey IC BUFF NON-INVERT 5.5V 5X2SON Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 50945
In Stock
  • 1 $0.3200
  • 10 $0.2140
  • 25 $0.1872
  • 100 $0.1575
  • 250 $0.1434
  • 500 $0.1349
  • 1,000 $0.1278
  • 3,000 $0.0975
$0.0975 / $0.3200 Buy Now
DISTI # 595-SN74LVC1G125DPWR
Mouser Electronics Buffers & Line Drivers Sgl Bus Buffer Gate RoHS: Compliant 17974
  • 1 $0.4400
  • 10 $0.3390
  • 100 $0.1900
  • 1,000 $0.1360
  • 3,000 $0.0970
$0.0970 / $0.4400 Buy Now
DISTI # SN74LVC1G125DPWR
TME IC: digital, bus buffer, Ch: 1, CMOS, SMD, X2SON5, 1.65÷5.5VDC, 74LVC Min Qty: 3 0
  • 3 $0.2450
  • 25 $0.1940
  • 100 $0.1420
  • 250 $0.1230
  • 1,000 $0.1030
$0.1030 / $0.2450 RFQ
Ameya Holding Limited IC BUF NON-INVERT 5.5V 4X2SON 701593
RFQ
ComSIT USA SINGLE BUS BUFFER GATE WITH 3-STATE OUTPUT Bus Driver, LVC/LCX/Z Series, 1-Func, 1-Bit, True Output, CMOS, PDSO4 RoHS: Compliant Stock EU - 2770
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # C1S746205045238
Chip1Stop Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 4-Pin X2SON EP T/R RoHS: Compliant pbFree: Yes 3000
  • 3,000 $0.0940
$0.0940 Buy Now
DISTI # C1S746203762526
Chip1Stop Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 4-Pin X2SON EP T/R RoHS: Compliant pbFree: Yes Container: Cut Tape 2964
  • 5 $0.2230
  • 50 $0.1770
  • 100 $0.1080
  • 1,000 $0.1070
$0.1070 / $0.2230 Buy Now
DISTI # C1S746203764250
Chip1Stop Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 4-Pin X2SON EP T/R RoHS: Compliant pbFree: Yes 478
  • 10 $0.3025
  • 25 $0.2891
  • 100 $0.1740
  • 250 $0.0982
$0.0982 / $0.3025 Buy Now
LCSC 32mA 1.65V5.5V 32mA X2-SON-5-EP(0.8x0.8) Buffers Drivers Receivers Transceivers ROHS 860
  • 5 $0.1906
  • 50 $0.1535
  • 150 $0.1355
  • 500 $0.1193
  • 3,000 $0.1149
  • 6,000 $0.1122
$0.1122 / $0.1906 Buy Now

CAD Models for SN74LVC1G125DPWR by Texas Instruments
You need to Sign In or Sign Up to download CAD models.

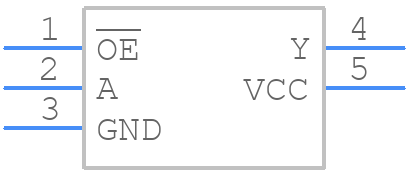

  • Part Symbol
    Part Symbol
  • Footprint
    footprint
  • 3D Model
    3D Model
25 Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

Part Data Attributes for SN74LVC1G125DPWR by Texas Instruments
Parametric Data

SN74LVC1G125DPWR
Texas Instruments
Buy Now
-
-
Pbfree Code
Yes
Rohs Code
Yes
Part Life Cycle Code
Active
Ihs Manufacturer
TEXAS INSTRUMENTS INC
Package Description
HVSON,
Reach Compliance Code
compliant
ECCN Code
EAR99
HTS Code
8542.39.00.01
Samacsys Manufacturer
Texas Instruments
Control Type
ENABLE LOW
Count Direction
UNIDIRECTIONAL
Family
LVC/LCX/Z
JESD-30 Code
S-PDSO-N4
JESD-609 Code
e4
Length
0.8 mm
Load Capacitance (CL)
50 pF
Logic IC Type
BUS DRIVER
Max I(ol)
0.032 A
Moisture Sensitivity Level
1
Number of Bits
1
Number of Functions
1
Number of Ports
2
Number of Terminals
5
Operating Temperature-Max
125 °C
Operating Temperature-Min
-40 °C
Output Characteristics
3-STATE
Output Polarity
TRUE
Package Body Material
PLASTIC/EPOXY
Package Code
HVSON
Package Shape
SQUARE
Package Style
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Packing Method
TR
Peak Reflow Temperature (Cel)
260
Power Supply Current-Max (ICC)
0.01 mA
Prop. Delay@Nom-Sup
4.7 ns
Propagation Delay (tpd)
9.3 ns
Seated Height-Max
0.4 mm
Supply Voltage-Max (Vsup)
5.5 V
Supply Voltage-Min (Vsup)
1.65 V
Supply Voltage-Nom (Vsup)
3.3 V
Surface Mount
YES
Technology
CMOS
Temperature Grade
AUTOMOTIVE
Terminal Finish
NICKEL PALLADIUM GOLD
Terminal Form
NO LEAD
Terminal Pitch
0.48 mm
Terminal Position
DUAL
Time@Peak Reflow Temperature-Max (s)
30
Width
0.8 mm
Want to compare parts?
  1. SN74LVC1G125DPWR
    Texas Instruments
    Single 1.65-V to 5.5-V buffer with 3-state outputs 5-X2SON -40 to 125
