Part Details for SN74LVC574ADGVR by Texas Instruments
Results Overview of SN74LVC574ADGVR by Texas Instruments
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
SN74LVC574ADGVR Information
SN74LVC574ADGVR by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74LVC574ADGVR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-12475-6-ND
|
DigiKey | IC FF D-TYPE 1-ELE 8-BIT Container: Digi-Reel |
1786 Digi-Reel® |
|
Buy Now | |
|
DISTI #
296-12475-1-ND
|
DigiKey | IC FF D-TYPE 1-ELE 8-BIT Min Qty: 1 Container: Cut Tape |
1786 Cut Tape |
|
$0.4665 / $0.9500 | Buy Now |
|
DISTI #
296-12475-2-ND
|
DigiKey | IC FF D-TYPE 1-ELE 8-BIT Min Qty: 2000 Container: Tape & Reel |
1786 Tape & Reel |
|
$0.4204 / $0.4521 | Buy Now |
|
DISTI #
595-SN74LVC574ADGVR
|
Mouser Electronics | Flip Flops Tri-State Octal RoHS: Compliant | 1379 |
|
$0.4380 / $0.9500 | Buy Now |
|
DISTI #
86025711
|
Verical | Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin TVSOP T/R RoHS: Compliant Min Qty: 687 Package Multiple: 1 Date Code: 0601 | Americas - 54000 |
|
$0.3764 / $0.5463 | Buy Now |
|
DISTI #
86026915
|
Verical | Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin TVSOP T/R RoHS: Compliant Min Qty: 687 Package Multiple: 1 Date Code: 0701 | Americas - 26000 |
|
$0.3764 / $0.5463 | Buy Now |
|
DISTI #
86040035
|
Verical | Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin TVSOP T/R RoHS: Compliant Min Qty: 687 Package Multiple: 1 Date Code: 9901 | Americas - 4000 |
|
$0.3764 / $0.5463 | Buy Now |
|
DISTI #
86040007
|
Verical | Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin TVSOP T/R RoHS: Compliant Min Qty: 687 Package Multiple: 1 Date Code: 1201 | Americas - 2000 |
|
$0.3764 / $0.5463 | Buy Now |
|
DISTI #
86039047
|
Verical | Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin TVSOP T/R RoHS: Compliant Min Qty: 687 Package Multiple: 1 Date Code: 0001 | Americas - 1400 |
|
$0.3764 / $0.5463 | Buy Now |
|
|
Bristol Electronics | Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin TVSOP T/R | 930 |
|
RFQ |
US Tariff Estimator: SN74LVC574ADGVR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

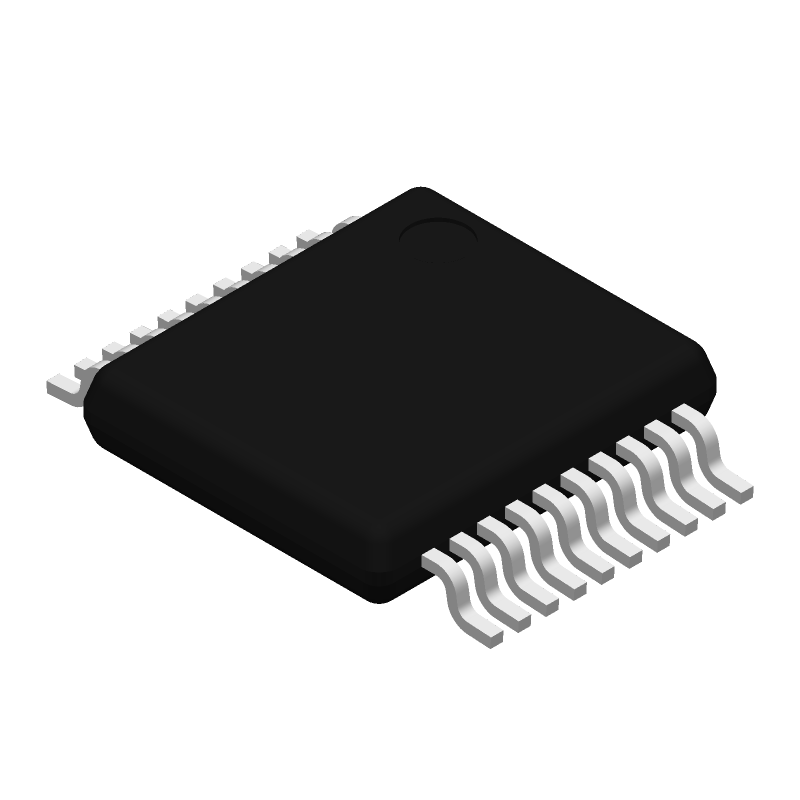

SN74LVC574ADGVR CAD Models
-

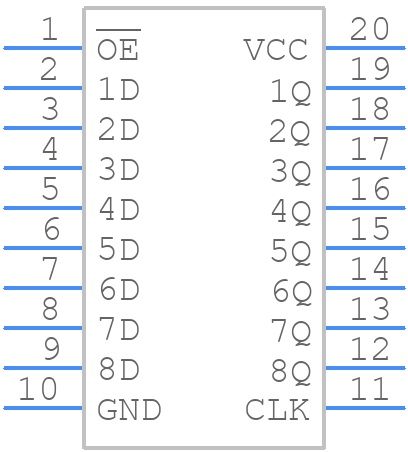

Part Symbol
-
