| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74LVC8T245DBR | Texas Instruments | $0.7046 | Bus Transceiver, LVC/LCX/Z Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24 | SN74LVC8T245DBRG4 vs SN74LVC8T245DBR |
| SN74LVCH8T245DBR | Texas Instruments | $1.4362 | Bus Transceiver, LVC/LCX/Z Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24 | SN74LVC8T245DBRG4 vs SN74LVCH8T245DBR |
Part Details for SN74LVC8T245DBRG4 by Texas Instruments
Results Overview of SN74LVC8T245DBRG4 by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (2 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN74LVC8T245DBRG4 Information
SN74LVC8T245DBRG4 by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74LVC8T245DBRG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-74LVC8T245DBRG4
|
Mouser Electronics | Translation - Voltage Levels 8B Dual Supply Bus T ransceiver A 595-SN A 595-SN74LVC8T245DBR RoHS: Compliant | 602 |
|
$0.7240 / $1.6400 | Buy Now |
|
|
Quest Components | IC,BUS TRANSCEIVER,SINGLE,8-BIT,LCX/LVC-CMOS,SSOP,24PIN,PLASTIC | 15 |
|
$0.8050 / $0.9660 | Buy Now |
|
|
Chip Stock | 8-Bit Dual-Supply Bus Transceiver with Configurable Voltage-Level Shifting and Three-State Outputs 24-SSOP -40 to 85 | 78480 |
|
RFQ | |
|
|
Vyrian | Bus Transceiver, LVC/LCX/Z Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24 | 4979 |
|
RFQ | |
|
|
Win Source Electronics | IC TRANSLATION TXRX 5.5V 24SSOP / Translation Transceiver 2 Element 8 Bit per Element 3-State Output 24-SSOP | 64310 |
|
$0.3728 / $0.4788 | Buy Now |
US Tariff Estimator: SN74LVC8T245DBRG4 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
SN74LVC8T245DBRG4 CAD Models
-
Part Symbol
-
Footprint
-

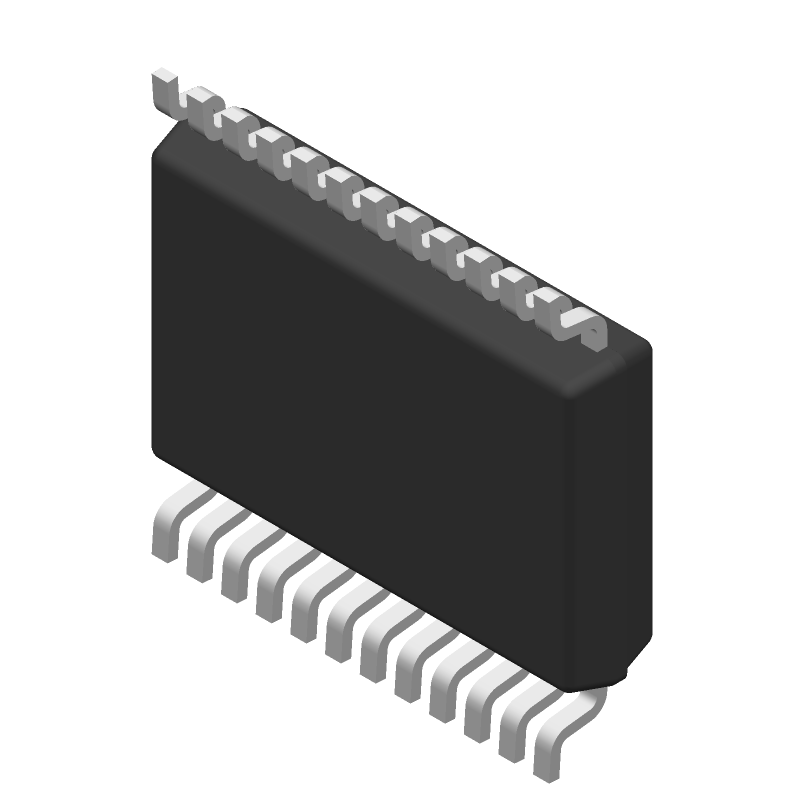

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SN74LVC8T245DBRG4 Part Data Attributes
|
|
SN74LVC8T245DBRG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74LVC8T245DBRG4
Texas Instruments
Bus Transceiver, LVC/LCX/Z Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SSOP | |
| Package Description | Ssop-24 | |
| Pin Count | 24 | |
| HTS Code | 8542.39.00.60 | |
| Additional Feature | Two Sepearate Configurable Power-Supply Rails For Port A And B | |
| Control Type | Common Control | |
| Count Direction | Bidirectional | |
| Family | Lvc/Lcx/Z | |
| JESD-30 Code | R-PDSO-G24 | |
| JESD-609 Code | e4 | |
| Length | 8.2 Mm | |
| Load Capacitance (CL) | 15 Pf | |
| Logic IC Type | Bus Transceiver | |
| Max I(ol) | 0.032 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Ports | 2 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-State | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP24,.3 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Shrink Pitch | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.025 Ma | |
| Prop. Delay@Nom-Sup | 6.3 Ns | |
| Propagation Delay (tpd) | 6.6 Ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2 Mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.08 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.3 Mm |
Alternate Parts for SN74LVC8T245DBRG4
This table gives cross-reference parts and alternative options found for SN74LVC8T245DBRG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74LVC8T245DBRG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
SN74LVC8T245DBRG4 Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the SN74LVC8T245DBRG4 is 320 MHz, but it can vary depending on the output load and supply voltage.
-
To ensure signal integrity, use a low-impedance PCB design, keep signal traces short, and use termination resistors if necessary. Also, ensure that the power supply is clean and well-regulated.
-
Yes, the SN74LVC8T245DBRG4 is compatible with 3.3V systems, but ensure that the input voltage does not exceed the maximum rating of 3.6V.
-
Power sequencing is not critical for the SN74LVC8T245DBRG4, but it's recommended to power up the device after the power supply has stabilized to prevent latch-up or damage.
-
Use a symmetrical layout, keep the input and output traces separate, and avoid crossing signal traces over the device. Also, use a solid ground plane and decouple the power supply with capacitors.
