AND Gate, AS Series, 4-Func, 2-Input, TTL, CDIP14

Part Details for SNJ54AS08J by Texas Instruments

Results Overview of SNJ54AS08J by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SNJ54AS08J Information

SNJ54AS08J by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for SNJ54AS08J

Part # Distributor Description Stock Price Buy
DISTI # 86293095
Verical AND Gate 4-Element 2-IN 14-Pin CDIP Tube RoHS: Not Compliant Min Qty: 25 Package Multiple: 1 Date Code: 0301 Americas - 124
  • 25 $16.0000
  • 100 $15.2000
  • 500 $14.4000
  • 1,000 $13.6000
  • 10,000 $12.8000
$12.8000 / $16.0000 Buy Now
Bristol Electronics AND Gate 4-Element 2-IN 14-Pin CDIP Tube 43
RFQ
Bristol Electronics AND Gate 4-Element 2-IN 14-Pin CDIP Tube Min Qty: 1 18
  • 1 $14.7712
  • 5 $11.8170
$11.8170 / $14.7712 Buy Now
Quest Components IC,LOGIC GATE,QUAD 2-INPUT AND,AS-TTL,DIP,14PIN,CERAMIC 14
  • 1 $15.3900
  • 3 $14.3640
  • 6 $13.6800
$13.6800 / $15.3900 Buy Now
Quest Components IC,LOGIC GATE,QUAD 2-INPUT AND,AS-TTL,DIP,14PIN,CERAMIC 14
  • 1 $18.4640
  • 4 $13.8480
$13.8480 / $18.4640 Buy Now
Rochester Electronics AND Gate, AS Series, 4-Func, 2-Input, TTL, CDIP14 RoHS: Not Compliant Status: Active Min Qty: 1 124
  • 25 $12.8000
  • 100 $12.1600
  • 500 $11.5200
  • 1,000 $10.8800
  • 10,000 $10.2400
$10.2400 / $12.8000 Buy Now
DISTI # 86293095
Verical AND Gate 4-Element 2-IN 14-Pin CDIP Tube RoHS: Not Compliant Min Qty: 25 Package Multiple: 1 Date Code: 0301 Americas - 124
  • 25 $16.0000
  • 100 $15.2000
  • 500 $14.4000
  • 1,000 $13.6000
  • 10,000 $12.8000
$12.8000 / $16.0000 Buy Now
DISTI # 86293095
Verical AND Gate 4-Element 2-IN 14-Pin CDIP Tube RoHS: Not Compliant Min Qty: 25 Package Multiple: 1 Date Code: 0301 Americas - 124
  • 25 $16.0000
  • 100 $15.2000
  • 500 $14.4000
  • 1,000 $13.6000
  • 10,000 $12.8000
$12.8000 / $16.0000 Buy Now
Vyrian AND Gate, AS Series, 4-Func, 2-Input, TTL, CDIP14 4367
RFQ

US Tariff Estimator: SNJ54AS08J by Texas Instruments

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

SNJ54AS08J
Texas Instruments
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for SNJ54AS08J

SNJ54AS08J CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

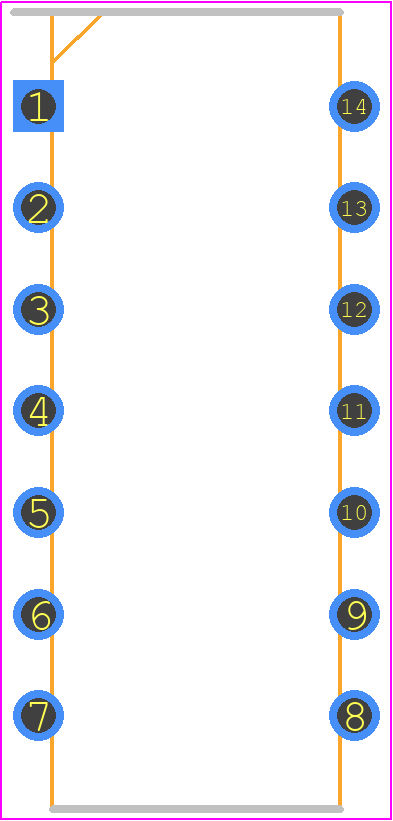

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SNJ54AS08J Part Data Attributes

Parametric Data
SNJ54AS08J Texas Instruments
Buy Now Datasheet
Compare Parts:
SNJ54AS08J Texas Instruments AND Gate, AS Series, 4-Func, 2-Input, TTL, CDIP14
Pbfree Code Yes
Part Life Cycle Code Active
Part Package Code DIP
Pin Count 14
ECCN Code EAR99
HTS Code 8542.39.00.90
Family As
JESD-30 Code R-GDIP-T14
JESD-609 Code e0
Length 19.56 Mm
Load Capacitance (CL) 50 Pf
Logic IC Type And Gate
Max I(ol) 0.02 A
Number of Functions 4
Number of Inputs 2
Number of Terminals 14
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Body Material Ceramic, Glass-Sealed
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape Rectangular
Package Style In-Line
Packing Method Tube
Power Supply Current-Max (ICC) 24 Ma
Prop. Delay@Nom-Sup 6.5 Ns
Propagation Delay (tpd) 6.5 Ns
Qualification Status Not Qualified
Schmitt Trigger No
Screening Level Mil-Prf-38535
Seated Height-Max 5.08 Mm
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount No
Technology Ttl
Temperature Grade Military
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form Through-Hole
Terminal Pitch 2.54 Mm
Terminal Position Dual
Width 7.62 Mm
