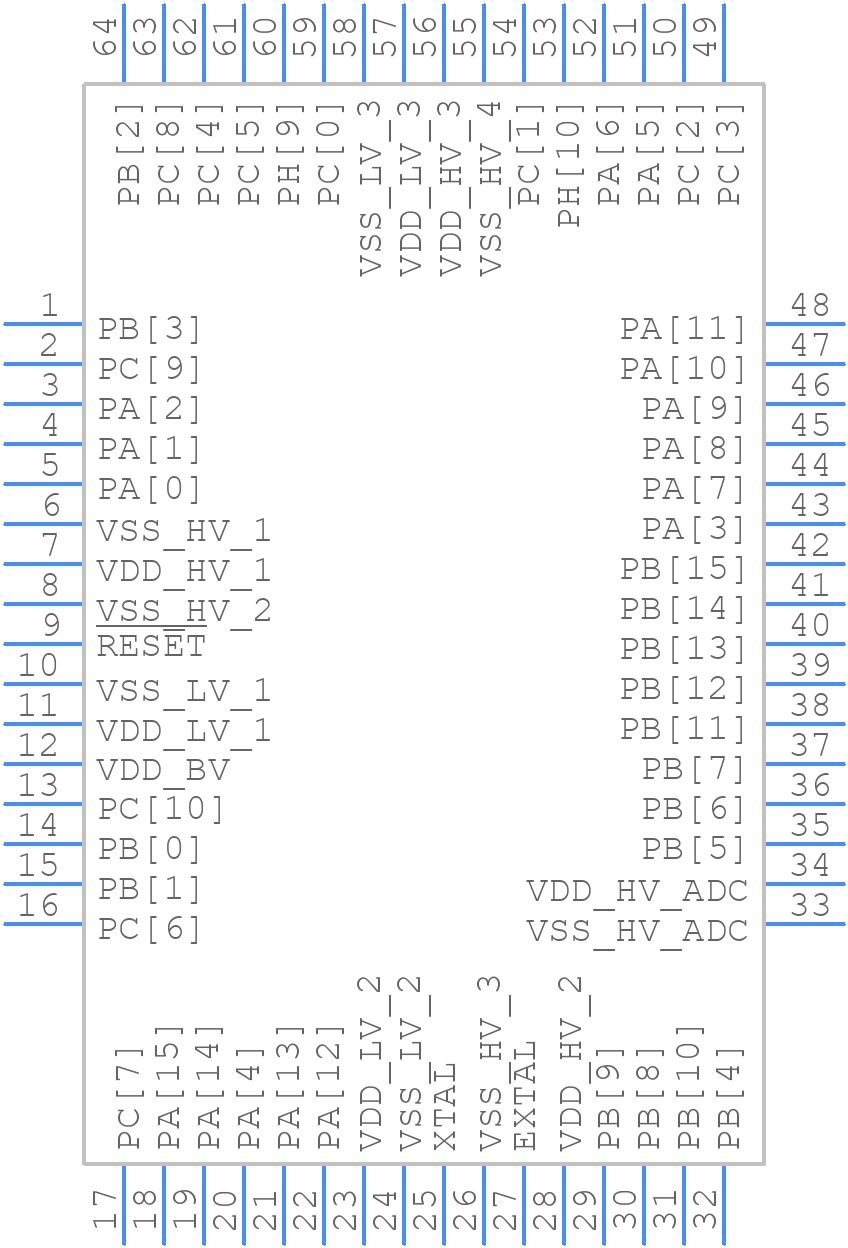

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SPC560D30L1B4E0X by STMicroelectronics
Overview of SPC560D30L1B4E0X by STMicroelectronics
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (2 crosses)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Transportation and Logistics
Agriculture Technology
Automotive
Robotics and Drones
Price & Stock for SPC560D30L1B4E0X
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
79X6419
|
Newark | 32-Bit Auto Mcus Gp |Stmicroelectronics SPC560D30L1B4E0X Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
497-19300-1-ND
|
DigiKey | IC MCU 32BIT 128KB FLASH 64LQFP Min Qty: 1 Lead time: 30 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Temporarily Out of Stock |
|
$3.3408 / $6.6600 | Buy Now |
|
DISTI #
SPC560D30L1B4E0X
|
Avnet Americas | MCU 32-Bit SPC560D30x e200z0h RISC 256KB Flash 3.3V/5V 64-Pin LQFP T/R - Tape and Reel (Alt: SPC560D30L1B4E0X) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 30 Weeks, 0 Days Container: Reel | 0 |
|
$3.2455 / $3.6932 | Buy Now |
|
DISTI #
511-SPC560D30L1B4E0X
|
Mouser Electronics | ARM Microcontrollers - MCU 32-bit Power Architecture MCU for Automotive Body and Gateway Applications RoHS: Compliant | 1000 |
|
$3.2700 / $6.6600 | Buy Now |
|
|
STMicroelectronics | 32-bit Power Architecture MCU for Automotive Body and Gateway Applications RoHS: Compliant Min Qty: 1 | 1000 |
|
$4.0900 / $6.5300 | Buy Now |
|
DISTI #
73154575
|
Verical | MCU 32-bit e200z0h RISC 128KB Flash 3.3V/5V Automotive AEC-Q100 64-Pin LQFP T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2342 | Americas - 35000 |
|
$3.2232 / $3.2273 | Buy Now |
|
|
Ameya Holding Limited | SPC560xx Series 128 kB Flash 12 kB RAM 48 MHz 32-Bit Microcontroller - LQFP-64 | 1000 |
|
RFQ | |
|
DISTI #
SPC560D30L1B4E0X
|
Avnet Silica | MCU 32-Bit SPC560D30x e200z0h RISC 256KB Flash 3.3V/5V 64-Pin LQFP T/R (Alt: SPC560D30L1B4E0X) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 17 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
SPC560D30L1B4E0X
|
EBV Elektronik | MCU 32-Bit SPC560D30x e200z0h RISC 256KB Flash 3.3V/5V 64-Pin LQFP T/R (Alt: SPC560D30L1B4E0X) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 31 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for SPC560D30L1B4E0X
SPC560D30L1B4E0X CAD Models
SPC560D30L1B4E0X Part Data Attributes
|
|
SPC560D30L1B4E0X
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
SPC560D30L1B4E0X
STMicroelectronics
32-bit Power Architecture MCU for Automotive Body and Gateway Applications
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | LQFP-64 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A991.B.4.A | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 30 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Has ADC | YES | |
| Additional Feature | ALSO OPERATES AT 5 V | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Boundary Scan | YES | |
| CPU Family | SPC56 | |
| Clock Frequency-Max | 16 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | S-PQFP-G64 | |
| Length | 10 mm | |
| Low Power Mode | YES | |
| Number of DMA Channels | 16 | |
| Number of I/O Lines | 45 | |
| Number of Terminals | 64 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP64,.47SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| RAM (bytes) | 12288 | |
| ROM (words) | 131072 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.6 mm | |
| Speed | 48 MHz | |
| Supply Current-Max | 100 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3.3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 10 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for SPC560D30L1B4E0X
This table gives cross-reference parts and alternative options found for SPC560D30L1B4E0X. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SPC560D30L1B4E0X, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| SPC560D30L1C4E0X | MICROCONTROLLER | STMicroelectronics | SPC560D30L1B4E0X vs SPC560D30L1C4E0X |
| SPC560D30L1B4E0Y | MICROCONTROLLER | STMicroelectronics | SPC560D30L1B4E0X vs SPC560D30L1B4E0Y |
