SPC560P40L1CEFAR by: STMicroelectronics

CMOS, PQFP64

Part Details for SPC560P40L1CEFAR by STMicroelectronics

Results Overview of SPC560P40L1CEFAR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Transportation and Logistics Healthcare Renewable Energy Automotive Robotics and Drones

SPC560P40L1CEFAR Information

SPC560P40L1CEFAR by STMicroelectronics is an Other uP/uC/Peripheral IC.
Other uPs/uCs/Peripheral ICs are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for SPC560P40L1CEFAR

Part # Distributor Description Stock Price Buy
DISTI # 497-13564-2-ND
DigiKey IC MCU 32BIT 256KB FLASH 64LQFP Min Qty: 1000 Lead time: 20 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 1,000 $3.2717
$3.2717 Buy Now
DISTI # SPC560P40L1CEFAR
Avnet Americas MCU 32-Bit SPC560P40x e200z0h RISC 256KB Flash 5V 64-Pin LQFP T/R - Tape and Reel (Alt: SPC560P40L1CEFAR) COO: France RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 20 Weeks, 0 Days Container: Tape & Reel 0
  • 1,000 $3.3606
  • 2,000 $3.2210
  • 4,000 $3.2046
  • 8,000 $3.1883
  • 16,000 $3.1719
$3.1719 / $3.3606 Buy Now
DISTI # 511-SPC560P40L1CEFAR
Mouser Electronics 32-bit Microcontrollers - MCU 32-bit Pwr Architect MCU Auto Chassis RoHS: Compliant 980
  • 1 $7.4500
  • 10 $6.7300
  • 1,000 $3.2700
$3.2700 / $7.4500 Buy Now
STMicroelectronics 32-bit Power Architecture MCU for Automotive Chassis and Safety Applications COO: France RoHS: Compliant Min Qty: 1 980
  • 1 $7.3000
  • 10 $6.6000
  • 25 $6.6000
  • 100 $6.6000
  • 250 $6.6000
  • 500 $6.6000
$6.6000 / $7.3000 Buy Now
DISTI # SPC560P40L1CEFAR
IBS Electronics 32-BIT POWER ARCHITECTURE MCU FOR AUTOMOTIVE CHASSIS AND SAFETY APPLICATIONS Min Qty: 1000 Package Multiple: 1 4000
  • 1,000 $3.5840
$3.5840 Buy Now
DISTI # SPC560P40L1CEFAR
Avnet Silica MCU 32Bit SPC560P40x e200z0h RISC 256KB Flash 5V 64Pin LQFP TR (Alt: SPC560P40L1CEFAR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 21 Weeks, 0 Days Silica - 0
Buy Now
DISTI # SPC560P40L1CEFAR
EBV Elektronik MCU 32Bit SPC560P40x e200z0h RISC 256KB Flash 5V 64Pin LQFP TR (Alt: SPC560P40L1CEFAR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 21 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: SPC560P40L1CEFAR by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

SPC560P40L1CEFAR
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for SPC560P40L1CEFAR

SPC560P40L1CEFAR CAD Models

  • Part Symbol

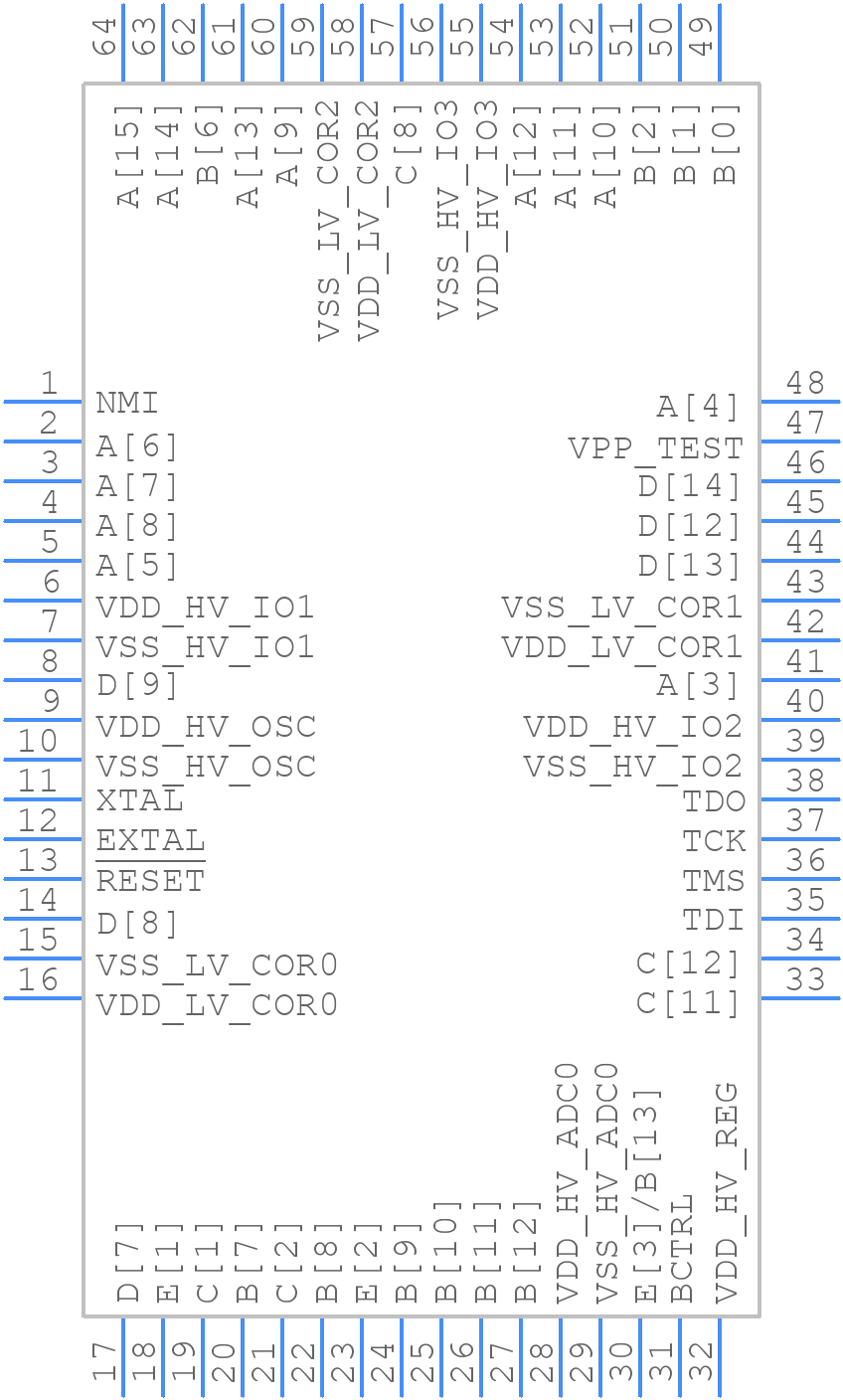

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SPC560P40L1CEFAR Part Data Attributes

Parametric Data
SPC560P40L1CEFAR STMicroelectronics
Buy Now Datasheet
Compare Parts:
SPC560P40L1CEFAR STMicroelectronics CMOS, PQFP64
Rohs Code Yes
Part Life Cycle Code Active
Package Description Lfqfp, Qfp64,.47sq,20
Reach Compliance Code Compliant
ECCN Code 5A991.B.4.A
HTS Code 8542.31.00.01
Factory Lead Time 26 Weeks
Has ADC Yes
Address Bus Width 32
Bit Size 32
Boundary Scan Yes
CPU Family E200z0h
Clock Frequency-Max 40 Mhz
DAC Channels No
DMA Channels Yes
External Data Bus Width 32
JESD-30 Code S-PQFP-G64
Length 10 Mm
Number of DMA Channels 16
Number of I/O Lines 37
Number of Terminals 64
Number of Timers 6
On Chip Program ROM Width 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code LFQFP
Package Equivalence Code QFP64,.47SQ,20
Package Shape Square
Package Style Flatpack, Low Profile, Fine Pitch
Peak Reflow Temperature (Cel) Not Specified
Qualification Status Not Qualified
RAM (bytes) 20480
ROM (words) 262144
ROM Programmability Flash
Screening Level Aec-Q100
Speed 64 Mhz
Supply Current-Max 65 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Automotive
Terminal Form Gull Wing
Terminal Pitch 0.5 Mm
Terminal Position Quad
Time@Peak Reflow Temperature-Max (s) Not Specified
Width 10 Mm
uPs/uCs/Peripheral ICs Type Soc

Alternate Parts for SPC560P40L1CEFAR

This table gives cross-reference parts and alternative options found for SPC560P40L1CEFAR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SPC560P40L1CEFAR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SPC560P40L1CEFAX STMicroelectronics Check for Price SoC, CMOS, PQFP64 SPC560P40L1CEFAR vs SPC560P40L1CEFAX
SPC560P40L1CEFAY STMicroelectronics Check for Price CMOS, PQFP64 SPC560P40L1CEFAR vs SPC560P40L1CEFAY
SPC560P40L1BEFAR STMicroelectronics Check for Price CMOS, PQFP64 SPC560P40L1CEFAR vs SPC560P40L1BEFAR
SPC560P40L1BEFAY STMicroelectronics Check for Price CMOS, PQFP64 SPC560P40L1CEFAR vs SPC560P40L1BEFAY
SPC560P40L1BEFAX STMicroelectronics Check for Price SoC, CMOS, PQFP64 SPC560P40L1CEFAR vs SPC560P40L1BEFAX
equivalents icon

SPC560P40L1CEFAR Related Parts

SPC560P40L1CEFAR Frequently Asked Questions (FAQ)

  • The SPC560P40L1CEFAR can operate in a temperature range of -40°C to 125°C.

  • The clock settings can be configured using the Clock Generation Unit (CGU) module. The CGU module allows you to configure the clock sources, clock frequencies, and clock distribution. Refer to the device's reference manual for more information.

  • The maximum frequency of the CPU is 80 MHz.

  • The SPC560P40L1CEFAR has 1 MB of flash memory.

  • Yes, the SPC560P40L1CEFAR is an automotive-grade microcontroller and is suitable for use in automotive applications.
