SPM6530T-R47M170 Information
SPM6530T-R47M170 by TDK Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for SPM6530T-R47M170
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
445-3878-1-ND
|
DigiKey | FIXED IND 470NH 20A 3.63MOHM SMD Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.4387 / $0.9400 | Buy Now |
|
DISTI #
SPM6530T-R47M170
|
Avnet Americas | Power Inductor (SMD), 470 nH, ? 20%, 20 A, Shielded, 20.5 A, 7.1mm x 6.5mm x 3mm - Tape and Reel (Alt: SPM6530T-R47M170) COO: China RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.4244 / $0.5005 | Buy Now |
|
DISTI #
SPM6530T-R47M170
|
Avnet Americas | Power Inductor (SMD), 470 nH, ? 20%, 20 A, Shielded, 20.5 A, 7.1mm x 6.5mm x 3mm - Tape and Reel (Alt: SPM6530T-R47M170) COO: China RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.4244 / $0.5005 | Buy Now |
|
DISTI #
810-SPM6530T-R47M170
|
Mouser Electronics | Power Inductors - SMD 0.47uH 0.0033ohms 7.1x6.5x3mm RoHS: Compliant | 0 |
|
$0.4650 / $0.9400 | Order Now |
|
DISTI #
V72:2272_06600400
|
Arrow Electronics | Inductor Power Shielded Wirewound 0.47uH 20% 100KHz Metal 20A 0.00363Ohm DCR T/R COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2128 Container: Cut Strips | Americas - 55 |
|
$0.1968 / $0.4502 | Buy Now |
|
|
Future Electronics | RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks Container: Reel | 0Reel |
|
$0.4750 | Buy Now |
|
|
Future Electronics | SPM Series 7.1 x 6.5 mm 470 nH ±20% Tol. 17 A Shielded Wirewound Power Inductor RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 15 Weeks Container: Reel | 0Reel |
|
$0.4750 / $0.4950 | Buy Now |
|
DISTI #
30594039
|
Verical | Inductor Power Shielded Wirewound 0.47uH 20% 100KHz Metal 20A 0.00363Ohm DCR T/R RoHS: Compliant Min Qty: 61 Package Multiple: 1 | Americas - 1000 |
|
$0.4828 | Buy Now |
|
DISTI #
58056788
|
Verical | Inductor Power Shielded Wirewound 0.47uH 20% 100KHz Metal 20A 0.00363Ohm DCR T/R RoHS: Compliant Min Qty: 14 Package Multiple: 1 Date Code: 2128 | Americas - 55 |
|
$0.1968 / $0.2002 | Buy Now |
|
|
Bristol Electronics | Min Qty: 5 | 5988 |
|
$0.3009 / $1.1572 | Buy Now |
US Tariff Estimator: SPM6530T-R47M170 by TDK Corporation
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SPM6530T-R47M170
SPM6530T-R47M170 CAD Models
-
Part Symbol
-

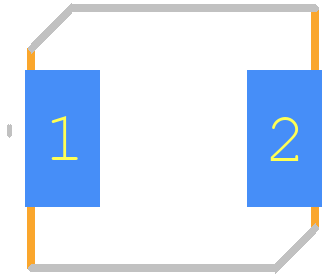

Footprint
-

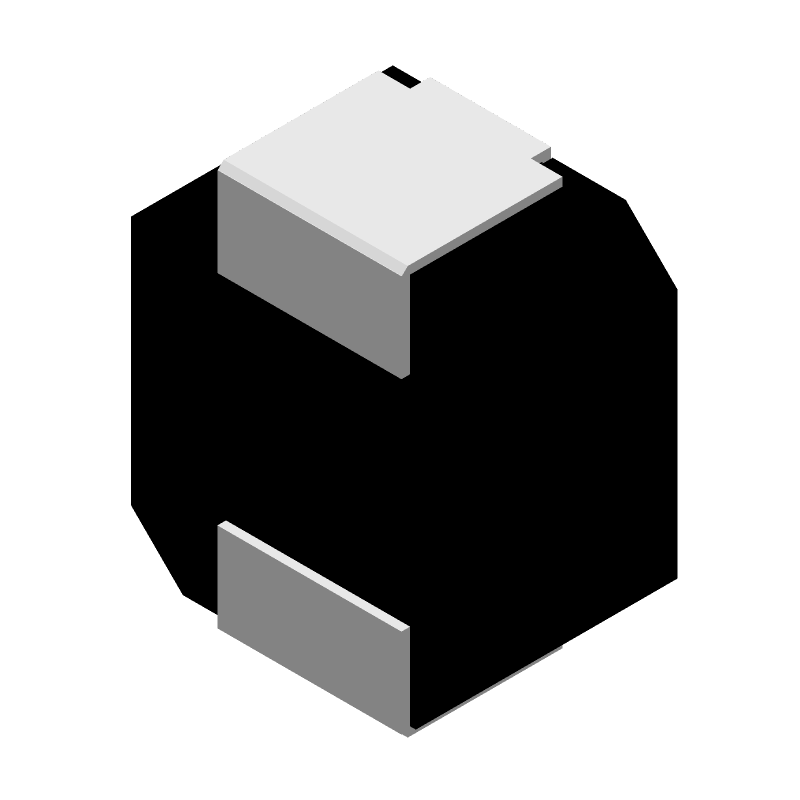

3D Model
