ST202ECDR Information
ST202ECDR by STMicroelectronics is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ST202ECDR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
30AC0983
|
Newark | Conditioning & Interfaces Rohs Compliant: Yes |Stmicroelectronics ST202ECDR RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 5000 |
|
$0.7740 | Buy Now |
|
DISTI #
95M7250
|
Newark | Rs232 Transceiver, 0 To 70Deg C, Ic Type:Rs232 Transceiver, No. Of Receivers:2Receivers, No. Of Transmitters:2, Communication Mode:-, Data Rate Max:400Kbps, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, Ic Case/Package:Soic Rohs Compliant: Yes |Stmicroelectronics ST202ECDR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.6730 / $1.4700 | Buy Now |
|
DISTI #
497-3727-1-ND
|
DigiKey | IC TRANSCEIVER FULL 2/2 16SO Min Qty: 1 Lead time: 11 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
6204 In Stock |
|
$0.8468 / $1.7400 | Buy Now |
|
DISTI #
ST202ECDR
|
Avnet Americas | - Tape and Reel (Alt: ST202ECDR) COO: China RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 11 Weeks, 0 Days Container: Tape & Reel | 5000 |
|
$0.5382 | Buy Now |
|
DISTI #
511-ST202ECDR
|
Mouser Electronics | RS-232 Interface IC 5V 2Driver/2Receiver RoHS: Compliant | 2832 |
|
$0.7070 / $1.4300 | Buy Now |
|
DISTI #
V36:1790_06549189
|
Arrow Electronics | Dual Transmitter/Receiver RS-232 16-Pin SO T/R COO: China RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 11 Weeks Date Code: 2328 | Americas - 2500 |
|
$0.5964 / $0.7494 | Buy Now |
|
DISTI #
V72:2272_06549189
|
Arrow Electronics | Dual Transmitter/Receiver RS-232 16-Pin SO T/R COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks Date Code: 2311 Container: Cut Strips | Americas - 1518 |
|
$0.7569 / $0.8119 | Buy Now |
|
|
STMicroelectronics | ?15kV ESD-protected 5V RS-232 transceiver COO: Singapore RoHS: Compliant Min Qty: 1 | 2832 |
|
$0.8200 / $1.4000 | Buy Now |
|
|
Future Electronics | ST202E Series ±15 kV ESD Protected 5 V RS-232 Transceiver - SOIC-16 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 11 Weeks Container: Reel | 2500Reel |
|
$0.6100 / $0.6250 | Buy Now |
|
|
Future Electronics | ST202E Series ±15 kV ESD Protected 5 V RS-232 Transceiver - SOIC-16 RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 2500 Lead time: 11 Weeks Container: Reel | 0Reel |
|
$0.6100 / $0.6250 | Buy Now |
US Tariff Estimator: ST202ECDR by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ST202ECDR
ST202ECDR CAD Models
-

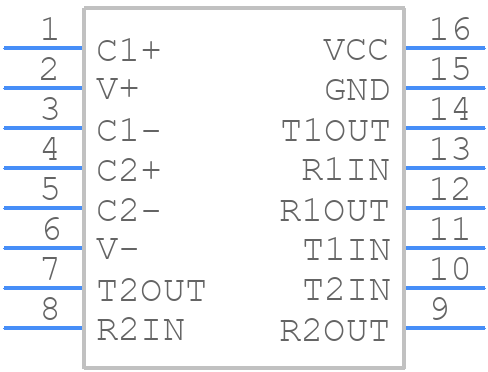

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ST202ECDR Part Data Attributes
|
|
ST202ECDR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
ST202ECDR
STMicroelectronics
Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO16
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Sop, Sop16,.25 | |
| Pin Count | 16 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Differential Output | No | |
| Driver Number of Bits | 2 | |
| Input Characteristics | Schmitt Trigger | |
| Interface IC Type | Line Transceiver | |
| Interface Standard | Eia-232-E; Tia-232-E; V.28 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Out Swing-Min | 10 V | |
| Output Low Current-Max | 0.0032 A | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 10000 Ns | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 1.75 Mm | |
| Supply Current-Max | 10 Ma | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Temperature Grade | Commercial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | Not Specified | |
| Transmit Delay-Max | 2000 Ns | |
| Width | 3.9 Mm |
Alternate Parts for ST202ECDR
This table gives cross-reference parts and alternative options found for ST202ECDR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ST202ECDR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TRS202ECD | Texas Instruments | $0.5268 | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO16 | ST202ECDR vs TRS202ECD |
| TRS202EID | Texas Instruments | $0.5706 | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO16 | ST202ECDR vs TRS202EID |
| MAX202CSE | Maxim Integrated Products | $2.3729 | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO16 | ST202ECDR vs MAX202CSE |
| MAX202CSE+T | Analog Devices Inc | $2.9398 | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO16 | ST202ECDR vs MAX202CSE+T |
| MAX202CSE+T | Maxim Integrated Products | $3.8679 | Line Driver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO16 | ST202ECDR vs MAX202CSE+T |
| MAX202EESE+G002 | Maxim Integrated Products | Check for Price | Line Driver/Receiver, 2 Driver, PDSO16 | ST202ECDR vs MAX202EESE+G002 |
| MAX202EESE-T | Maxim Integrated Products | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO16 | ST202ECDR vs MAX202EESE-T |
| ST202ECD | STMicroelectronics | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO16 | ST202ECDR vs ST202ECD |
