ST7580TR Information
ST7580TR by STMicroelectronics is an Other Telecom IC.
Other Telecom ICs are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for ST7580TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2806988RL
|
Farnell | ETHERNET CONTROLLER, VFQFPN-48 COO: China RoHS: Compliant Min Qty: 10 Lead time: 18 Weeks, 1 Days Container: Tape & Reel | 1743 |
|
$10.6404 / $11.4857 | Buy Now |
|
DISTI #
2806988
|
Farnell | ETHERNET CONTROLLER, VFQFPN-48 COO: China RoHS: Compliant Min Qty: 1 Lead time: 18 Weeks, 1 Days Container: Cut Tape | 1743 |
|
$10.6404 / $11.7943 | Buy Now |
|
DISTI #
497-13201-2-ND
|
DigiKey | IC TELECOM INTERFACE 48VFQFPN Min Qty: 2500 Lead time: 35 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$7.0695 | Buy Now |
|
DISTI #
ST7580TR
|
Avnet Americas | Power Line Networking, Line Driver/Receiver, VFQFPN, 48 Pin - Tape and Reel (Alt: ST7580TR) COO: Italy RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 35 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$6.6342 / $7.5820 | Buy Now |
|
DISTI #
511-ST7580TR
|
Mouser Electronics | Network Controller & Processor ICs FSK, PSK Multi-Mode PWR LN SOC 9.6 kbps RoHS: Compliant | 0 |
|
Order Now | |
|
DISTI #
V36:1790_06557126
|
Arrow Electronics | Single Transmitter/Receiver 48-Pin VFQFPN EP T/R COO: Philippines RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 35 Weeks Date Code: 2337 | Americas - 5000 |
|
$6.1920 | Buy Now |
|
|
STMicroelectronics | FSK, PSK multi-mode power line networking system-on-chip COO: Italy RoHS: Compliant Min Qty: 1 | 0 |
|
$6.5100 / $9.6500 | Buy Now |
|
|
Future Electronics | ST7580 Series 8 - 18 V FSK/PSK Power Line Networking System-on-Chip - VFQFPN48 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 35 Weeks Container: Reel | 0Reel |
|
$6.4800 | Buy Now |
|
|
Future Electronics | ST7580 Series 8 - 18 V FSK/PSK Power Line Networking System-on-Chip - VFQFPN48 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 35 Weeks Container: Reel | 0Reel |
|
$6.4800 | Buy Now |
|
DISTI #
81320871
|
Verical | Single Transmitter/Receiver 48-Pin VFQFPN EP T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Date Code: 2337 | Americas - 5000 |
|
$6.1920 | Buy Now |
US Tariff Estimator: ST7580TR by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ST7580TR
ST7580TR CAD Models
-

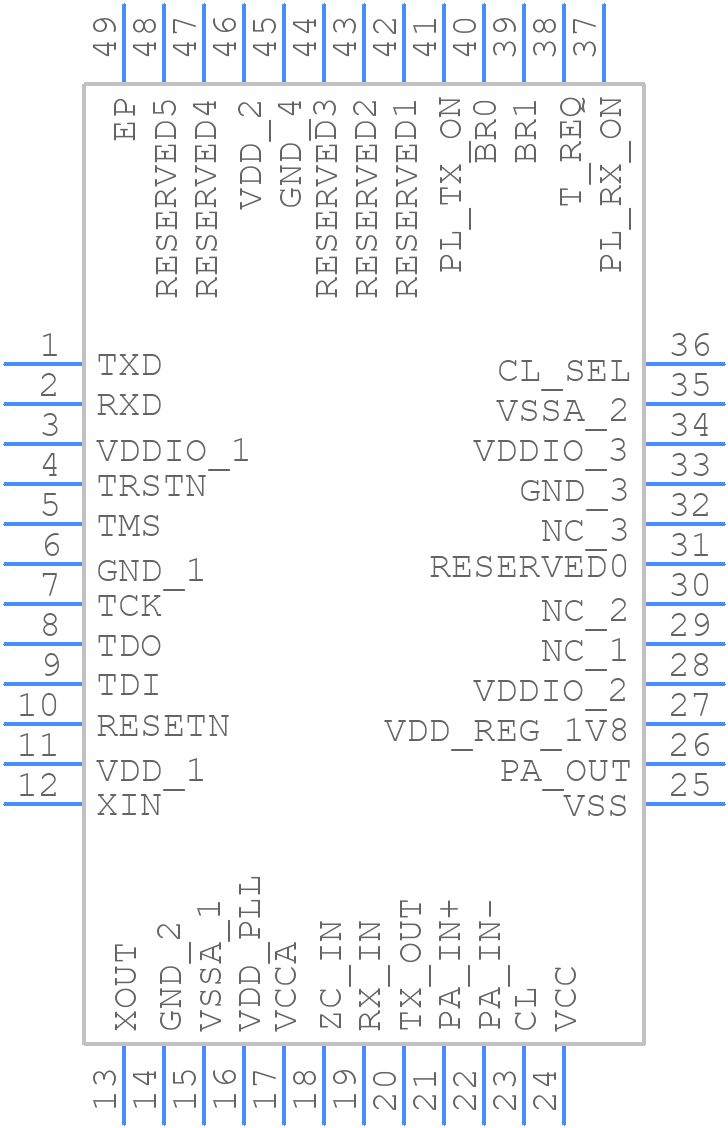

Part Symbol
-

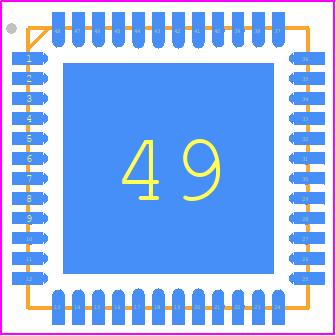

Footprint
-
