Part Details for STA7360 by STMicroelectronics
Results Overview of STA7360 by STMicroelectronics
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for STA7360
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
STA7360-ND
|
DigiKey | IC AUDIO AMP AB 11-MULTIWATT Min Qty: 1000 Container: Tube |
0 Tube |
|
$1.1778 | Buy Now |
|
|
Vyrian | Audio Amplifier, 11W, 2 Channel(s), 1 Func, Bipolar, PZMA11 | 6366 |
|
RFQ |
US Tariff Estimator: STA7360 by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

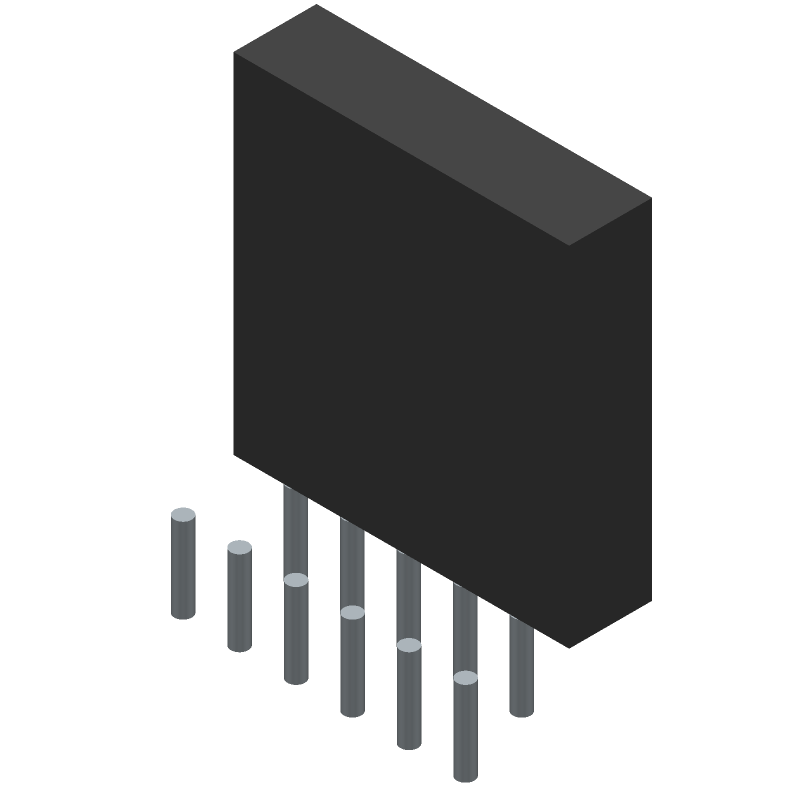

STA7360 CAD Models
-
Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
STA7360 Part Data Attributes
|
|
STA7360
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STA7360
STMicroelectronics
Audio Amplifier, 11W, 2 Channel(s), 1 Func, Bipolar, PZMA11
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | ZFM | |
| Package Description | Multiwatt-11 | |
| Pin Count | 11 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Bandwidth-Nom | 22 Khz | |
| Consumer IC Type | Audio Amplifier | |
| Gain | 20 Db | |
| Harmonic Distortion | 10% | |
| JESD-30 Code | R-PZIP-T11 | |
| JESD-609 Code | e3 | |
| Number of Channels | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 11 | |
| Output Power-Nom | 11 W | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | ZIP | |
| Package Equivalence Code | ZIP11,.2,.17,67TB | |
| Package Shape | Rectangular | |
| Package Style | Microelectronic Assembly | |
| Qualification Status | Not Qualified | |
| Supply Current-Max | 120 Ma | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 8 V | |
| Surface Mount | No | |
| Technology | Bipolar | |
| Terminal Finish | Matte Tin | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 1.7 Mm | |
| Terminal Position | Zig-Zag |
