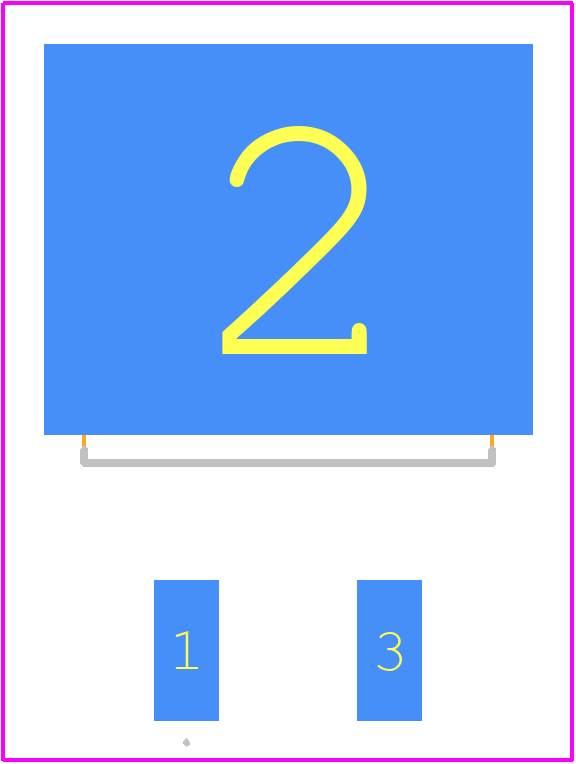

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STB28N60M2 by STMicroelectronics
Results Overview of STB28N60M2 by STMicroelectronics
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
STB28N60M2 Information
STB28N60M2 by STMicroelectronics is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for STB28N60M2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
STB28N60M2
|
Avnet Americas | - Tape and Reel (Alt: STB28N60M2) COO: Singapore RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days Container: Reel | 0 |
|
$0.8000 / $0.9143 | Buy Now |
|
DISTI #
STB28N60M2
|
Avnet Americas | - Tape and Reel (Alt: STB28N60M2) COO: Singapore RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
|
STMicroelectronics | N-channel 600 V, 135 mOhm typ., 22 A MDmesh M2 Power MOSFETs in a D2PAK package COO: Singapore RoHS: Compliant Min Qty: 1 | 1958 |
|
$0.9600 / $2.4800 | Buy Now |
|
DISTI #
STB28N60M2-STM-0
|
TME | Transistor: N-MOSFET, 600V, 22A, 170W, D2PAK,TO263, SMT Min Qty: 1000 | 2000 |
|
$1.0548 | Buy Now |
|
DISTI #
STB28N60M2
|
Avnet Silica | (Alt: STB28N60M2) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days | Silica - 3000 |
|
Buy Now | |
|
|
Chip Stock | N-channel600V,0.135Ohmtyp.,22AMDmeshM2PowerMOSFETsinD2PAKpackage | 21575 |
|
RFQ | |
|
DISTI #
STB28N60M2
|
EBV Elektronik | (Alt: STB28N60M2) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 16 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | 600V 22A 150m10V11A 170W 4V 1 N-Channel D2PAK Single FETs MOSFETs RoHS | 8 |
|
$2.5973 / $2.7430 | Buy Now |
Part Details for STB28N60M2
STB28N60M2 CAD Models
STB28N60M2 Part Data Attributes
|
|
STB28N60M2
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STB28N60M2
STMicroelectronics
N-channel 600 V, 0.135 Ohm typ., 22 A MDmesh M2 Power MOSFETs in D2PAK package
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | D2PAK-3/2 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 14 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Avalanche Energy Rating (Eas) | 350 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 600 V | |
| Drain Current-Max (ID) | 22 A | |
| Drain-source On Resistance-Max | 0.15 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | TO-263AB | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 245 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 170 W | |
| Pulsed Drain Current-Max (IDM) | 88 A | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
