STD16NF25 by: STMicroelectronics

Power Field-Effect Transistor, 13A I(D), 250V, 0.235ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET

Part Details for STD16NF25 by STMicroelectronics

Results Overview of STD16NF25 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Renewable Energy Medical Imaging Robotics and Drones

STD16NF25 Information

STD16NF25 by STMicroelectronics is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for STD16NF25

Part # Distributor Description Stock Price Buy
DISTI # 07AH6957
Newark Mosfet, N-Ch, 250V, 14A, 150Deg C, 85W, Channel Type:N Channel, Drain Source Voltage Vds:250V, Continuous Drain Current Id:14A, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:3V Rohs Compliant: Yes |Stmicroelectronics STD16NF25 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 473
  • 1 $2.7700
  • 10 $1.8900
  • 25 $1.7200
  • 50 $1.5500
  • 100 $1.3800
  • 250 $1.2700
  • 500 $1.1600
  • 1,000 $1.1500
$1.1500 / $2.7700 Buy Now
DISTI # 86AK6465
Newark Mosfet, N-Ch, 250V, 14A, To-252 Rohs Compliant: Yes |Stmicroelectronics STD16NF25 RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 1 Container: Tape & Reel 0
  • 2,500 $1.0500
  • 5,000 $1.0300
$1.0300 / $1.0500 Buy Now
DISTI # 497-7959-1-ND
DigiKey MOSFET N-CH 250V 14A DPAK Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) 4775
In Stock
  • 1 $2.4700
  • 10 $1.5870
  • 100 $1.0848
  • 500 $0.8697
  • 1,000 $0.8582
  • 2,500 $0.7258
  • 5,000 $0.7011
$0.7011 / $2.4700 Buy Now
DISTI # 07AH6957
Avnet Americas - Product that comes on tape, but is not reeled (Alt: 07AH6957) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack 473 Partner Stock
  • 1 $2.7600
  • 10 $1.8800
  • 25 $1.7100
  • 50 $1.5500
  • 100 $1.3800
  • 250 $1.2700
  • 500 $1.1600
$1.1600 / $2.7600 Buy Now
DISTI # STD16NF25
Avnet Americas - Tape and Reel (Alt: STD16NF25) COO: China RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days Container: Tape & Reel 0
  • 2,500 $0.7100
  • 5,000 $0.7055
  • 10,000 $0.6925
  • 20,000 $0.6799
  • 40,000 $0.6677
$0.6677 / $0.7100 Buy Now
DISTI # 511-STD16NF25
Mouser Electronics MOSFETs N-Channel 250V Pwr Mosfet RoHS: Compliant 1944
  • 1 $2.4700
  • 10 $1.5900
  • 100 $1.0900
  • 500 $0.8700
  • 1,000 $0.8450
  • 2,500 $0.7250
  • 5,000 $0.7010
$0.7010 / $2.4700 Buy Now
STMicroelectronics N-channel 250 V, 195 mOhm, 14 A STripFET II Power MOSFET in DPAK package COO: Singapore RoHS: Compliant Min Qty: 1 1944
  • 1 $2.4200
  • 10 $1.5600
  • 100 $1.0700
  • 500 $0.8500
$0.8500 / $2.4200 Buy Now
Future Electronics N-Channel 250 V 0.235 Ohm Surface Mount STripFET II Power MosFet - TO-252-3 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks Container: Reel 0
Reel
  • 2,500 $0.7700
  • 5,000 $0.7600
  • 7,500 $0.7500
  • 10,000 $0.7450
$0.7450 / $0.7700 Buy Now
DISTI # 85918564
Verical Trans MOSFET N-CH 250V 14A 3-Pin(2+Tab) DPAK T/R RoHS: Exempt Min Qty: 2500 Package Multiple: 2500 Date Code: 2440 Americas - 2500
  • 2,500 $0.6590
  • 5,000 $0.6453
$0.6453 / $0.6590 Buy Now
DISTI # STD16NF25
IBS Electronics N-CHANNEL 250 V 0.195 OHM 14 A STRIPFET(TM) II POWER MOSFET IN DPAK PACKAGE Min Qty: 1 Package Multiple: 1 0
  • 1 $1.0780
  • 5,000 $1.0640
  • 7,500 $1.0500
  • 10,000 $1.0430
$1.0430 / $1.0780 Buy Now
DISTI # STD16NF25
Avnet Silica (Alt: STD16NF25) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days Silica - 2500
Buy Now
DISTI # STD16NF25
EBV Elektronik (Alt: STD16NF25) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now

Part Details for STD16NF25

STD16NF25 CAD Models

  • Part Symbol

    schematic symbol

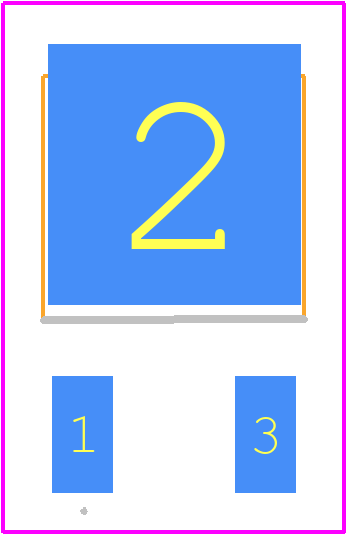

  • Footprint

    pcb footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STD16NF25 Part Data Attributes

Parametric Data
STD16NF25 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STD16NF25 STMicroelectronics Power Field-Effect Transistor, 13A I(D), 250V, 0.235ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET
Rohs Code Yes
Part Life Cycle Code Active
Package Description Rohs Compliant, Dpak-3
Pin Count 3
Reach Compliance Code Not Compliant
ECCN Code EAR99
Factory Lead Time 13 Weeks
Avalanche Energy Rating (Eas) 100 Mj
Case Connection Drain
Configuration Single With Built-In Diode
DS Breakdown Voltage-Min 250 V
Drain Current-Max (ID) 13 A
Drain-source On Resistance-Max 0.235 Ω
FET Technology Metal-Oxide Semiconductor
JESD-30 Code R-PSSO-G2
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 2
Operating Mode Enhancement Mode
Operating Temperature-Max 150 °C
Package Body Material Plastic/Epoxy
Package Shape Rectangular
Package Style Small Outline
Peak Reflow Temperature (Cel) 260
Polarity/Channel Type N-Channel
Power Dissipation-Max (Abs) 90 W
Pulsed Drain Current-Max (IDM) 52 A
Qualification Status Not Qualified
Surface Mount Yes
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Position Single
Time@Peak Reflow Temperature-Max (s) 30
Transistor Application Switching
Transistor Element Material Silicon
