Part Details for STGAP2GSC by STMicroelectronics
Results Overview of STGAP2GSC by STMicroelectronics
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
STGAP2GSC Information
STGAP2GSC by STMicroelectronics is an MOSFET Driver.
MOSFET Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for STGAP2GSC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-STGAP2GSC-ND
|
DigiKey | DIGITAL ISO 5KV 1CH GATE DVR 8SO Min Qty: 800 Container: Bulk |
0 Bulk |
|
$1.4692 | Buy Now |
|
DISTI #
STGAP2GSC
|
Avnet Americas | - Trays (Alt: STGAP2GSC) COO: Taiwan (Province of China) RoHS: Not Compliant Min Qty: 800 Package Multiple: 80 Lead time: 25 Weeks, 0 Days Container: Tray | 0 |
|
$1.2701 / $1.2963 | Buy Now |
|
DISTI #
511-STGAP2GSC
|
Mouser Electronics | Galvanically Isolated Gate Drivers Galvanically isolated 3 A single gate driver for Enhancement mode GaN FETs RoHS: Compliant | 0 |
|
$1.3900 / $1.4200 | Order Now |
|
|
Future Electronics | RoHS: Not Compliant pbFree: No Min Qty: 800 Package Multiple: 800 Lead time: 25 Weeks | 0 |
|
$1.2000 / $1.2200 | Buy Now |
US Tariff Estimator: STGAP2GSC by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
STGAP2GSC CAD Models
-
Part Symbol
-
Footprint
-

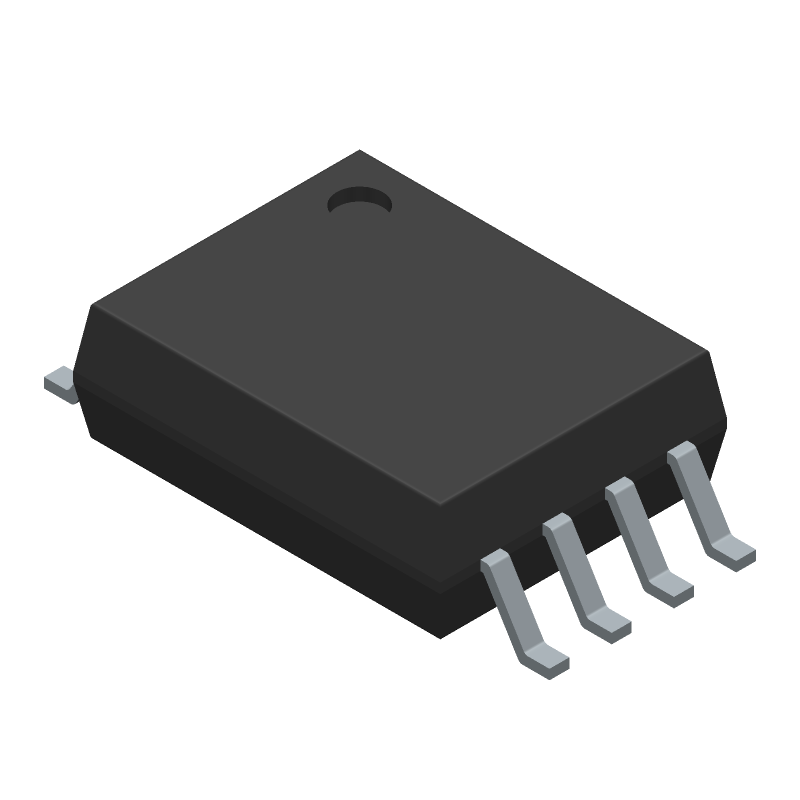

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
STGAP2GSC Part Data Attributes
|
|
STGAP2GSC
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STGAP2GSC
STMicroelectronics
Buffer/Inverter Based MOSFET Driver
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Factory Lead Time | 25 Weeks | |
| High Side Driver | Yes | |
| Input Characteristics | Standard | |
| Interface IC Type | Buffer Or Inverter Based Mosfet Driver | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 7.49 Mm | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Peak Current Limit-Nom | 3 A | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.4 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Seated Height-Max | 2.64 Mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3.1 V | |
| Supply Voltage-Nom | 5 V | |
| Supply Voltage1-Max | 13 V | |
| Supply Voltage1-Min | 4.8 V | |
| Supply Voltage1-Nom | 6 V | |
| Surface Mount | Yes | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Turn-off Time | 0.093 µS | |
| Turn-on Time | 0.093 µS | |
| Width | 5.845 Mm |
