STGAP2SICS Information
STGAP2SICS by STMicroelectronics is an MOSFET Driver.
MOSFET Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for STGAP2SICS
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
91AH9101
|
Newark | Mosfet Driver, -40 To 125Deg C Rohs Compliant: Yes |Stmicroelectronics STGAP2SICS RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$1.7800 / $3.1700 | Buy Now |
|
DISTI #
497-STGAP2SICS-ND
|
DigiKey | DIGITAL ISO 5KV 1CH GATE DVR 8SO Min Qty: 1 Lead time: 25 Weeks Container: Tube |
636 In Stock |
|
$1.6020 / $3.0800 | Buy Now |
|
DISTI #
STGAP2SICS
|
Avnet Americas | MOSFET Gate Driver 1200V 4A Single-Output Half-Bridge Non-Inverse 8-Pin WSOIC Tube - Rail/Tube (Alt: STGAP2SICS) COO: Italy RoHS: Not Compliant Min Qty: 800 Package Multiple: 800 Lead time: 25 Weeks, 0 Days Container: Tube | 0 |
|
$1.4849 / $1.6970 | Buy Now |
|
DISTI #
511-STGAP2SICS
|
Mouser Electronics | Galvanically Isolated Gate Drivers Galvanically isolated 4 A single gate driver for SiC MOSFETs RoHS: Compliant | 890 |
|
$1.6400 / $3.0800 | Buy Now |
|
DISTI #
V36:1790_24983928
|
Arrow Electronics | Driver 1-OUT Half Brdg 8-Pin SO W Tube COO: Taiwan RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 25 Weeks Date Code: 2221 | Americas - 7200 |
|
$1.4190 / $2.1260 | Buy Now |
|
DISTI #
E02:0323_16343109
|
Arrow Electronics | Driver 1-OUT Half Brdg 8-Pin SO W Tube COO: Taiwan RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 25 Weeks Date Code: 2222 | Europe - 565 |
|
$1.4004 | Buy Now |
|
DISTI #
V72:2272_24983928
|
Arrow Electronics | Driver 1-OUT Half Brdg 8-Pin SO W Tube COO: Taiwan RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 25 Weeks Date Code: 2221 Container: Cut Strips | Americas - 540 |
|
$2.1470 / $2.2910 | Buy Now |
|
|
STMicroelectronics | Galvanically isolated 4 A single gate driver for SiC MOSFETs COO: Italy RoHS: Compliant Min Qty: 1 | 890 |
|
$1.7000 / $3.0200 | Buy Now |
|
|
Future Electronics | 1 Channel 5.5 V 4 A 5000 Vrms SMT Galvanically Isolated Single Gate Driver -SO-8 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 25 Weeks Container: Tube | 250Tube |
|
$1.3700 / $1.4700 | Buy Now |
|
|
Future Electronics | 1 Channel 5.5 V 4 A 5000 Vrms SMT Galvanically Isolated Single Gate Driver -SO-8 RoHS: Compliant pbFree: Yes Min Qty: 800 Package Multiple: 80 Lead time: 25 Weeks Container: Tube | 0Tube |
|
$1.3700 / $1.4700 | Buy Now |
US Tariff Estimator: STGAP2SICS by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for STGAP2SICS
STGAP2SICS CAD Models
-

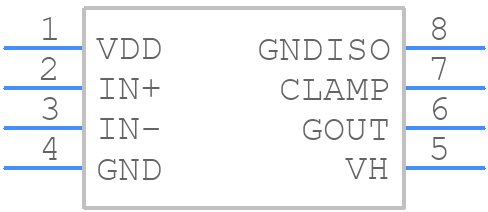

Part Symbol
-

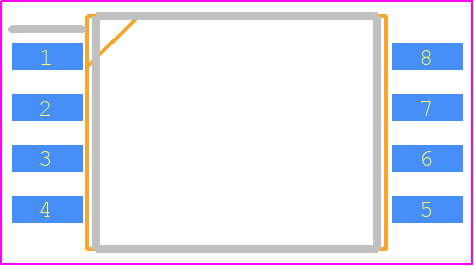

Footprint
-

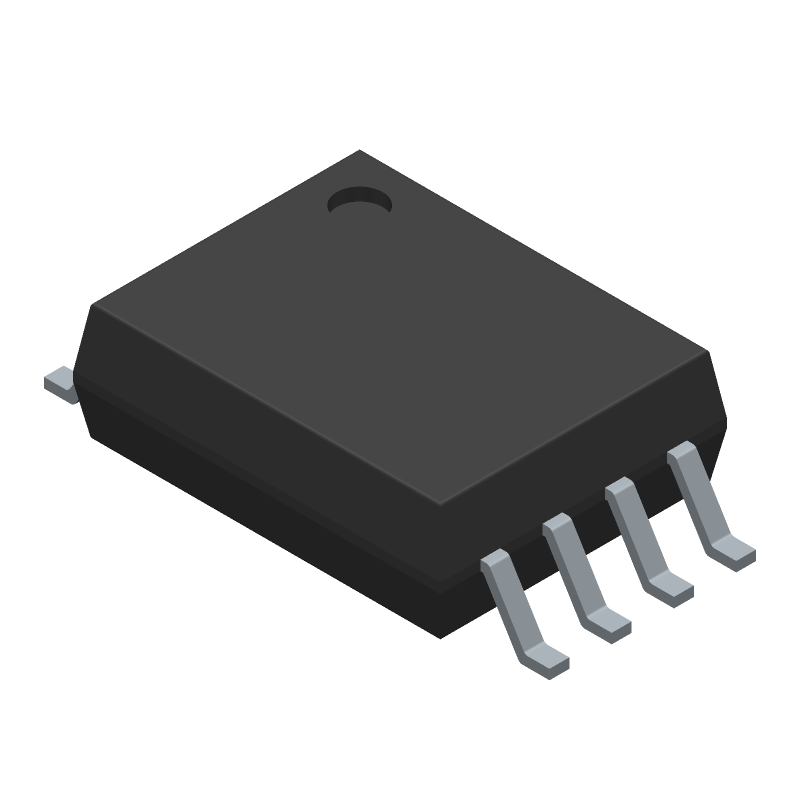

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
STGAP2SICS Part Data Attributes
|
|
STGAP2SICS
STMicroelectronics
Buy Now
|
Compare Parts:
STGAP2SICS
STMicroelectronics
Buffer/Inverter Based MOSFET Driver, 4A, PDSO8
|
| Part Life Cycle Code | Active | |
| Package Description | Sop, Sop8,.4 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 25 Weeks | |
| High Side Driver | Yes | |
| Input Characteristics | Standard | |
| Interface IC Type | Buffer Or Inverter Based Mosfet Driver | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 7.49 Mm | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Peak Current Limit-Nom | 4 A | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.4 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Seated Height-Max | 2.64 Mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3.1 V | |
| Supply Voltage-Nom | 5 V | |
| Supply Voltage1-Max | 26 V | |
| Supply Voltage1-Min | 16.4 V | |
| Supply Voltage1-Nom | 18 V | |
| Surface Mount | Yes | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Turn-off Time | 0.09 µS | |
| Turn-on Time | 0.09 µS | |
| Width | 5.845 Mm |
