Part Details for STGWA25IH135DF2 by STMicroelectronics

Results Overview of STGWA25IH135DF2 by STMicroelectronics

Distributor Offerings: (9 listings)
Number of FFF Equivalents: (0 replacements)
Tariff Estimator: (Not Available)
Number of Functional Equivalents: (0 options)

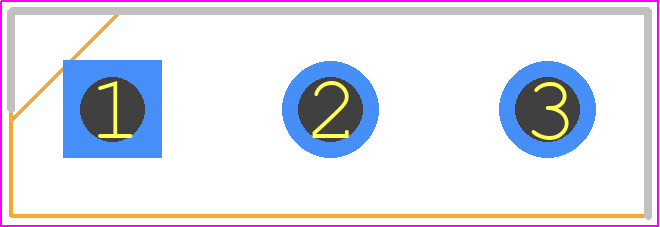

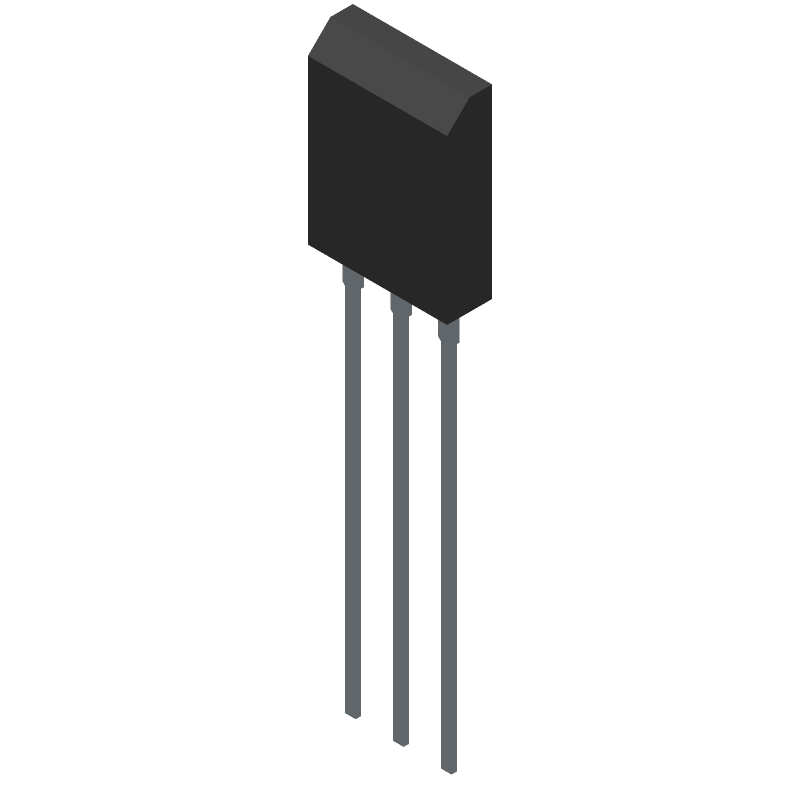

CAD Models: (Available)
Part Data Attributes: (Available)
Reference Designs: (Not Available)

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

STGWA25IH135DF2 Information

STGWA25IH135DF2 by STMicroelectronics is an IGBT.
IGBTs are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Part #	Distributor	Description	Stock	Price	Buy
STGWA25IH135DF2 DISTI # 01AM0674	Newark	Igbt, Single, 1.35Kv, 50A, To-247, Continuous Collector Current:50A, Collector Emitter Saturation Voltage:1.7V, Power Dissipation:340W, Collector Emitter Voltage Max:1.35Kv, No. Of Pins:3Pins, Operating Temperature Max:175°C Rohs Compliant: Yes \|Stmicroelectronics STGWA25IH135DF2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk	132	1 $4.5100 10 $3.8700 25 $3.6700 60 $3.4700 120 $3.2700 270 $3.0700	$3.0700 / $4.5100	Buy Now
STGWA25IH135DF2 DISTI # 497-STGWA25IH135DF2-ND	DigiKey	IGBT TRENCH FS 1350V 50A TO247 Min Qty: 1 Lead time: 14 Weeks Container: Tube	593 In Stock	1 $3.4600 10 $2.6000 30 $2.3493 120 $2.1255 270 $2.0297 510 $1.9684 1,020 $1.9130 2,520 $1.8551 5,010 $1.8200	$1.8200 / $3.4600	Buy Now
STGWA25IH135DF2 DISTI # STGWA25IH135DF2	Avnet Americas	- Rail/Tube (Alt: STGWA25IH135DF2) COO: Singapore RoHS: Not Compliant Min Qty: 600 Package Multiple: 600 Lead time: 14 Weeks, 0 Days Container: Tube	0	600 $1.9404 1,200 $1.8337 2,400 $1.7854 3,600 $1.7396 4,800 $1.7266	$1.7266 / $1.9404	Buy Now
STGWA25IH135DF2 DISTI # 01AM0674	Avnet Americas	- Bulk (Alt: 01AM0674) COO: Singapore RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk	0	1 $4.5000 10 $3.8600 25 $3.6600 60 $3.4600 120 $3.2600 270 $3.0600 510 $3.0200	$3.0200 / $4.5000	Buy Now
STGWA25IH135DF2 DISTI # 511-STGWA25IH135DF2	Mouser Electronics	IGBTs Trench gate field-stop 1350 V, 25 A, soft-switching IH2 series IGBT RoHS: Compliant	573	1 $3.4600 10 $2.8200 120 $2.0200 510 $1.9600 1,020 $1.8500 2,520 $1.7800	$1.7800 / $3.4600	Buy Now
STGWA25IH135DF2	STMicroelectronics	Trench gate field-stop 1350 V, 25 A, soft-switching IH2 series IGBT in a TO-247 long leads package COO: Singapore RoHS: Compliant Min Qty: 1	593	1 $3.3900 10 $2.7600 120 $1.9800	$1.9800 / $3.3900	Buy Now
STGWA25IH135DF2 DISTI # STGWA25IH135DF2	TME	Transistor: IGBT, 1.352kV, 25A, 340W, TO247-3 Min Qty: 1	0	1 $4.2000 3 $3.7700 10 $3.5000 30 $3.3400 120 $3.0000 600 $2.9000 1,200 $2.8000 3,000 $2.6000 9,000 $2.5000	$2.5000 / $4.2000	RFQ
STGWA25IH135DF2 DISTI # STGWA25IH135DF2	IBS Electronics	STGWA25IH135DF2 by ST MICROELECTRONICS is a 1350V, 25A IGBT with low VCE(sat), optimized for high-speed switching applications, featuring a fast recovery diode and low energy loss. Min Qty: 30 Package Multiple: 1	30	30 $2.5060 1,200 $2.4780 1,800 $2.4780 2,400 $2.4500	$2.4500 / $2.5060	Buy Now
STGWA25IH135DF2 DISTI # STGWA25IH135DF2	Avnet Silica	(Alt: STGWA25IH135DF2) RoHS: Compliant Min Qty: 30 Package Multiple: 30 Lead time: 15 Weeks, 0 Days	Silica - 1560			Buy Now
