Part Details for STM32F107VCT6 by STMicroelectronics
Results Overview of STM32F107VCT6 by STMicroelectronics
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (6 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Healthcare
Renewable Energy
Robotics and Drones
STM32F107VCT6 Information
STM32F107VCT6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STM32F107VCT6
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26R3021
|
Newark | Mcu, 32 Bit, 256Kb, 72Mhz, Lqfp-100, Product Range:Stm32 Family Stm32F1 Series Microcontrollers, Device Core:Arm Cortex-M3, Data Bus Width:32 Bit, Operating Frequency Max:72Mhz, Program Memory Size:256Kb, No. Of Pins:100Pins Rohs Compliant: Yes |Stmicroelectronics STM32F107VCT6 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 27696 |
|
$6.1700 / $9.6300 | Buy Now |
|
DISTI #
STM32F107VCT6
|
Avnet Americas | ARM MCU, Ethernet MAC, STM32 Family STM32F1 Series Microcontrollers, ARM Cortex-M3, 32 bit, 72 MHz - Trays (Alt: STM32F107VCT6) COO: Malaysia RoHS: Compliant Min Qty: 90 Package Multiple: 1 Lead time: 13 Weeks, 0 Days Container: Tray | 540 |
|
$5.5279 / $5.8964 | Buy Now |
|
DISTI #
26R3021
|
Avnet Americas | ARM MCU, Ethernet MAC, STM32 Family STM32F1 Series Microcontrollers, ARM Cortex-M3, 32 bit, 72 MHz - Bulk (Alt: 26R3021) COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk | 200 Partner Stock |
|
$6.1700 / $9.6300 | Buy Now |
|
|
STMicroelectronics | Mainstream Connectivity line, Arm Cortex-M3 MCU with 256 Kbytes of Flash memory, 72 MHz CPU, Ethernet MAC, CAN and USB 2.0 OTG COO: United States RoHS: Compliant Min Qty: 1 | 7200 |
|
$6.0500 / $9.4400 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 50 |
|
$4.4158 / $9.4618 | Buy Now |
|
DISTI #
STM32F107VCT6
|
TME | IC: STM32 ARM microcontroller, 72MHz, LQFP100, 2÷3.6VDC, STM32F1 Min Qty: 1 | 419 |
|
$8.5000 / $9.5000 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 2160 |
|
RFQ | |
|
DISTI #
STM32F107VCT6
|
Avnet Silica | ARM MCU Ethernet MAC STM32 Family STM32F1 Series Microcontrollers ARM CortexM3 32 bit 72 MHz (Alt: STM32F107VCT6) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 14 Weeks, 0 Days | Silica - 180 |
|
Buy Now | |
|
DISTI #
STM32F107VCT6
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tray | 390 |
|
$4.1700 / $5.6800 | Buy Now |
|
|
Chip Stock | STM32F107VCT6,32bitARMCortexM3Microcontroller,72MHz,256kbFlash,100-PinLQFP | 35362 |
|
RFQ |
US Tariff Estimator: STM32F107VCT6 by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for STM32F107VCT6
STM32F107VCT6 CAD Models
-

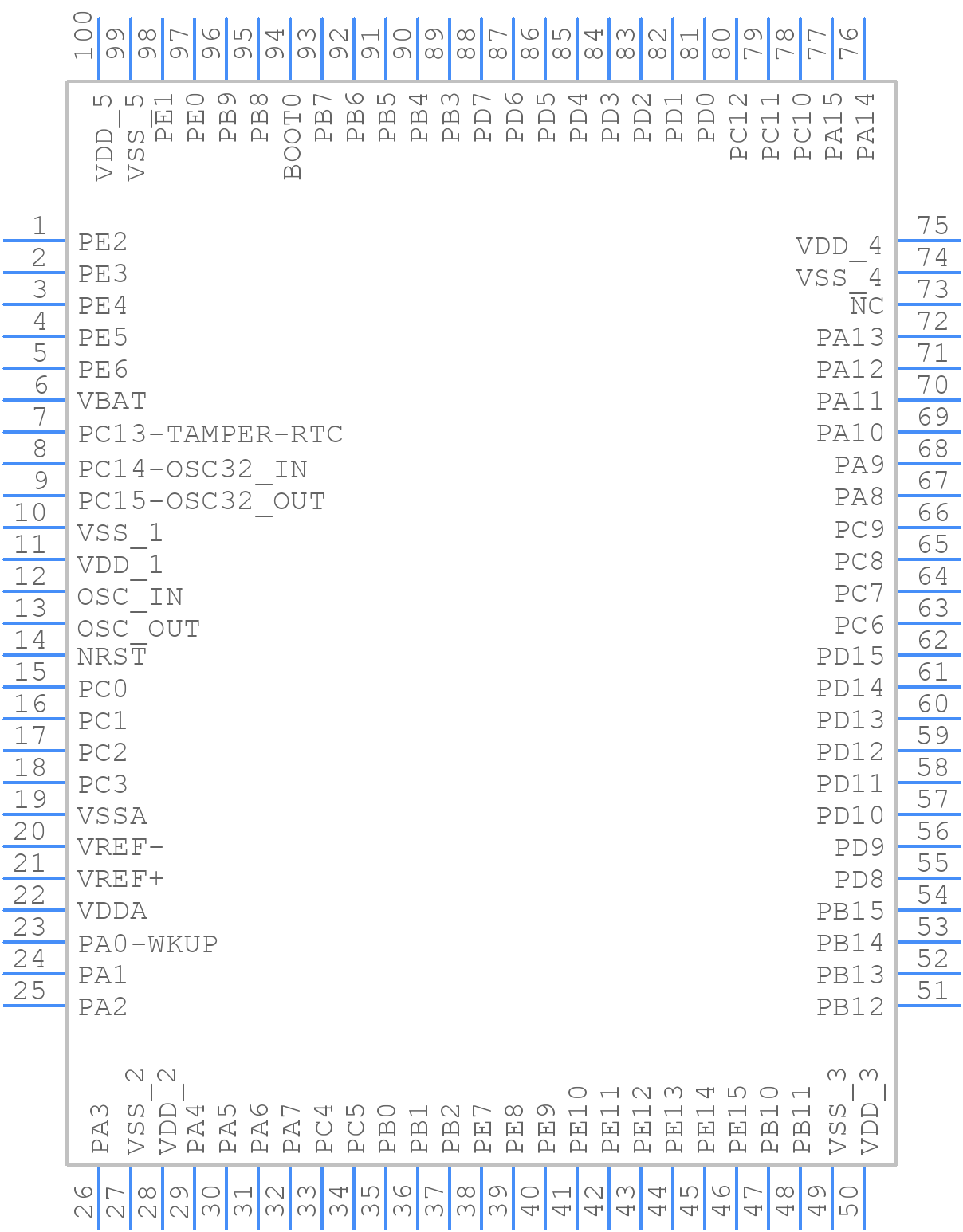

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
STM32F107VCT6 Part Data Attributes
|
|
STM32F107VCT6
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM32F107VCT6
STMicroelectronics
Mainstream Connectivity line, Arm Cortex-M3 MCU with 256 Kbytes of Flash memory, 72 MHz CPU, Ethernet MAC, CAN and USB 2.0 OTG
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | QFP | |
| Package Description | Lfqfp, Qfp100,.63sq,20 | |
| Pin Count | 100 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 13 Weeks | |
| Has ADC | Yes | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Boundary Scan | Yes | |
| CPU Family | Cortex-M3 | |
| Clock Frequency-Max | 50 Mhz | |
| DAC Channels | Yes | |
| DMA Channels | Yes | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G100 | |
| JESD-609 Code | e4 | |
| Length | 14 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 80 | |
| Number of Terminals | 100 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | Yes | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP100,.63SQ,20 | |
| Package Shape | Square | |
| Package Style | Flatpack, Low Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 65536 | |
| ROM (words) | 262144 | |
| ROM Programmability | Flash | |
| Seated Height-Max | 1.6 Mm | |
| Speed | 72 Mhz | |
| Supply Current-Max | 68 Ma | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3.3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 14 Mm | |
| uPs/uCs/Peripheral ICs Type | Microcontroller, Risc |
Alternate Parts for STM32F107VCT6
This table gives cross-reference parts and alternative options found for STM32F107VCT6. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F107VCT6, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| STM32F107VCT7XXXTR | STMicroelectronics | Check for Price | RISC MICROCONTROLLER | STM32F107VCT6 vs STM32F107VCT7XXXTR |
STM32F107VCT6 Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the STM32F107VCT6 is 72 MHz.
-
You can configure the clock settings using the Clock Control Register (RCC) and the Power Control Register (PWR). Refer to the STM32F107VCT6 datasheet and the STM32F1xx Standard Peripheral Library documentation for more information.
-
The BOOT0 and BOOT1 pins are used to select the boot mode of the microcontroller. BOOT0 is used to select between the internal flash and the system memory, while BOOT1 is used to select between the internal flash and the external memory.
-
The USART peripheral on the STM32F107VCT6 can be used for asynchronous communication. You need to configure the USART clock, mode, and baud rate using the USART_CR1, USART_CR2, and USART_BRR registers. Refer to the STM32F107VCT6 datasheet and the STM32F1xx Standard Peripheral Library documentation for more information.
-
The NVIC is used to handle interrupts generated by the peripherals. It allows you to prioritize interrupts, enable/disable interrupts, and handle interrupt requests.
