STM32L011F4U6TR by: STMicroelectronics

Ultra-low-power Arm Cortex-M0+ MCU with 16-Kbytes Flash, 32 MHz CPU

Part Details for STM32L011F4U6TR by STMicroelectronics

Results Overview of STM32L011F4U6TR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities

STM32L011F4U6TR Information

STM32L011F4U6TR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32L011F4U6TR

Part # Distributor Description Stock Price Buy
DISTI # 52AC7539
Newark Mcu, Arm Cortex-M0+, 32Mhz, Ufqfpn-20, Product Range:Arm Cortex-M0+ Microcontrollers, Architecture:Arm Cortex-M0+, No. Of Bits:32Bit, Cpu Speed:32Mhz, Program Memory Size:16Kb, Ram Memory Size:2Kb, No. Of Pins:20Pins, Mcu Case Rohs Compliant: Yes |Stmicroelectronics STM32L011F4U6TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 15656
  • 1 $1.5500
  • 10 $1.1300
  • 25 $1.0400
  • 50 $0.9710
  • 100 $0.9120
  • 250 $0.8570
  • 500 $0.8240
  • 1,000 $0.7970
$0.7970 / $1.5500 Buy Now
DISTI # 01AM0689
Newark Mcu, 32Bit, 32Mhz, Ufqfpn-20 Rohs Compliant: Yes |Stmicroelectronics STM32L011F4U6TR RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 3,000 $1.0900
  • 6,000 $1.0500
  • 12,000 $1.0100
$1.0100 / $1.0900 Buy Now
DISTI # STM32L011F4U6TR
Avnet Americas ARM MCU, ARM Cortex-M0+ Microcontrollers, ARM Cortex-M0+, 32 bit, 32 MHz, 16 KB, 20 Pins - Tape and Reel (Alt: STM32L011F4U6TR) COO: Philippines (the) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days Container: Reel 15000
  • 3,000 $0.7335
  • 6,000 $0.7191
  • 12,000 $0.7089
  • 24,000 $0.6990
  • 48,000 $0.6946
$0.6946 / $0.7335 Buy Now
STMicroelectronics Ultra-low-power Arm Cortex-M0+ MCU with 16-Kbytes Flash, 32 MHz CPU COO: France RoHS: Compliant Min Qty: 1 3071
  • 1 $1.5200
  • 10 $1.1100
  • 25 $1.0100
  • 100 $0.8900
  • 250 $0.8400
  • 500 $0.8100
$0.8100 / $1.5200 Buy Now
ComSIT USA ACCESS LINE ULTRA-LOW-POWER ARM-BASED CORTEX-M0+ 32-BIT MCU RISC Microcontroller, 32-Bit, 32MHz, CMOS ECCN: 3A991.A.2 RoHS: Compliant Stock DE - 3000
Stock ES - 0
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # STM32L011F4U6TR
Avnet Silica ARM MCU ARM CortexM0 Microcontrollers ARM CortexM0 32 bit 32 MHz 16 KB 20 Pins (Alt: STM32L011F4U6TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
Chip Stock MCU32-BitUltraLowPowerSTM32LARMCortexM0+RISC16kBFlash20-PinUFQFPNT/R 23600
RFQ
Component Electronics, Inc SMT T/R 570
  • 1 $1.5400
  • 100 $1.1500
  • 1,000 $1.0000
$1.0000 / $1.5400 Buy Now
DISTI # STM32L011F4U6TR
EBV Elektronik ARM MCU ARM CortexM0 Microcontrollers ARM CortexM0 32 bit 32 MHz 16 KB 20 Pins (Alt: STM32L011F4U6TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days EBV - 0
Buy Now
Greenchips   Date Code: 20+/PH 32
  • 1 $0.5714
  • 100 $0.5442
  • 1,000 $0.5182
  • 10,000 $0.4677
$0.4677 / $0.5714 Buy Now
LCSC ARM Cortex-M Series 32MHz 16 UFQFPN-20(3x3) Microcontrollers RoHS 19540
  • 1 $0.9865
  • 10 $0.8956
  • 30 $0.8463
  • 100 $0.7076
  • 500 $0.6829
  • 1,000 $0.6706
$0.6706 / $0.9865 Buy Now
Win Source Electronics IC MCU 32BIT 16KB FLASH 20UFQFPN 23000
  • 55 $0.9716
  • 130 $0.7973
  • 195 $0.7723
  • 270 $0.7474
  • 350 $0.7225
  • 465 $0.6478
$0.6478 / $0.9716 Buy Now

US Tariff Estimator: STM32L011F4U6TR by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32L011F4U6TR
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32L011F4U6TR

STM32L011F4U6TR Part Data Attributes

Parametric Data
STM32L011F4U6TR STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32L011F4U6TR STMicroelectronics Ultra-low-power Arm Cortex-M0+ MCU with 16-Kbytes Flash, 32 MHz CPU
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Package Description VQCCN, LCC20,.12SQ,20

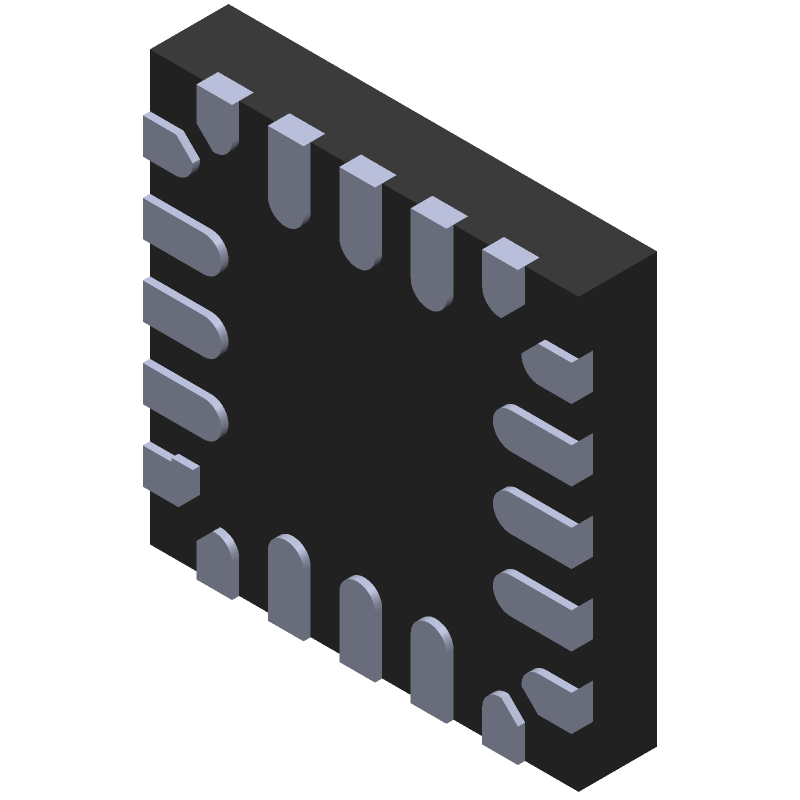

Manufacturer Package Code UFQFPN 20 3x3x0.6
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
Boundary Scan NO
CPU Family CORTEX-M0
Clock Frequency-Max 32 MHz
DAC Channels NO
DMA Channels YES
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-XQCC-N20
JESD-609 Code e4
Length 3 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of DMA Channels 5
Number of External Interrupts 16
Number of I/O Lines 16
Number of Serial I/Os 2
Number of Terminals 20
Number of Timers 4
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material UNSPECIFIED
Package Code VQCCN
Package Equivalence Code LCC20,.12SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
RAM (bytes) 2048
ROM (words) 16384
ROM Programmability FLASH
Seated Height-Max 0.6 mm
Speed 32 MHz
Supply Current-Max 6.5 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Terminal Finish Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Width 3 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for STM32L011F4U6TR

This table gives cross-reference parts and alternative options found for STM32L011F4U6TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32L011F4U6TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32L011F4U3TR STMicroelectronics $1.1195 Ultra-low-power Arm Cortex-M0+ MCU with 16-Kbytes Flash, 32 MHz CPU STM32L011F4U6TR vs STM32L011F4U3TR
STM32L011F4U7TR STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L011F4U6TR vs STM32L011F4U7TR
STM32L011F4U7 STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L011F4U6TR vs STM32L011F4U7
STM32L011F4U6 STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L011F4U6TR vs STM32L011F4U6
STM32L011F4U3 STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L011F4U6TR vs STM32L011F4U3
equivalents icon

STM32L011F4U6TR Related Parts

STM32L011F4U6TR Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32L011F4U6TR is 32 MHz.

  • The STM32L011F4U6TR has 16 KB of flash memory.

  • The power consumption of the STM32L011F4U6TR in low-power mode (Stop mode) is approximately 350 nA.

  • No, the STM32L011F4U6TR does not have a built-in USB interface.

  • Yes, the STM32L011F4U6TR can operate at 1.8V, but it is not recommended as it may affect the device's performance and reliability.
